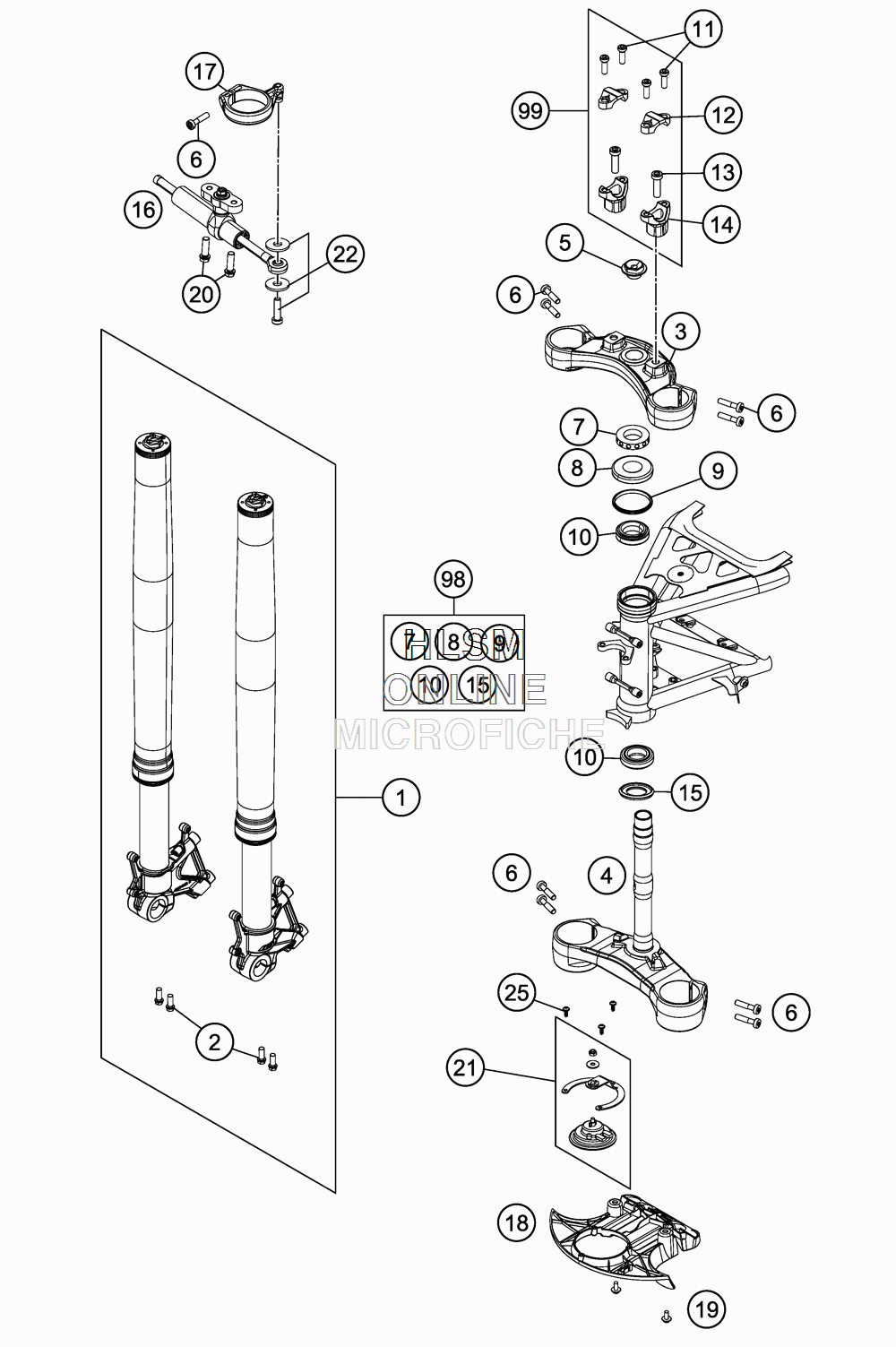

FRONT FORK TRIPLE CLAMP для Ktm 1190 ADVENTURE R ABS - 2016 года выпуска
-
№АртикулНазвание
-
114188N2501 FRONT FORK ADVENTURE R 2014FRONT FORK ADVENTURE R 2014
-
20025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
36030103403233S TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
46030103203233S BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
56030103600001 STEER.HEAD SCREW M22X1,5 SW27STEER.HEAD SCREW M22X1,5 SW27
-
60035080356 AH-COLLAR SCREW M8X35 ISA45AH-COLLAR SCREW M8X35 ISA45
-
757301036100 STEER.HEAD NUTSTEER.HEAD NUT
-
861001086000 STEERING HEAD COVERSTEERING HEAD COVER
-
954601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1054201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
110025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
127720103800030 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
130032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
145940103903730 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
1577701084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
1616181N53ES STEERING DAMPER CPL.STEERING DAMPER CPL.
-
176031200700033S CLAMP STEERING DAMPERCLAMP STEERING DAMPER
-
1860308024200 TRIPLECLAMP-FACEPLATE BELOWTRIPLECLAMP-FACEPLATE BELOW
-
190024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
200025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
2160311060100 HORNHORN
-
22R14038 REPAIR-KIT STEERING DAMPERREPAIR-KIT STEERING DAMPER
-
250081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
9860301081010 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9900050000927 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
