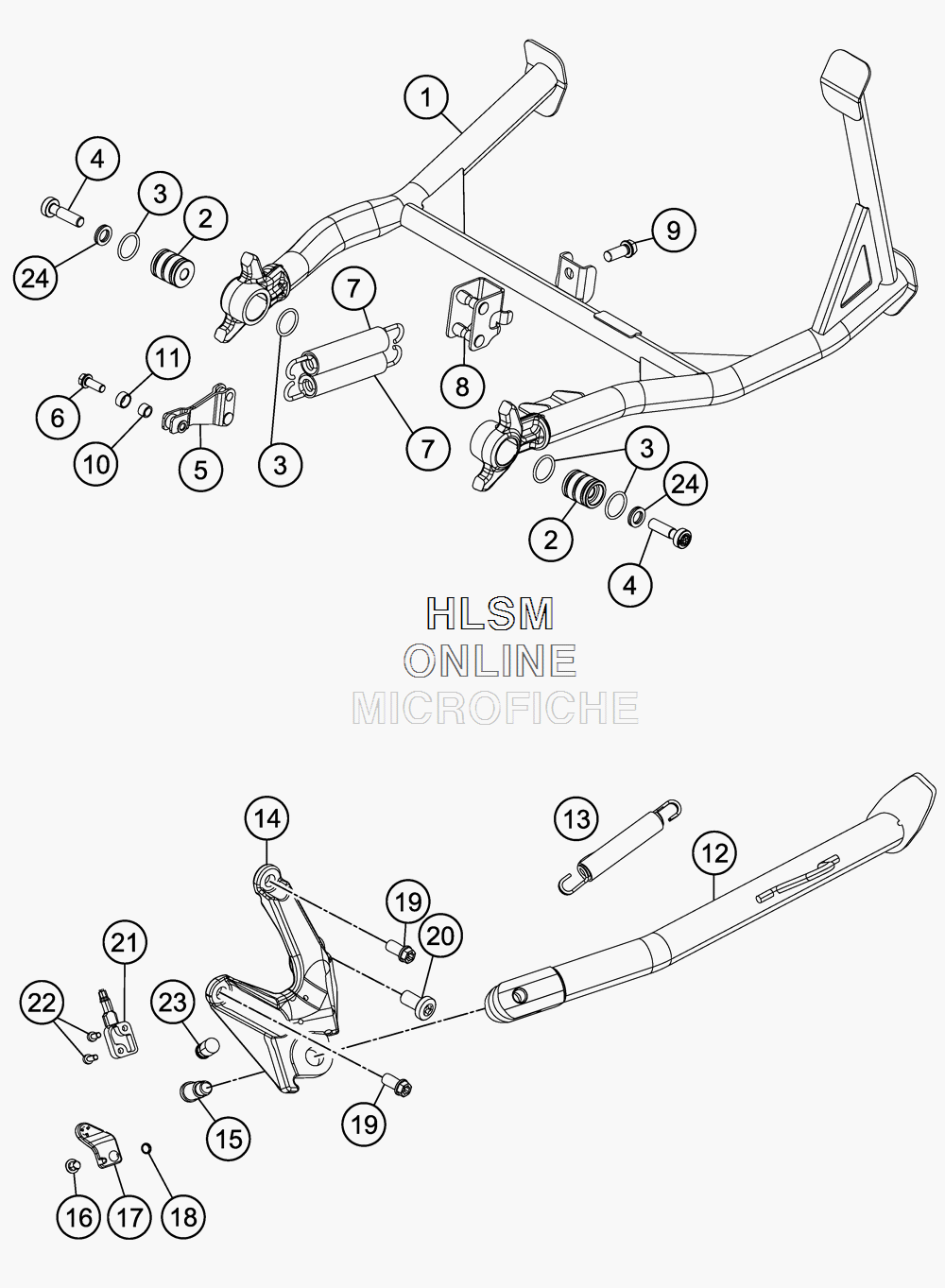

SIDE/CENTER STAND для Ktm 1190 ADVENTURE R ABS - 2016 года выпуска
-
№АртикулНазвание
-
16030302210033 MAIN STANDMAIN STAND
-
260303022007 BUSHING SUPPORT CENTRALBUSHING SUPPORT CENTRAL
-
30770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
40035080356S SCREW M8X35 ISA45 SSSCREW M8X35 ISA45 SS
-
560303022025 SPRING SUPPORT FRONT CPL.SPRING SUPPORT FRONT CPL.
-
60025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
760303030100 SIDESTAND SPRING L=118MMSIDESTAND SPRING L=118MM
-
860303022026 SPRING SUPPORT REAR CPL.SPRING SUPPORT REAR CPL.
-
90025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
1060303022031 BUSHING SPRINGSUPPORT FRONTBUSHING SPRINGSUPPORT FRONT
-
1160303022032 BUSHING SPRING SUPPORT FRONTBUSHING SPRING SUPPORT FRONT
-
126030302310033 SIDE STAND CPL.SIDE STAND CPL.
-
1360303024100 SIDE STAND SPRINGSIDE STAND SPRING
-
146030302610033S SIDE STAND BRACKETSIDE STAND BRACKET
-
1562503027200 SCREW FOR SIDE STAND M10X31,2SCREW FOR SIDE STAND M10X31,2
-
160902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1760303029050 MAGNET HOLDERMAGNET HOLDER
-
1860303029051 BUSHING MAGNET HOLDERBUSHING MAGNET HOLDER
-
190025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
200035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
2161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
220084040123 CYL.HEAD SCREW DIN84A M4X12CYL.HEAD SCREW DIN84A M4X12
-
2360303023111 RETAINING BOLTRETAINING BOLT
-
2460303022035 NORDLOCK WASHERS M8NORDLOCK WASHERS M8
