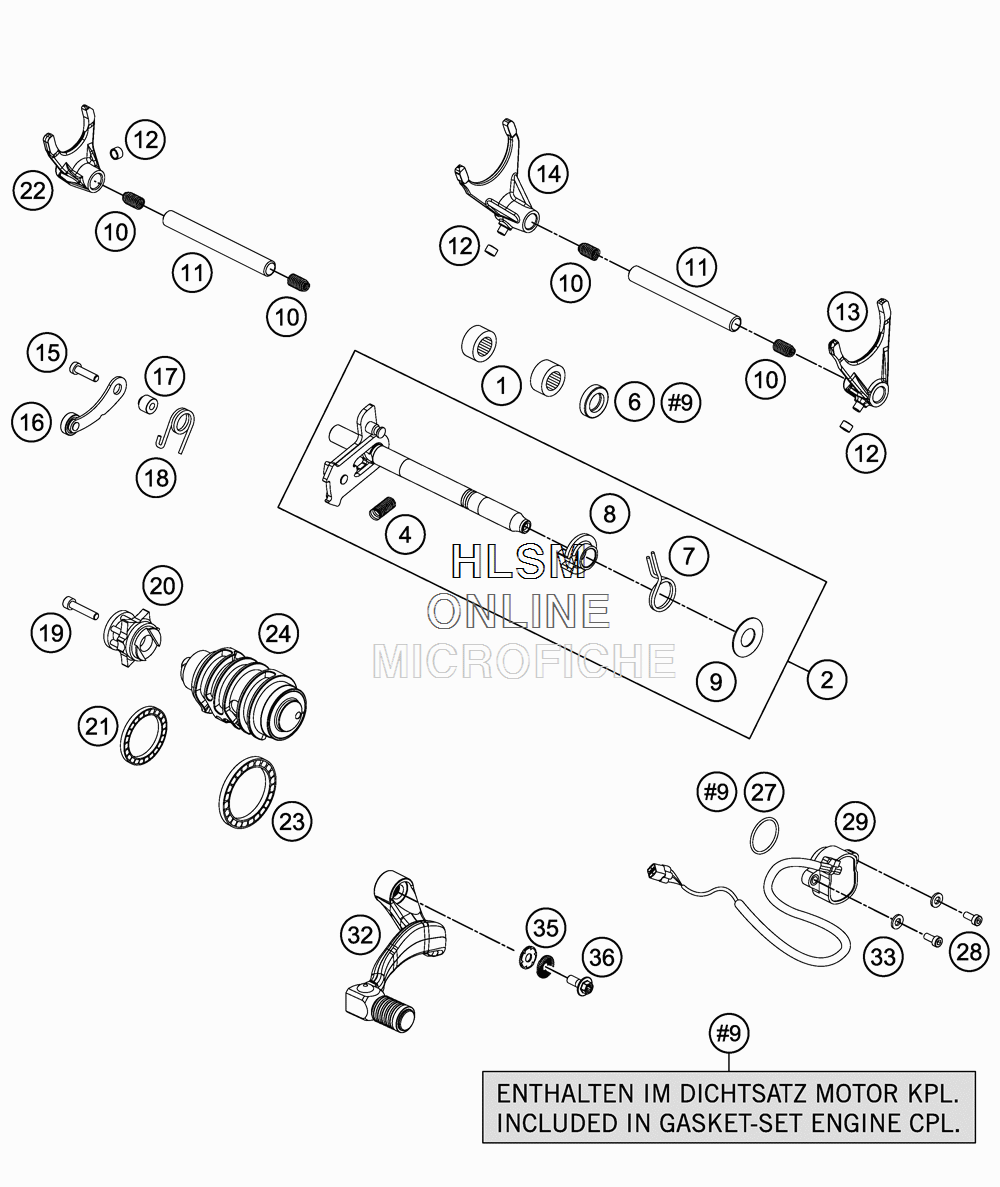

SHIFTING MECHANISM для Ktm 1190 ADVENTURE R ABS - 2016 года выпуска
-
№АртикулНазвание
-
154632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
261234005333 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
456534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
60760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
761234014000 RETURNSPRING 2MMRETURNSPRING 2MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
954634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
1058038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1159034020000 SHIFT RAIL 11,8X105MMSHIFT RAIL 11,8X105MM
-
1250334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1361234002100 SHIFT FORK 2-3 GEARSHIFT FORK 2-3 GEAR
-
1461234001000 SHIFTING FORKSHIFTING FORK
-
150024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1675034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1775034052000 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
1861234023000 SPRING - LOCKING LEVERSPRING - LOCKING LEVER
-
190912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
2061234015444 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
210625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2261234003200 SHIFT FORK 5-6 GEARSHIFT FORK 5-6 GEAR
-
230625068080 GROOVED BALL BEARING 6808 JRC3GROOVED BALL BEARING 6808 JRC3
-
2460334012100 SHIFTING DRUM CPL.SHIFTING DRUM CPL.
-
2707700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
280984050163S CYL. SCREW DIN6912 M5X16 8.8CYL. SCREW DIN6912 M5X16 8.8
-
2960211023100 GEAR-POSITION SENSORGEAR-POSITION SENSOR
-
326003403104433S SHIFTING LEVER CPL.SHIFTING LEVER CPL.
-
330125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
3550233041500 NORDLOCK WASHER M6NORDLOCK WASHER M6
-
360024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
