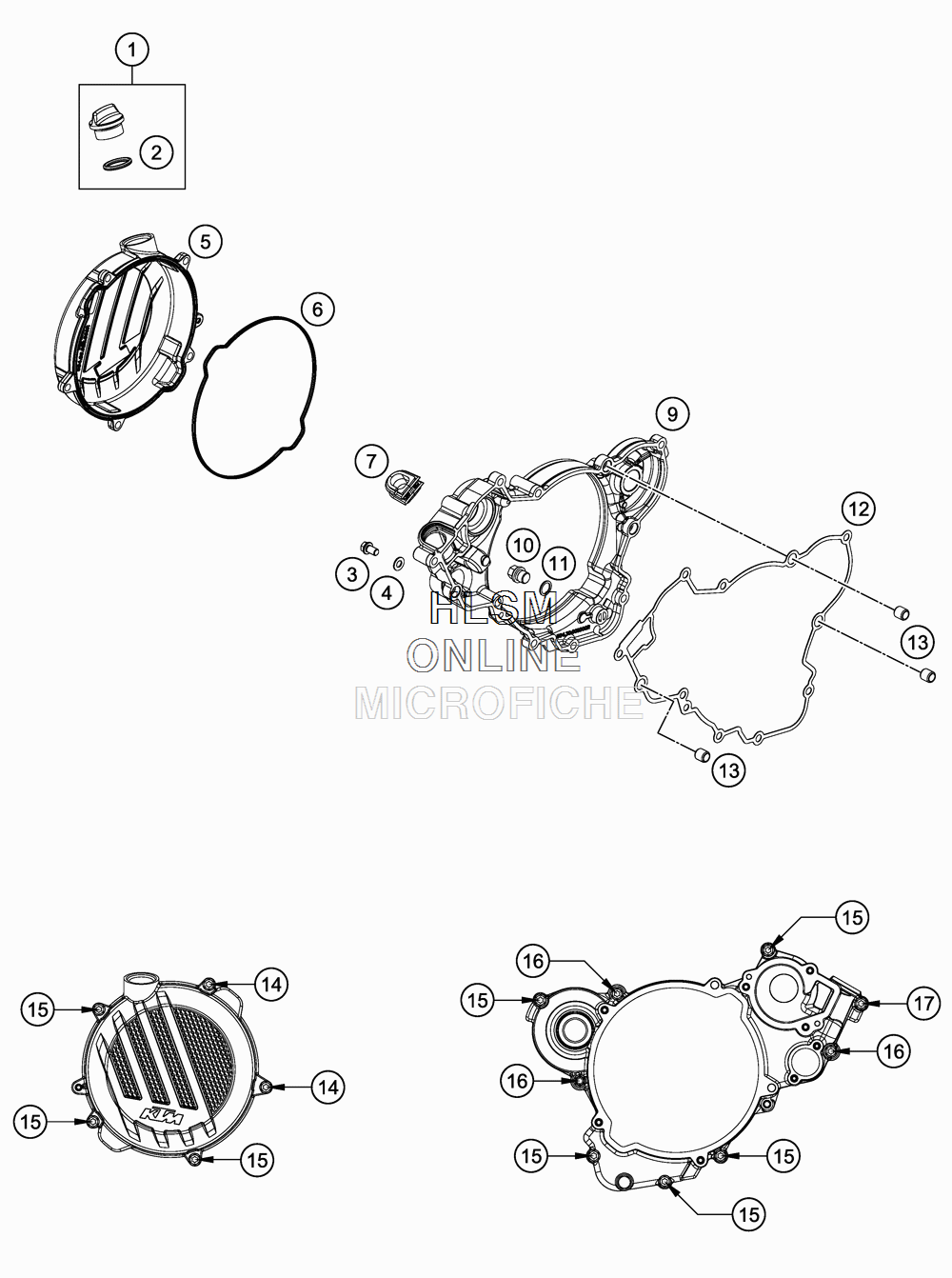

CLUTCH COVER для Ktm 150 SX - 2016 года выпуска
-
№АртикулНазвание
-
179430020033 OIL FILLER CAPOIL FILLER CAP
-
20770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
30025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
40603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
55043002600015 OUTER CLUTCHOUTER CLUTCH
-
650430027000 GASKET OUTER CLUTCHGASKET OUTER CLUTCH
-
750437091000 SEALING ELEMENTSEALING ELEMENT
-
950430001044 INNER CLUTCH COVERINNER CLUTCH COVER
-
100910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
110603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1250430025000 GASKET INNER CLUTCHGASKET INNER CLUTCH
-
1349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
140025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
170025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
