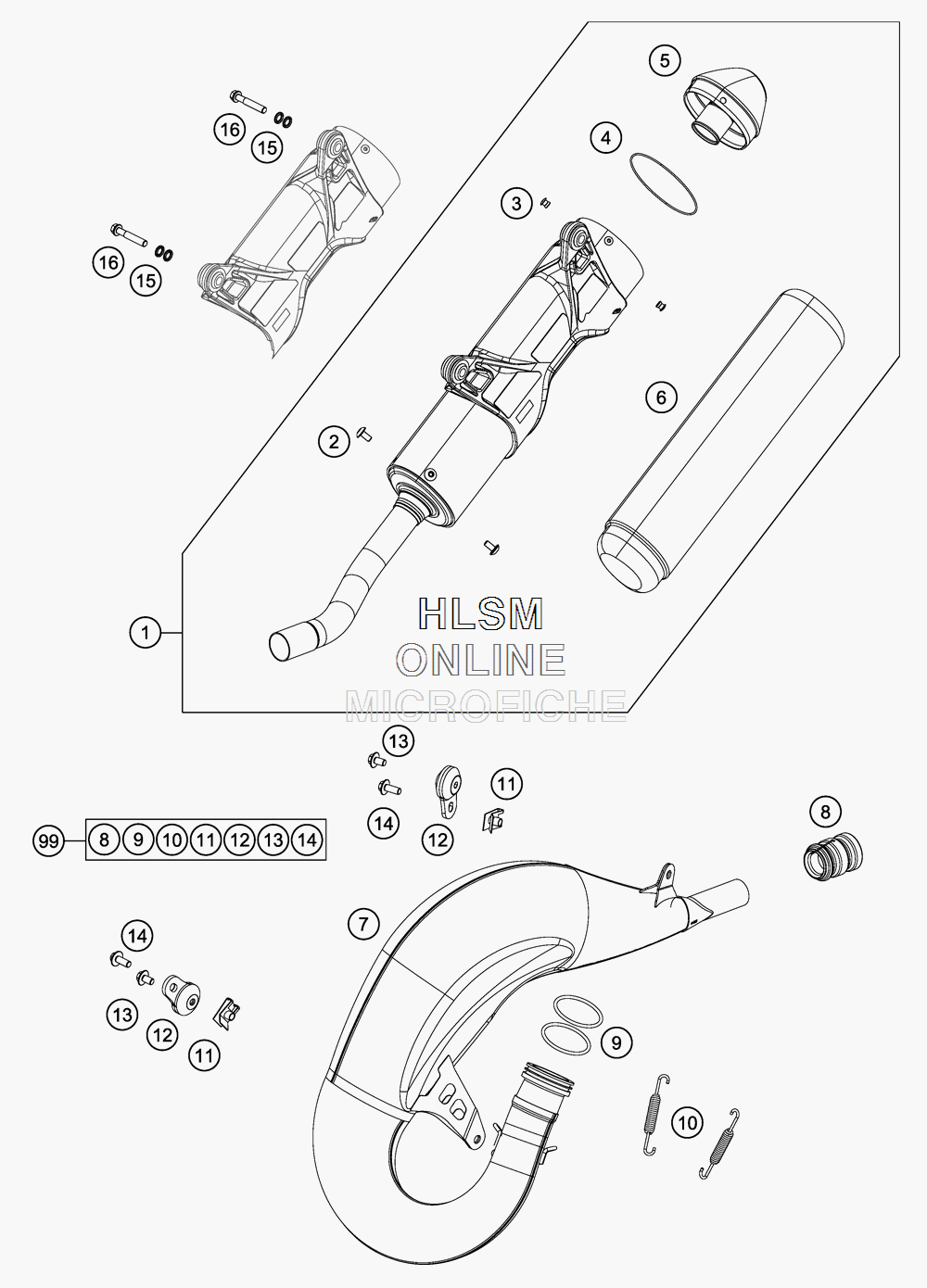

EXHAUST SYSTEM для Ktm 150 SX - 2016 года выпуска
-
№АртикулНазвание
-
278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
30011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
40770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
550305083260 END CAP CPL.END CAP CPL.
-
650405078220 ROCK WOOL 220GROCK WOOL 220G
-
750405007100 EXHAUST PIPEEXHAUST PIPE
-
854605057000 RUBBER SLEEVE D=21MM/23MMRUBBER SLEEVE D=21MM/23MM
-
90770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
1050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
1154603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1250305012000 SWING ELEMENT FOR EXHAUST PIPESWING ELEMENT FOR EXHAUST PIPE
-
130024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
140024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
1550233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
160025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
9900050000810 EXHAUST HARDWARE KITEXHAUST HARDWARE KIT
