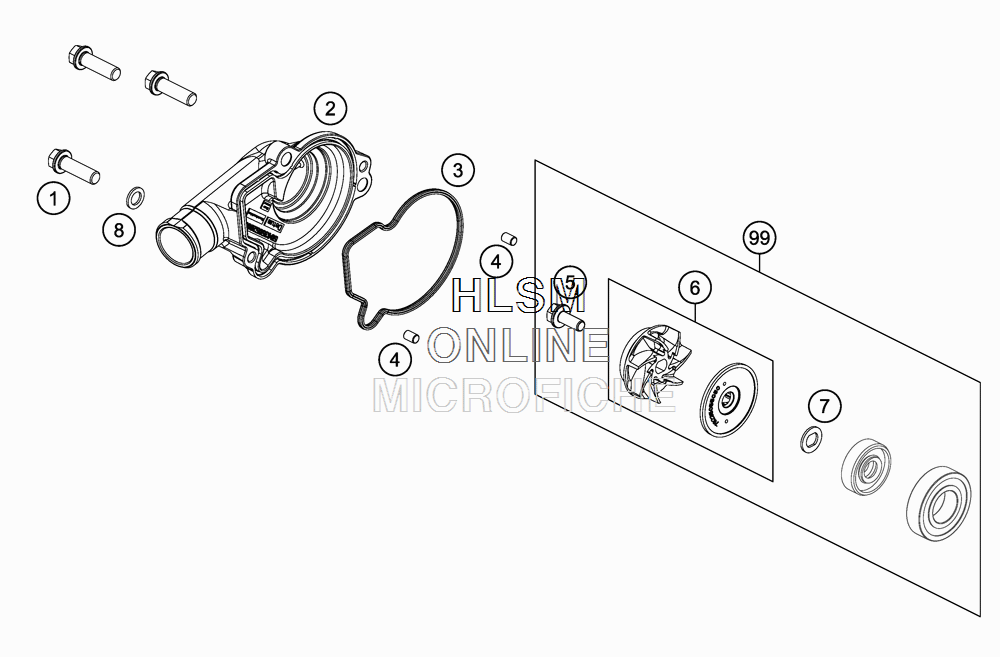

WATER PUMP для Ktm 150 SX - 2016 года выпуска
-
№АртикулНазвание
-
10025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
250435052000 WATER PUMPWATER PUMP
-
350435053000 GASKET WATER PUMPGASKET WATER PUMP
-
40402040600 NEEDLE ROOLER DIN5402 NRB 4X6NEEDLE ROOLER DIN5402 NRB 4X6
-
50014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
679235055044 WATER PUMP WHEEL CPL.WATER PUMP WHEEL CPL.
-
750435049000 PREFORMED WASHERPREFORMED WASHER
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
9950435055015 WATER PUMP KITWATER PUMP KIT
