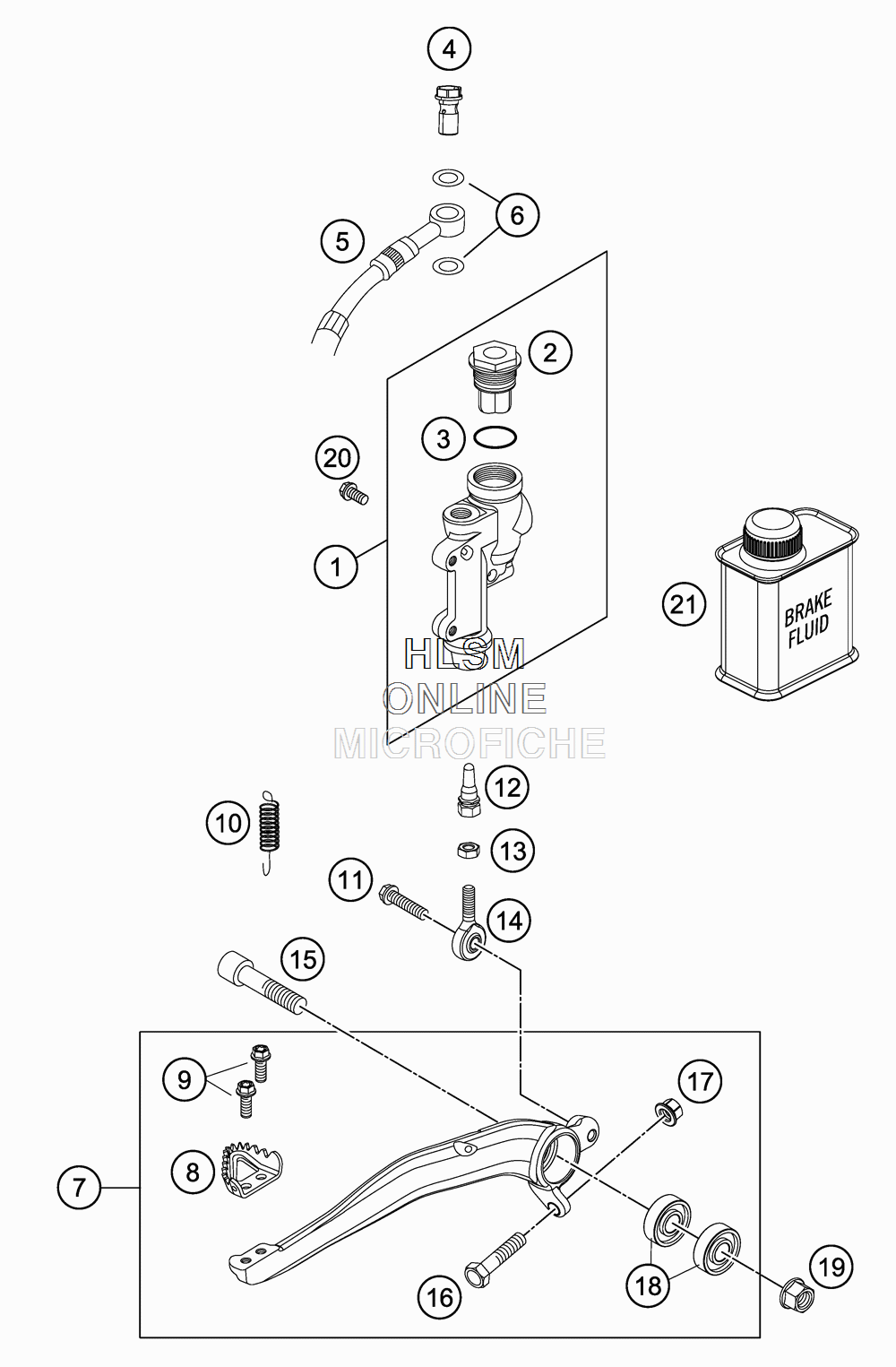

REAR BRAKE CONTROL для Ktm 200 XCW - 2016 года выпуска
-
№АртикулНазвание
-
177013060044 REAR BRAKE CYLINDER CPL.REAR BRAKE CYLINDER CPL.
-
254813062100 REAR BRAKE CYL. COVER CPL.REAR BRAKE CYL. COVER CPL.
-
354813063000 FOOT-BRAKE CYL. GASKETFOOT-BRAKE CYL. GASKET
-
454813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
554813070100 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
60603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
778013050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
854813051000 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
90025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
1054603062100 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
110025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1254813056000 PUSH ROD L=28MMPUSH ROD L=28MM
-
130985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
1454813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
150032100406S AH-COLLAR SCREW M10X40 ISA45AH-COLLAR SCREW M10X40 ISA45
-
1659001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
1746030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
180625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
1954630044000 COLLAR NUT M10COLLAR NUT M10
-
200025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
2100062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
