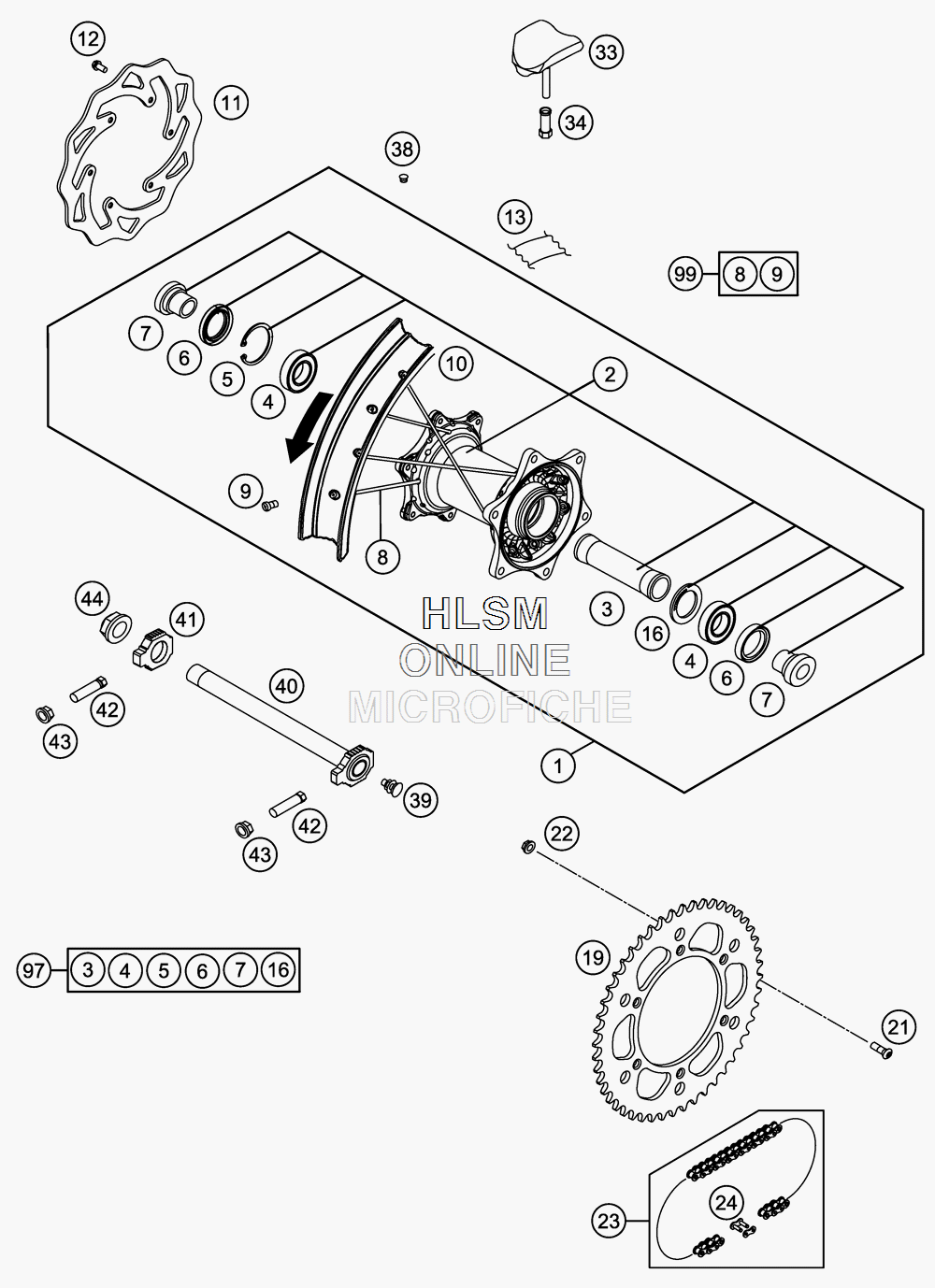

REAR WHEEL для Ktm 200 XCW - 2016 года выпуска
-
№АртикулНазвание
-
17811000104430 REAR WHEEL 2,15X18" (BLACK) SDREAR WHEEL 2,15X18" (BLACK) SD
-
278010010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
377710011000 BEARING DISTANCE TUBE 121,5MMBEARING DISTANCE TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
778010016000 BUSHING FOR HUBBUSHING FOR HUB
-
87711007119330 SPOKE M4,5X193- 18" (BLACK)SPOKE M4,5X193- 18" (BLACK)
-
977109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
107811007000030 RIM REAR 2,15X18" (BLACK)RIM REAR 2,15X18" (BLACK)
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1578010015010 REAR WHEEL REPREAR WHEEL REP
-
1677710015000 DISTANCE RINGDISTANCE RING
-
195831015104504 REAR SPROCKET 45T (ORANGE)REAR SPROCKET 45T (ORANGE)
-
197771015104804 REAR SPROCKET 48T (ORANGE)REAR SPROCKET 48T (ORANGE)
-
197771015105004 REAR SPROCKET 50T (ORANGE)REAR SPROCKET 50T (ORANGE)
-
197771015105204 REAR SPROCKET 52T (ORANGE)REAR SPROCKET 52T (ORANGE)
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8HEXAGON NUT DIN EN1661 M8
-
2378010167118 CHAIN DID 118 ROLLSCHAIN DID 118 ROLLS
-
2478010166000 CONNECTING LINK F. 78010167118CONNECTING LINK F. 78010167118
-
3378110090000 RIM LOCK 2,15"RIM LOCK 2,15"
-
3477110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
9900050000958 SPOKE KIT REAR 18" (BLACK)SPOKE KIT REAR 18" (BLACK)
