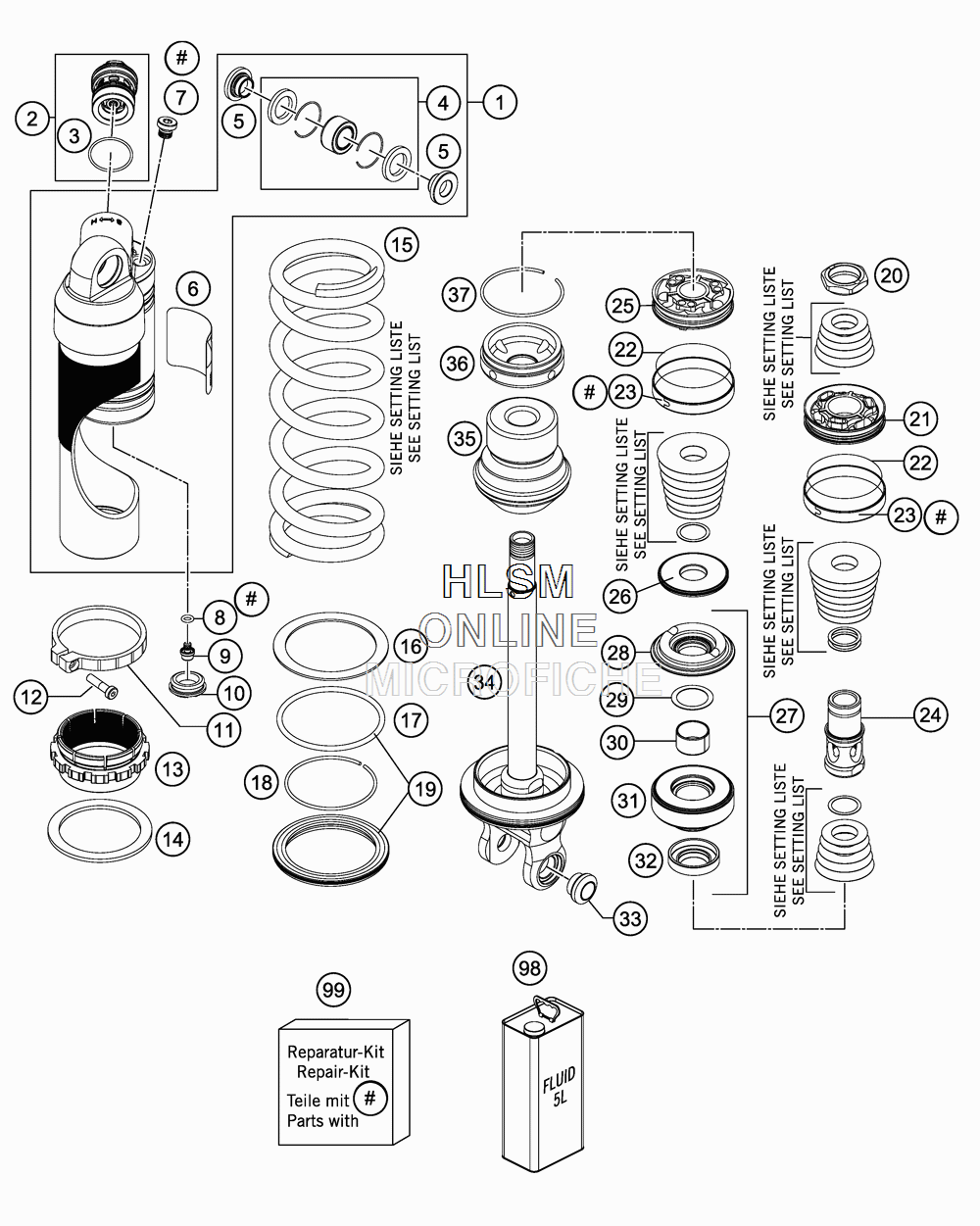

SHOCK ABSORBER DISASSEMBLED для Ktm 200 XCW - 2016 года выпуска
-
№АртикулНазвание
-
150180833SA2 MONOSHOCK UPPER PART CPL.MONOSHOCK UPPER PART CPL.
-
250180213S10 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
350180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
546180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
652000085 WP CAUTION (PDS KTM)WP CAUTION (PDS KTM)
-
750180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
846810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
936120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1046811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1150180937 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
1214460042 ALLENHEAD SCREW M5 L=20 STAINALLENHEAD SCREW M5 L=20 STAIN
-
1350180938 ADJUSTING NUT PLASTICADJUSTING NUT PLASTIC
-
1450180965 SPACER RING SPRING 61,3X78X3SPACER RING SPRING 61,3X78X3
-
1591210053S SPRING 250 63N/MM (ORANGE)SPRING 250 63N/MM (ORANGE)
-
1591210054S SPRING 250 66N/MM (ORANGE)SPRING 250 66N/MM (ORANGE)
-
1591210068S SPRING 250 69N/MM (ORANGE)SPRING 250 69N/MM (ORANGE)
-
1650180114 SPACER RING FOR SPRINGSPACER RING FOR SPRING
-
1750180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
1850180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
1950180463S SPRING RET. D=80 W. O-RINGSPRING RET. D=80 W. O-RING
-
2050180627 PISTON ROD NUT M20X1PISTON ROD NUT M20X1
-
2150180675 PISTON D=20PISTON D=20
-
2250180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
2350180135 PISTON RING 50-8PISTON RING 50-8
-
2450180973 SUPPORT D20 M20X1 L51,3 PDSSUPPORT D20 M20X1 L51,3 PDS
-
2550180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
2650180970 REBOUND DISC D43REBOUND DISC D43
-
2750180953S1 ADAPTOR CPL. D=50 H=25ADAPTOR CPL. D=50 H=25
-
2850180993 MONO GASKET D50 PDSMONO GASKET D50 PDS
-
2950180995 SHIM D25,30 X D19 X T0,4SHIM D25,30 X D19 X T0,4
-
3046180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
3150180953 SUPPORT D50SUPPORT D50
-
3250180994 DUST SEAL D18 (RED)DUST SEAL D18 (RED)
-
3350180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
3450180512S1 MONOSHOCK LOWER PART CPL.MONOSHOCK LOWER PART CPL.
-
3550180600 BUMP RUBBER D58 D17 H59BUMP RUBBER D58 D17 H59
-
3650180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
3750180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12024 REPAIR KITREPAIR KIT
