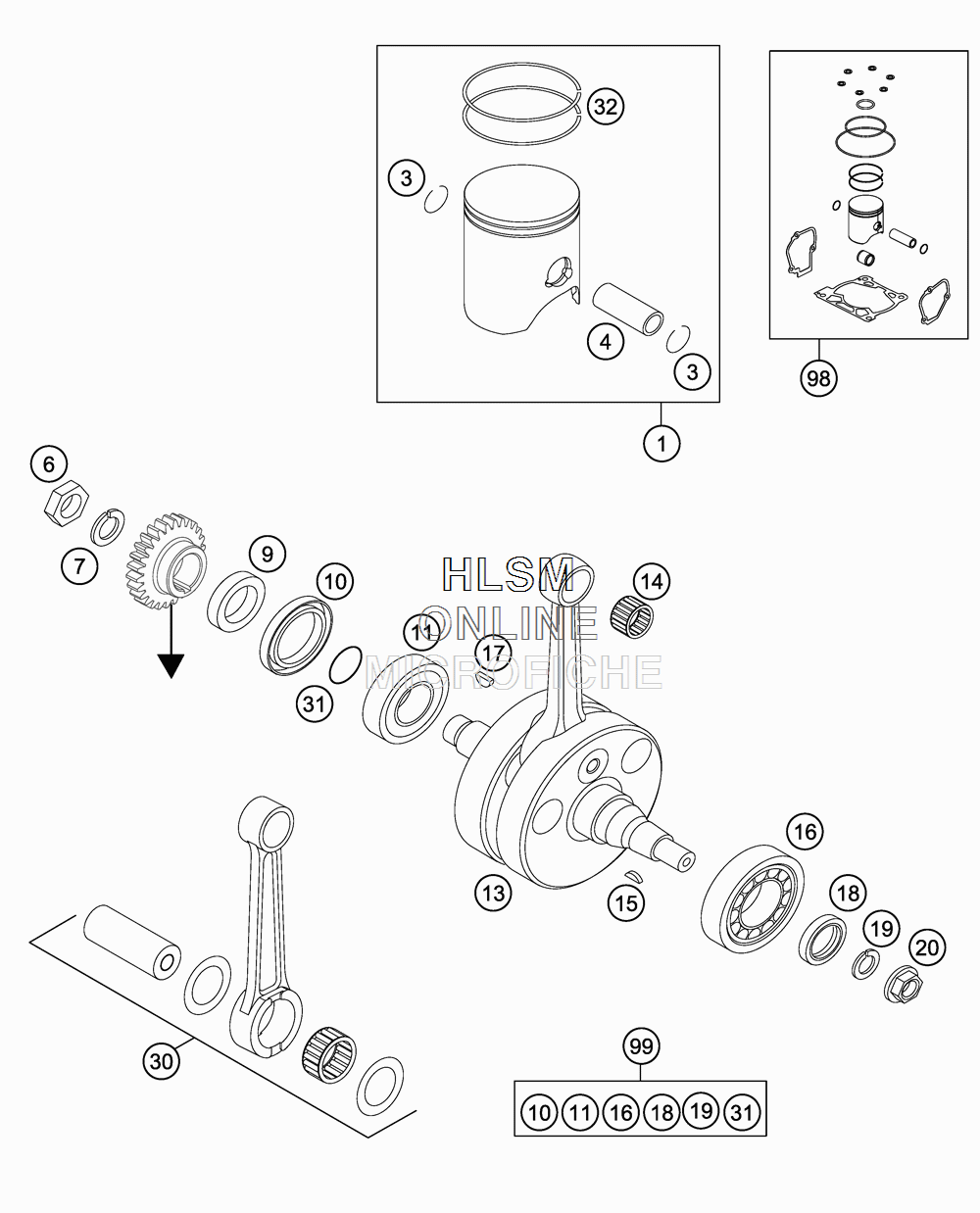

CRANKSHAFT PISTON для Ktm 250 XC - 2016 года выпуска

№

Артикул

Название
1

54830007300I PISTON I

PISTON I

74 470 ₽
1

54830007300II PISTON II

PISTON II

74 470 ₽
3

54030074000 WIRE LOCK RING C18X1,5

WIRE LOCK RING C18X1,5

620 ₽
4

54830233000 PISTON PIN

PISTON PIN

10 080 ₽
6

54630029000 HEX.NUT L/SH M18X1,5

HEX.NUT L/SH M18X1,5

2 490 ₽
7

58132072000 LOCK WASHER VSK 18

LOCK WASHER VSK 18

320 ₽
9

54830016000 SPACER SLEEVE 28X38X10

SPACER SLEEVE 28X38X10

4 060 ₽
10

0760385273 SHAFT SEAL RING 38X52X7BTSL

SHAFT SEAL RING 38X52X7BTSL

5 960 ₽
11

0625623204 BALL BEARING 32X65X17 NTN

BALL BEARING 32X65X17 NTN

16 470 ₽
13

54830118300 CRANKSHAFT CPL.

CRANKSHAFT CPL.

162 780 ₽
14

54430034000 NEEDLE BEARING KBK 18X22X20

NEEDLE BEARING KBK 18X22X20

5 640 ₽
15

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
16

56530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42

CYLIND.ROL.BEAR. NJ207ET2XCS42

28 910 ₽
17

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
18

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
19

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
30

54830015244 CON.ROD REP.SET 250/300

CON.ROD REP.SET 250/300

95 180 ₽
31

0770250015 O-RING 25,00X1,50 NBR 70

O-RING 25,00X1,50 NBR 70

60 ₽
32

54830232000 TRAPEZOID RING 250 66,4 MM

TRAPEZOID RING 250 66,4 MM

12 850 ₽
98

00050000011 PISTON KIT GR.I

PISTON KIT GR.I

62 460 ₽
98

00050000003 PISTON KIT GR.II

PISTON KIT GR.II

62 460 ₽
99

00050002301 CRANKSHAF REP. KIT

CRANKSHAF REP. KIT

39 210 ₽
