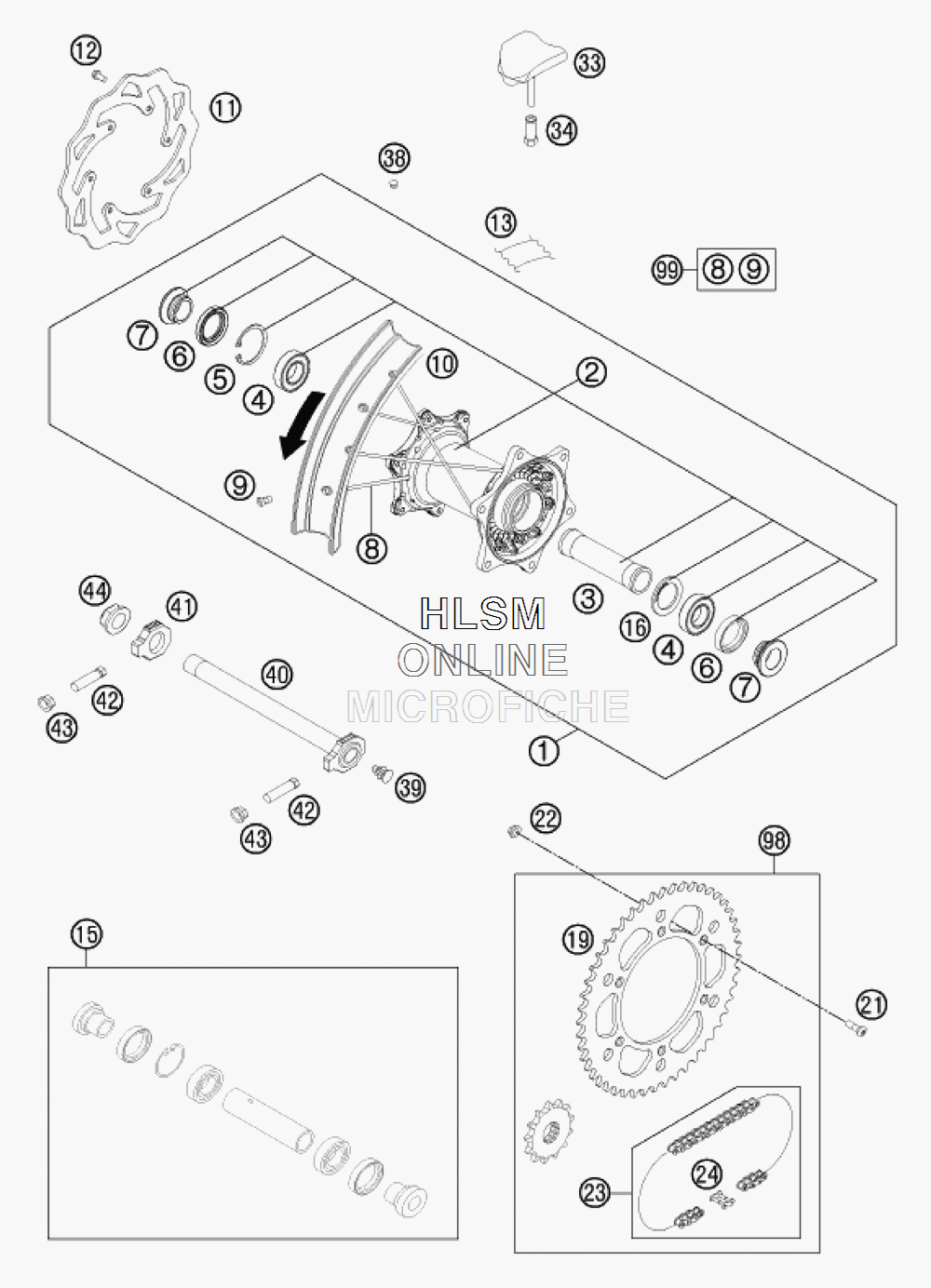

REAR WHEEL для Ktm 250 XC - 2016 года выпуска
-
№АртикулНазвание
-
17811000124430 REARWHEEL CPL.2,15X18"GIANT SWREARWHEEL CPL.2,15X18"GIANT SW
-
278010010244 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
377710011000 BEARING DISTANCE TUBE 121,5MMBEARING DISTANCE TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
777710016000 DISTANCE BUSHING REAR WHEELDISTANCE BUSHING REAR WHEEL
-
87711007119330 SPOKE M4,5X193- 18" (BLACK)SPOKE M4,5X193- 18" (BLACK)
-
977109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
107811007000030 RIM REAR 2,15X18" (BLACK)RIM REAR 2,15X18" (BLACK)
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1578010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
1677710015000 DISTANCE RINGDISTANCE RING
-
197771015104801 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
197771015105001 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
197771015105201 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2378010167118 CHAIN DID 118 ROLLSCHAIN DID 118 ROLLS
-
2478010166000 CONNECTING LINK F. 78010167118CONNECTING LINK F. 78010167118
-
3378110090000 RIM LOCK 2,15"RIM LOCK 2,15"
-
3477110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077710085044 WHEEL SPINDLE CPL.WHEEL SPINDLE CPL.
-
4177710084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
-
9800050002039 DRIVE TRAIN KITDRIVE TRAIN KIT
-
9900050000958 SPOKE KIT REAR 18" (BLACK)SPOKE KIT REAR 18" (BLACK)
