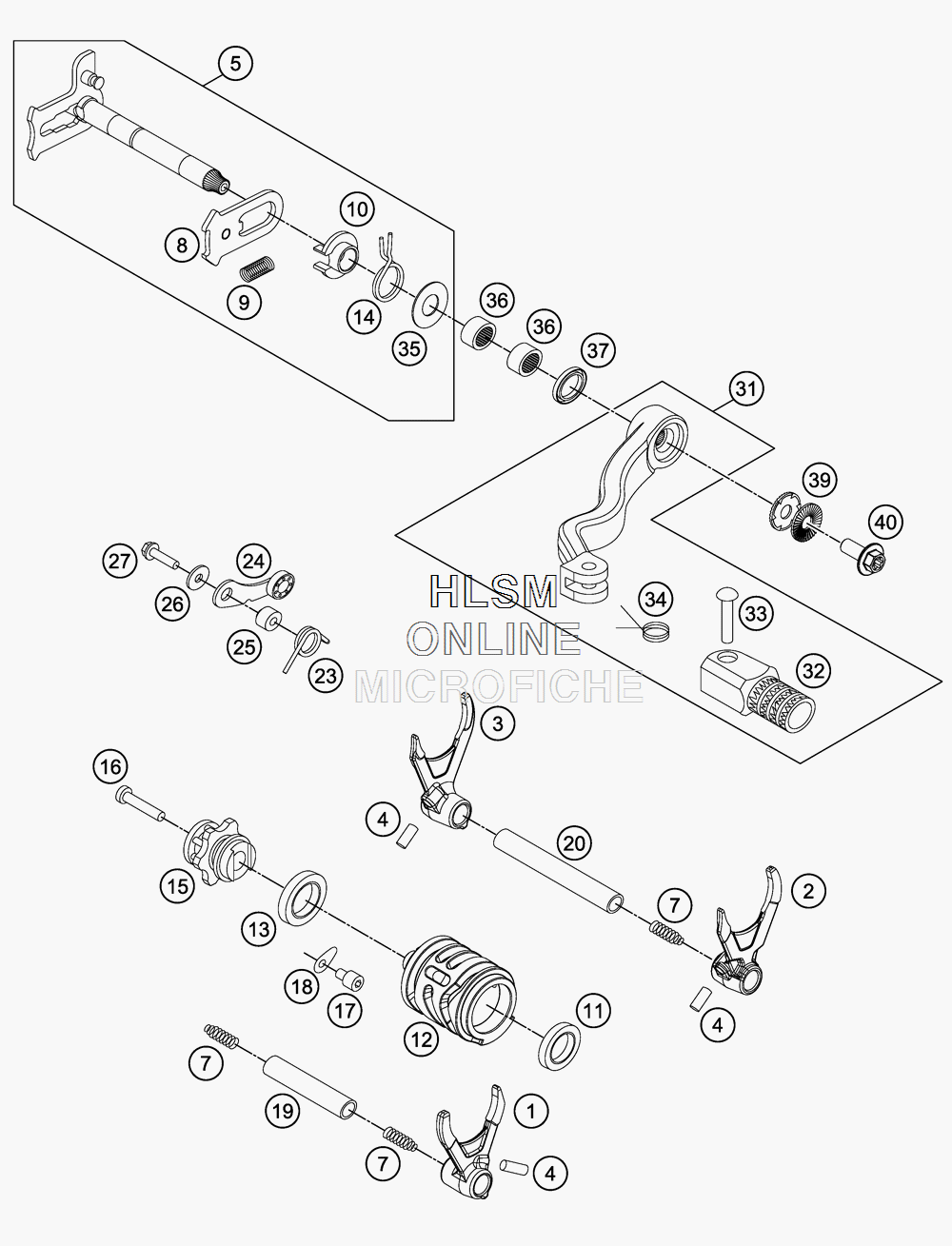

SHIFTING MECHANISM для Ktm 250 XC - 2016 года выпуска
-
№АртикулНазвание
-
154834201000 SHIFT FORK 5./6.G.SHIFT FORK 5./6.G.
-
254834202000 SHIFT FORK 2./4.G.SHIFT FORK 2./4.G.
-
354834203000 SHIFT FORK 1./3. G.SHIFT FORK 1./3. G.
-
40402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
554834005133 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
861234008044 SLIDING PLATESLIDING PLATE
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634120000 SPRING GUIDE 1SPRING GUIDE 1
-
110625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
-
1254834212200 GEAR SHIFT DRUMGEAR SHIFT DRUM
-
130625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1554834015133 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
160912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
170912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
1854634049000 RETAINING PLATERETAINING PLATE
-
1954834019000 SHIFT. RAIL MAIN SHAFTSHIFT. RAIL MAIN SHAFT
-
2054834020000 SHIFT. RAIL C. SHAFTSHIFT. RAIL C. SHAFT
-
2354834023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
260349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
270025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
3154834031000 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
3254634131000 STEP PLATE FOR SHIFT LEVERSTEP PLATE FOR SHIFT LEVER
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
370760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3950233041500 NORDLOCK WASHER M6NORDLOCK WASHER M6
-
400024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
