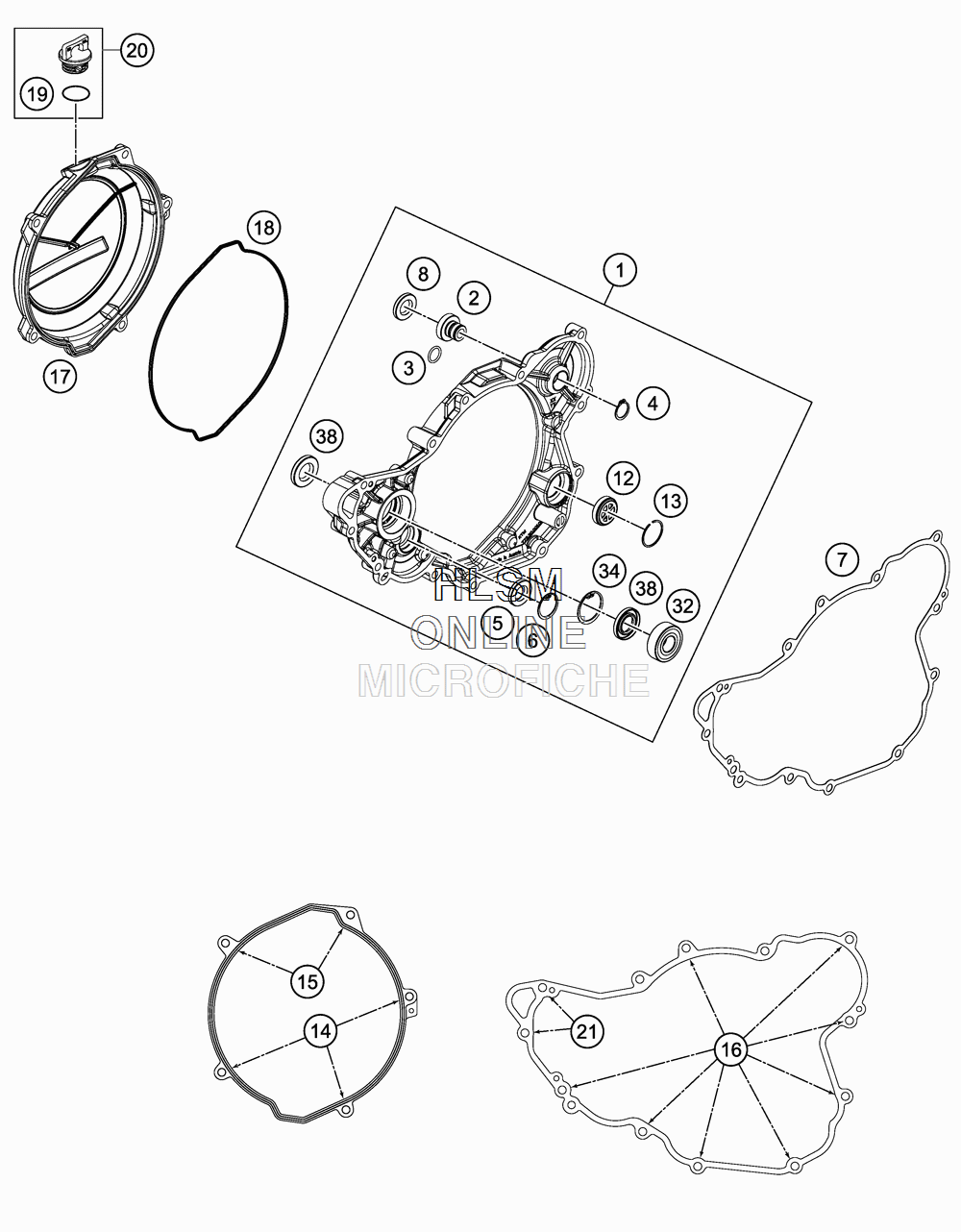

CLUTCH COVER для Ktm 250 XCFW - 2016 года выпуска

№

Артикул

Название
1

77230001144 CLUTCH COVER CPL.

CLUTCH COVER CPL.

46 080 ₽
2

77230001010 PLUG STARTING LEVER

PLUG STARTING LEVER

2 540 ₽
3

0770140200 O-RING 14,00X2,00

O-RING 14,00X2,00

410 ₽
4

0471170010 CIRCLIP DIN0471-17X1

CIRCLIP DIN0471-17X1

290 ₽
5

0760142450 SHAFT SEAL RING 14X24X5 VITON

SHAFT SEAL RING 14X24X5 VITON

4 320 ₽
6

0472024120 CIRCLIP DIN0472-24X1.2

CIRCLIP DIN0472-24X1.2

90 ₽
7

77230025000 CLUTCH COVER GASKET

CLUTCH COVER GASKET

6 580 ₽
8

0760172870 SHAFT SEAL RING 17X28X7 B

SHAFT SEAL RING 17X28X7 B

2 160 ₽
12

59030019200 OIL SIGHT GLASS

OIL SIGHT GLASS

5 720 ₽
13

61030019050 CIRCLIP OIL LEVEL GLASS

CIRCLIP OIL LEVEL GLASS

150 ₽
14

0025060206 HH COLLAR SCREW M6X20

HH COLLAR SCREW M6X20

500 ₽
15

0025060456 HH COLLAR SCREW M6X45

HH COLLAR SCREW M6X45

470 ₽
16

0025060256 HH COLLAR SCREW M6X25

HH COLLAR SCREW M6X25

560 ₽
17

7723002600015 CLUTCH COVER OUTSIDE

CLUTCH COVER OUTSIDE

21 490 ₽
18

77230027000 GASKET FOR OUTER CLUTCH COVER

GASKET FOR OUTER CLUTCH COVER

3 190 ₽
19

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
20

58030120000 OIL FILLER CAP M24X3 WITH O-R

OIL FILLER CAP M24X3 WITH O-R

1 840 ₽
21

0025060406 HH COLLAR SCREW M6X40

HH COLLAR SCREW M6X40

500 ₽
32

0625062022 BALL BEARING 6202 C0 2

BALL BEARING 6202 C0 2

3 890 ₽
34

0472300120 CIRCLIP 30X1,2

CIRCLIP 30X1,2

150 ₽
38

07601530451 SHAFT SEAL RING 15X30X4.5 BAUD

SHAFT SEAL RING 15X30X4.5 BAUD

1 780 ₽
