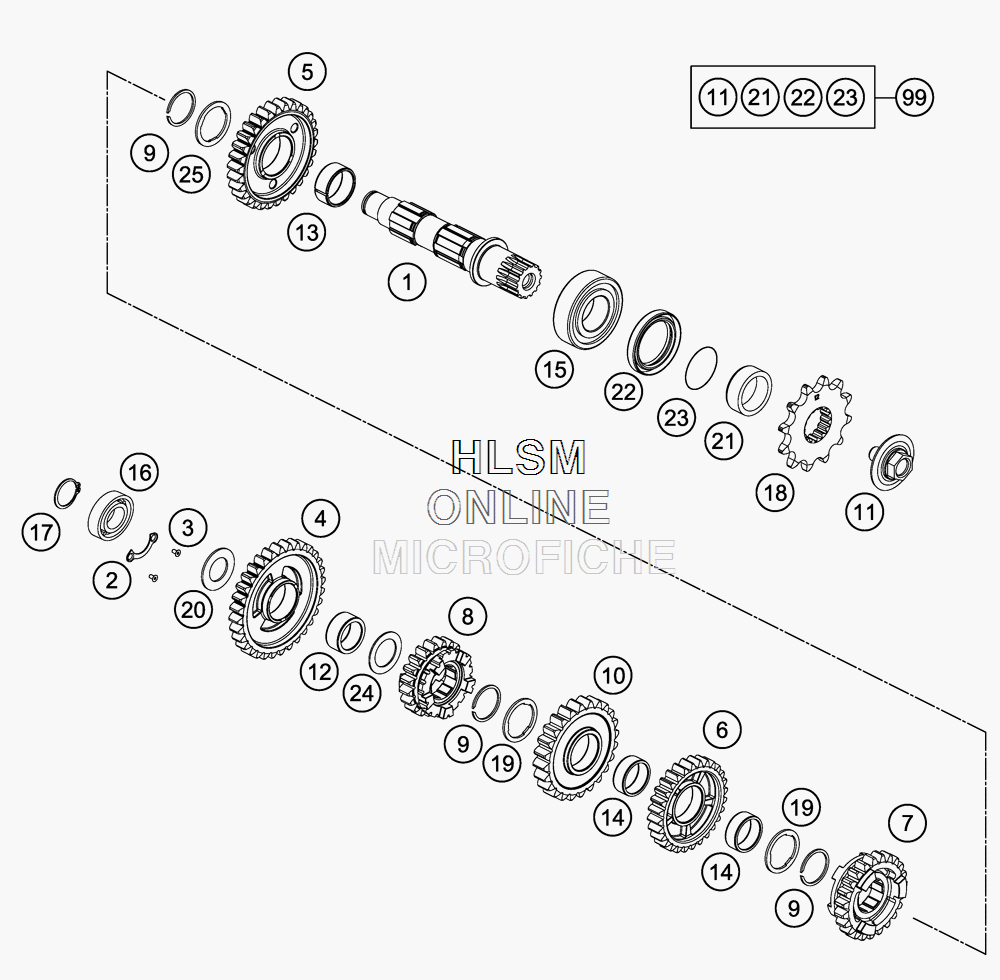

TRANSMISSION - MAIN SHAFT для Ktm 250 XCFW - 2016 года выпуска
-
№АртикулНазвание
-
177733001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
277733102000 SOLID GEAR 2ND G.SOLID GEAR 2ND G.
-
377733103000 SLIDING GEAR 3/4 G. T="16/23"SLIDING GEAR 3/4 G. T="16/23"
-
477733105000 IDLER GEAR 5TH G.IDLER GEAR 5TH G.
-
572033006044 IDLER GEAR 6TH GEAR CPL.IDLER GEAR 6TH GEAR CPL.
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1177733024000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
1250133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
1377733027000 BUSHINGBUSHING
-
140625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
1577233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
1677733021000 STOP DISCSTOP DISC
-
1777733022000 STOP DISCSTOP DISC
