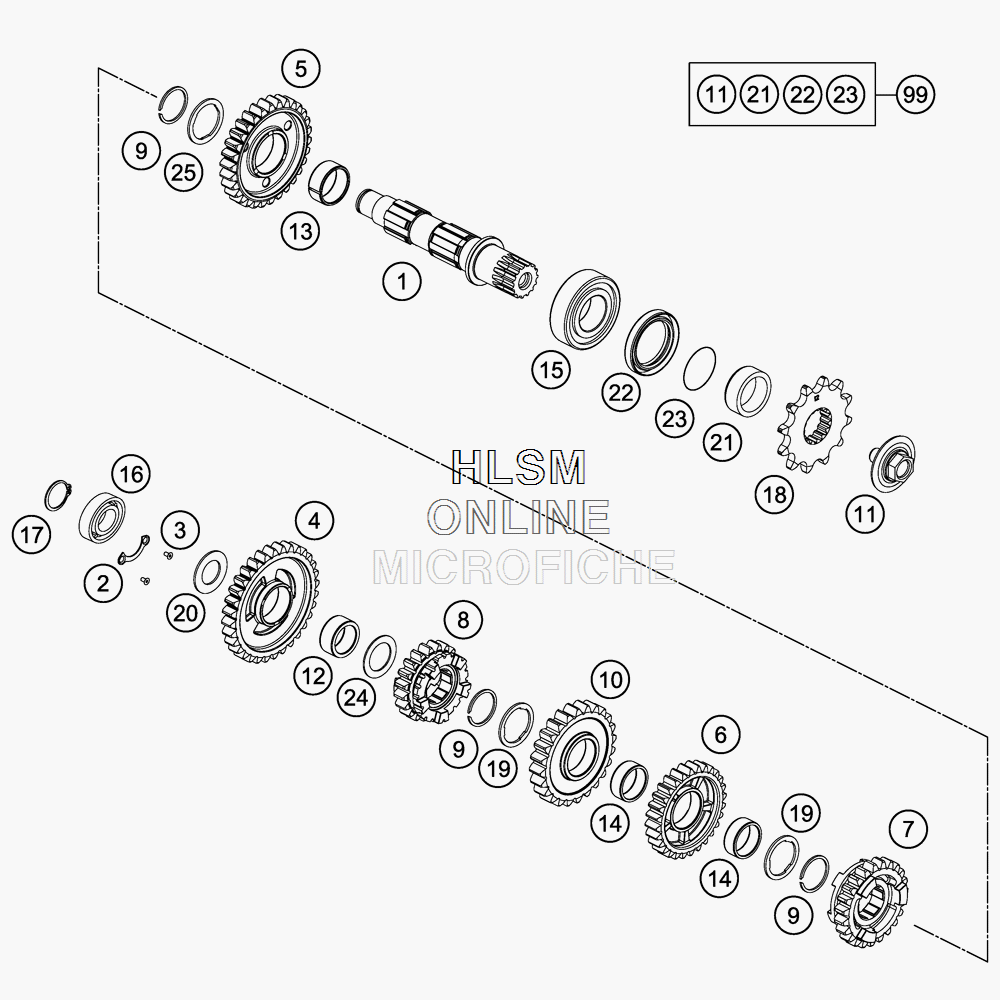

TRANSMISSION - COUNTERSHAFT для Ktm 250 XCFW - 2016 года выпуска
-
№АртикулНазвание
-
177733110000 COUNTERSHAFTCOUNTERSHAFT
-
278033132000 TAB WASHER BEARING COUNT.SHAFTTAB WASHER BEARING COUNT.SHAFT
-
30019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
477733011000 IDLER GEAR 1ST G. T=32IDLER GEAR 1ST G. T=32
-
577733112000 IDLER GEAR 2ND G. T=30IDLER GEAR 2ND G. T=30
-
677733114100 IDLER GEAR 4.G. Z=28IDLER GEAR 4.G. Z=28
-
777733115100 SLIDING GEAR 5.G.,Z=23SLIDING GEAR 5.G.,Z=23
-
872033016000 SLIDING GEAR 6TH GEAR, 20TSLIDING GEAR 6TH GEAR, 20T
-
90417024000 CIRCLIP WS24CIRCLIP WS24
-
1077733113100 IDLER GEAR 3.G. Z=24IDLER GEAR 3.G. Z=24
-
1159033034044 SCREW 10.9+SPRING WASHERSCREW 10.9+SPRING WASHER
-
120405202612 NEEDLE BEARING K 20X26X12NEEDLE BEARING K 20X26X12
-
130405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
140405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
1549030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
160625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
170471170015 CIRCLIP DIN 0471-17X1, 5CIRCLIP DIN 0471-17X1, 5
-
1850033029012 FRONT SPROCKET 12-TFRONT SPROCKET 12-T
-
1850033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
1850033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
1977733043000 STOP DISC 23,4X31X1,5STOP DISC 23,4X31X1,5
-
2077233020000 STOP DISK 17,2X30X1,3STOP DISK 17,2X30X1,3
-
2154633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
220760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
230770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
2454833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
2577733044000 STOP DISC 24X32X1,5STOP DISC 24X32X1,5
-
9900050000941 COUNTER SHAFT REP.KIT 4 STROKECOUNTER SHAFT REP.KIT 4 STROKE
