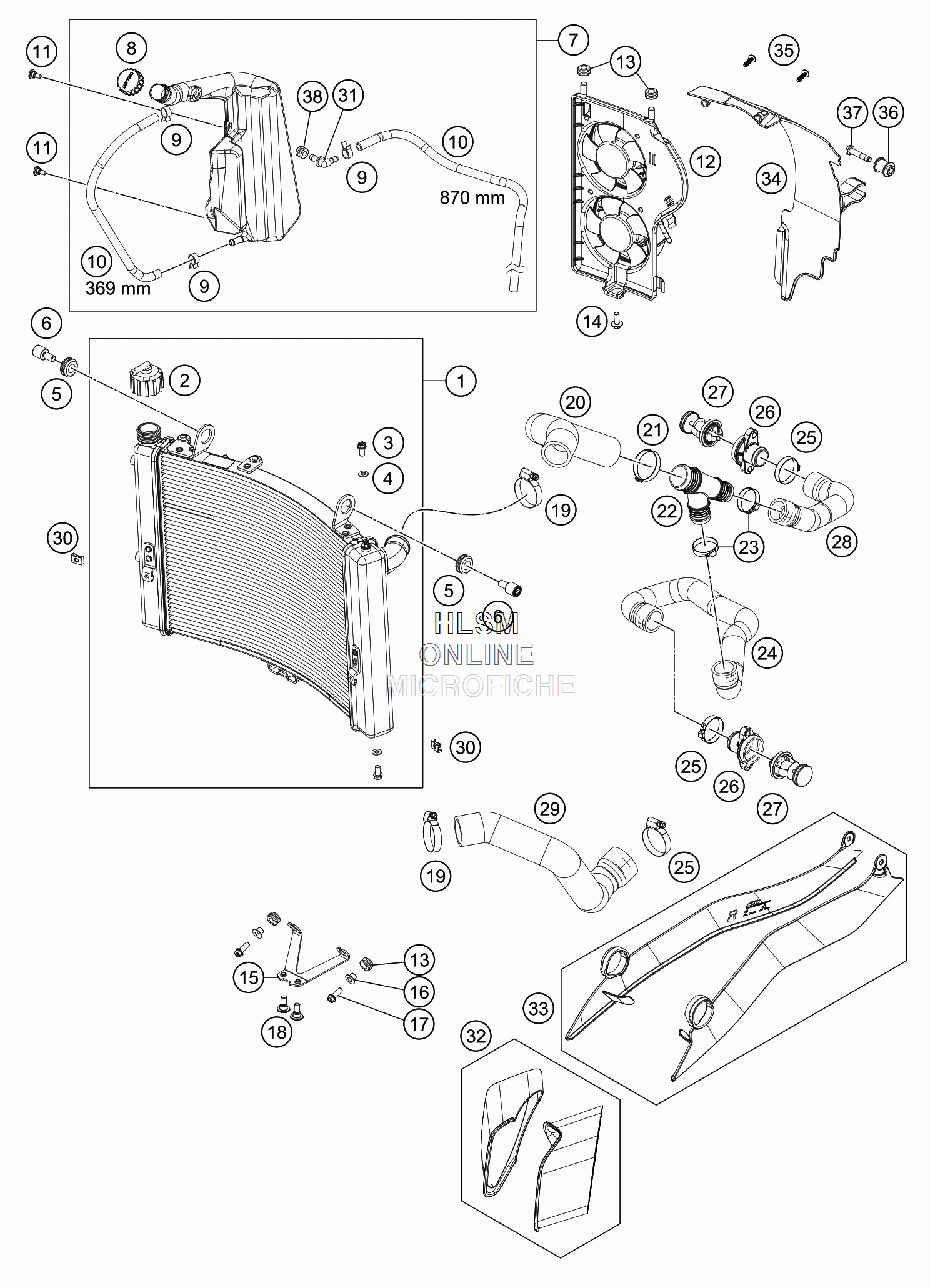

COOLING SYSTEM для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска
-
№АртикулНазвание
-
160335010100 WATER COOLERWATER COOLER
-
262535009000 RADIATOR CAP 1,4 BARRADIATOR CAP 1,4 BAR
-
30025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
460035048000 ALU-GASKET 6X10X1.5ALU-GASKET 6X10X1.5
-
541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
669035001000 STUD BOLT M6 11X11 ISA45STUD BOLT M6 11X11 ISA45
-
760435065000 EXPANSION TANKEXPANSION TANK
-
860335066044 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
958007117000 YDNAC-CLAMPYDNAC-CLAMP
-
1060035067001 HOSE 6X10 EPDMHOSE 6X10 EPDM
-
1169008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1260335044033 FAN COVER CPL.FAN COVER CPL.
-
1331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
140024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
1560335005000 MOUNTING PLATE COOLER BOTTOMMOUNTING PLATE COOLER BOTTOM
-
1675014010050 COLLAR BUSHING 6,1X8,1X14X8 07COLLAR BUSHING 6,1X8,1X14X8 07
-
170025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
180025050106 COLLAR SCREW M5X10 ISA30COLLAR SCREW M5X10 ISA30
-
1869013099050 SCREW F. EXPANSION TANK (AUS ONLY)SCREW F. EXPANSION TANK (AUS ONLY)
-
1954305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
2060335026000 PREFORMED HOSEPREFORMED HOSE
-
2100050396706 VARIABLE ONE-EAR CLAMP 39,6MMVARIABLE ONE-EAR CLAMP 39,6MM
-
2260335093000 Y-JOINTY-JOINT
-
2300050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
2460335025000 PREFORMED HOSEPREFORMED HOSE
-
2500050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
2661235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
2761235017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
2860335024000 PREFORMED HOSEPREFORMED HOSE
-
2960335027000 PREFORMED HOSEPREFORMED HOSE
-
3054603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
3160035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
3260408052044 AIR DEFLECTOR KIT TANKAIR DEFLECTOR KIT TANK
-
3360308053144 AIR DEFLECTOR KIT SEATAIR DEFLECTOR KIT SEAT
-
3460308056000 AIR DEFLECTOR FANAIR DEFLECTOR FAN
-
350081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
3660308056010 RETAINING SLEEVERETAINING SLEEVE
-
370035100509S AH-COLLAR SCREW M10X50 ISA45AH-COLLAR SCREW M10X50 ISA45
-
3860035069000 RUBBER GROMMET 6X9X13MMRUBBER GROMMET 6X9X13MM
