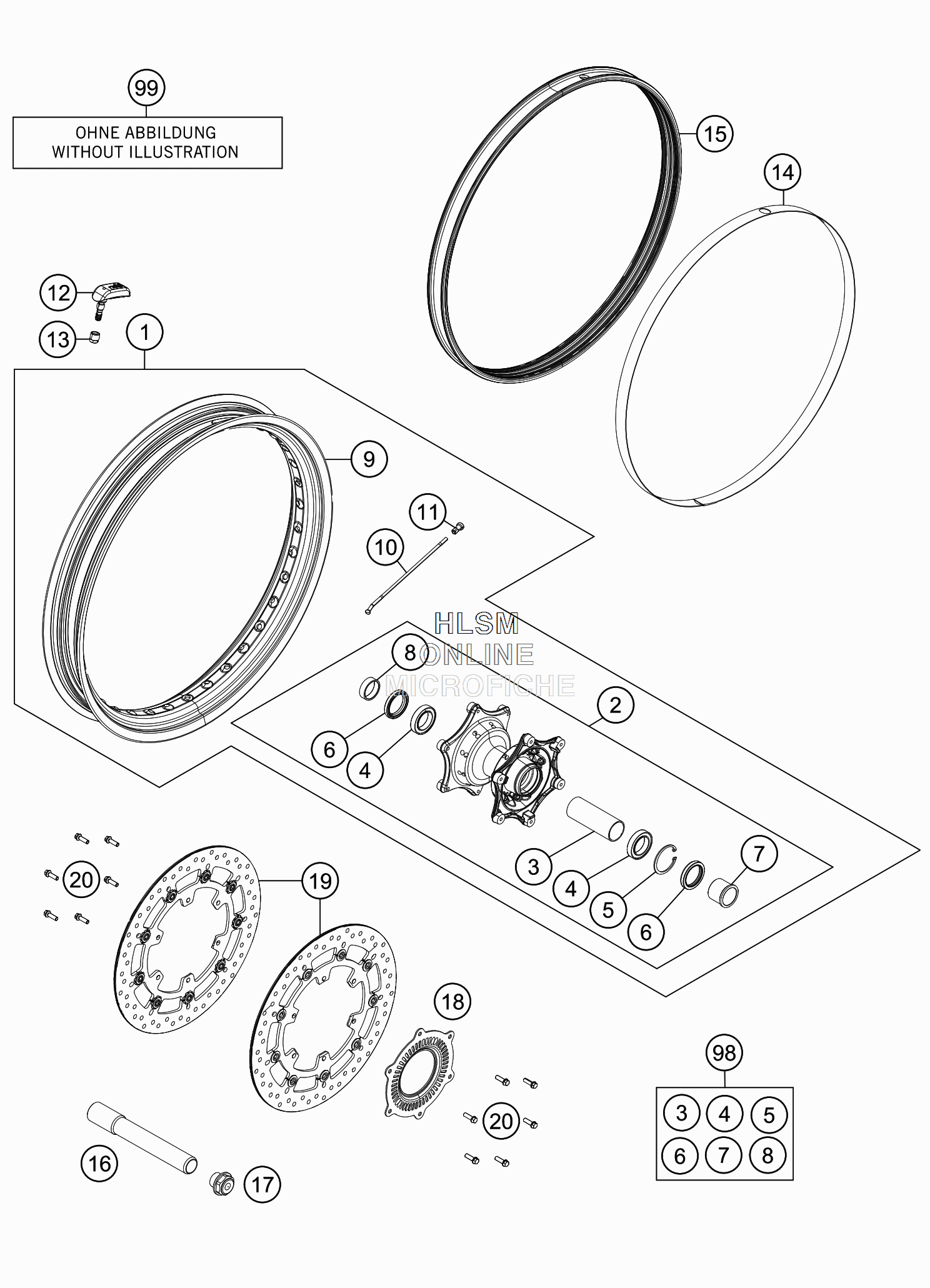

FRONT WHEEL для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска
-
№АртикулНазвание
-
16040900114433A FRONT WHEEL COMPLETE 3''X19'' (BLACK)FRONT WHEEL COMPLETE 3''X19'' (BLACK)
-
260309010144KBA FRONT HUB CPL.FRONT HUB CPL.
-
360309011000 BUSHING SPACER TUBE FRONTBUSHING SPACER TUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
760309012000 SPACER BUSH. FRONT WHEEL LEFTSPACER BUSH. FRONT WHEEL LEFT
-
860009013000 SPACER BUSH. FR. WHEEL R/SSPACER BUSH. FR. WHEEL R/S
-
96040907010033A FRONT RIM 3,0X19" TLFRONT RIM 3,0X19" TL
-
1060309171000 SPOKE 5/4.37/M5SPOKE 5/4.37/M5
-
1160310072100 SPOKE SIPPLE QUADRAX M5SPOKE SIPPLE QUADRAX M5
-
1260312033000 TIRE AIR PRESSURE SENSORTIRE AIR PRESSURE SENSOR
-
1360312033050 NUT AIR PRESSURE SENSORNUT AIR PRESSURE SENSOR
-
1460309173100 RIM BAND 19"RIM BAND 19"
-
1560309277100 GASKET RUBBER 3"X19"GASKET RUBBER 3"X19"
-
1660309081000 AXLE FRONTAXLE FRONT
-
176900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
1860342020000 SENSOR GEAR ABSSENSOR GEAR ABS
-
196030906000030 BRAKE DISC FRONT D=320X4,5BRAKE DISC FRONT D=320X4,5
-
2059009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
9860309015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
9960312034044 VALVE KIT AIR PRESSURE SENSORVALVE KIT AIR PRESSURE SENSOR
