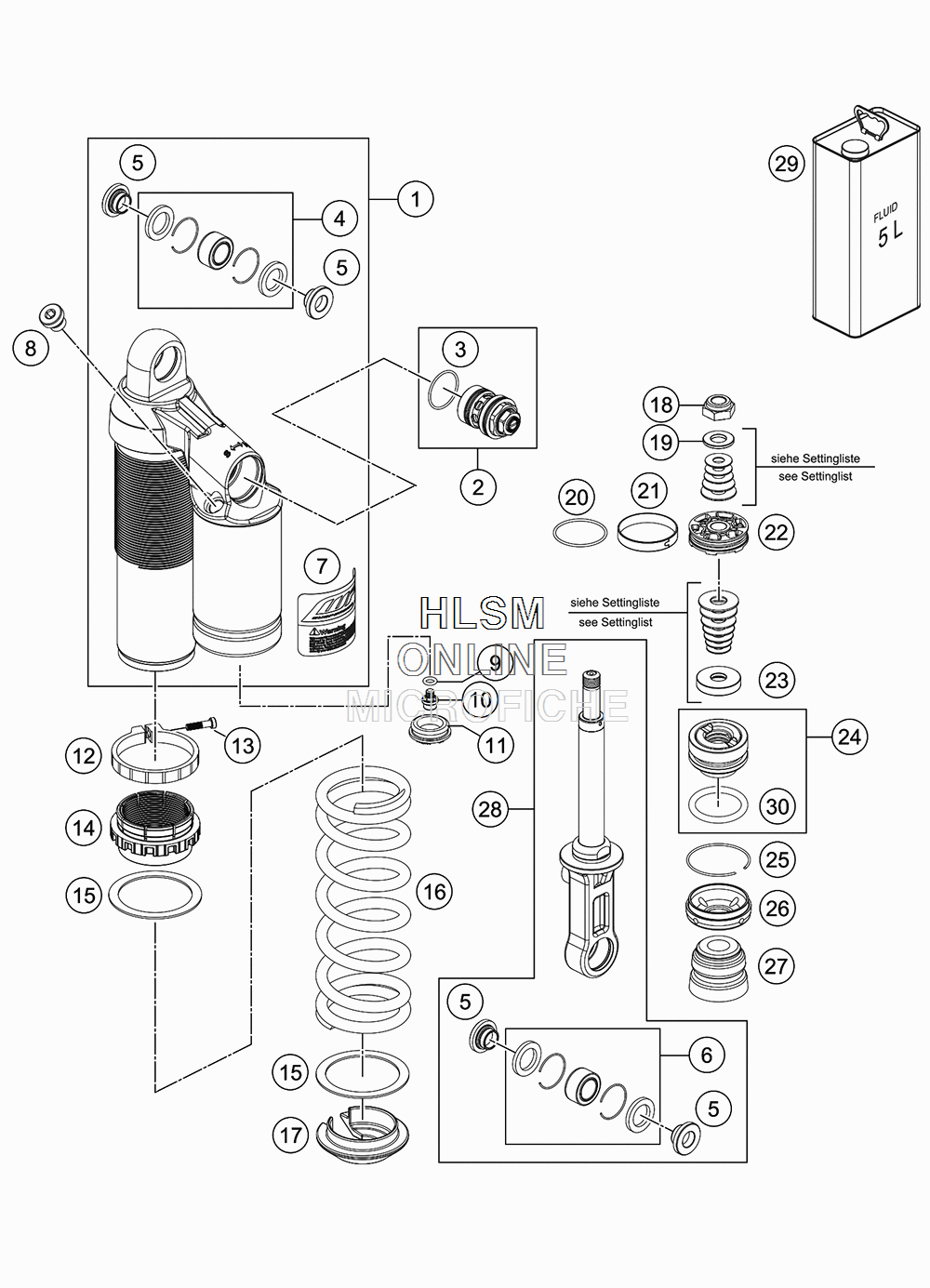

SHOCK ABSORBER DISASSEMBLED для Ktm 1290 SUPER DUKE BLACK - 2017 года выпуска
-
№АртикулНазвание
-
46181252S1 MONOSHOCK TOP PARTMONOSHOCK TOP PART
-
250180213S27 DCC COMPR .DAMP.CONTRO L CPL. 17DCC COMPR .DAMP.CONTRO L CPL. 17
-
350180217 O-RING 27X1,5 VITONO-RING 27X1,5 VITON
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
546181138 BUSHING KGW 1525 14X32BUSHING KGW 1525 14X32
-
6R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
752000149 STICKER WP W ARNING INDIEN BIKE 60 X 35MMSTICKER WP W ARNING INDIEN BIKE 60 X 35MM
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1246181014 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
1314460042 ALLENHEAD SCREW M5 L=20 STAINALLENHEAD SCREW M5 L=20 STAIN
-
1446181013 ADJUSTING NUT D46 PLASTICADJUSTING NUT D46 PLASTIC
-
1550180410 INTERM.RING D=58INTERM.RING D=58
-
1691010078S SPRING (59) 170-185 D 14SPRING (59) 170-185 D 14
-
1746181299 SPRING RETAINER H=15 D=28SPRING RETAINER H=15 D=28
-
1846810474 PISTON ROD NUTPISTON ROD NUT
-
1946811258 RING 12X24X2,5RING 12X24X2,5
-
2046810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
2146811206 PISTON RING 8X46PISTON RING 8X46
-
2346180337 REBOUND DISC H=4REBOUND DISC H=4
-
2446180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
2546810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
2646181031 CAP D46 L=18MMCAP D46 L=18MM
-
2746180365 BUMP RUBBER WP60 H=30 D=18-26BUMP RUBBER WP60 H=30 D=18-26
-
2846181260S1 MONOSHOCK LOWER PARTMONOSHOCK LOWER PART
-
2950180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
3014460004 O-RING NBR 36X5O-RING NBR 36X5
