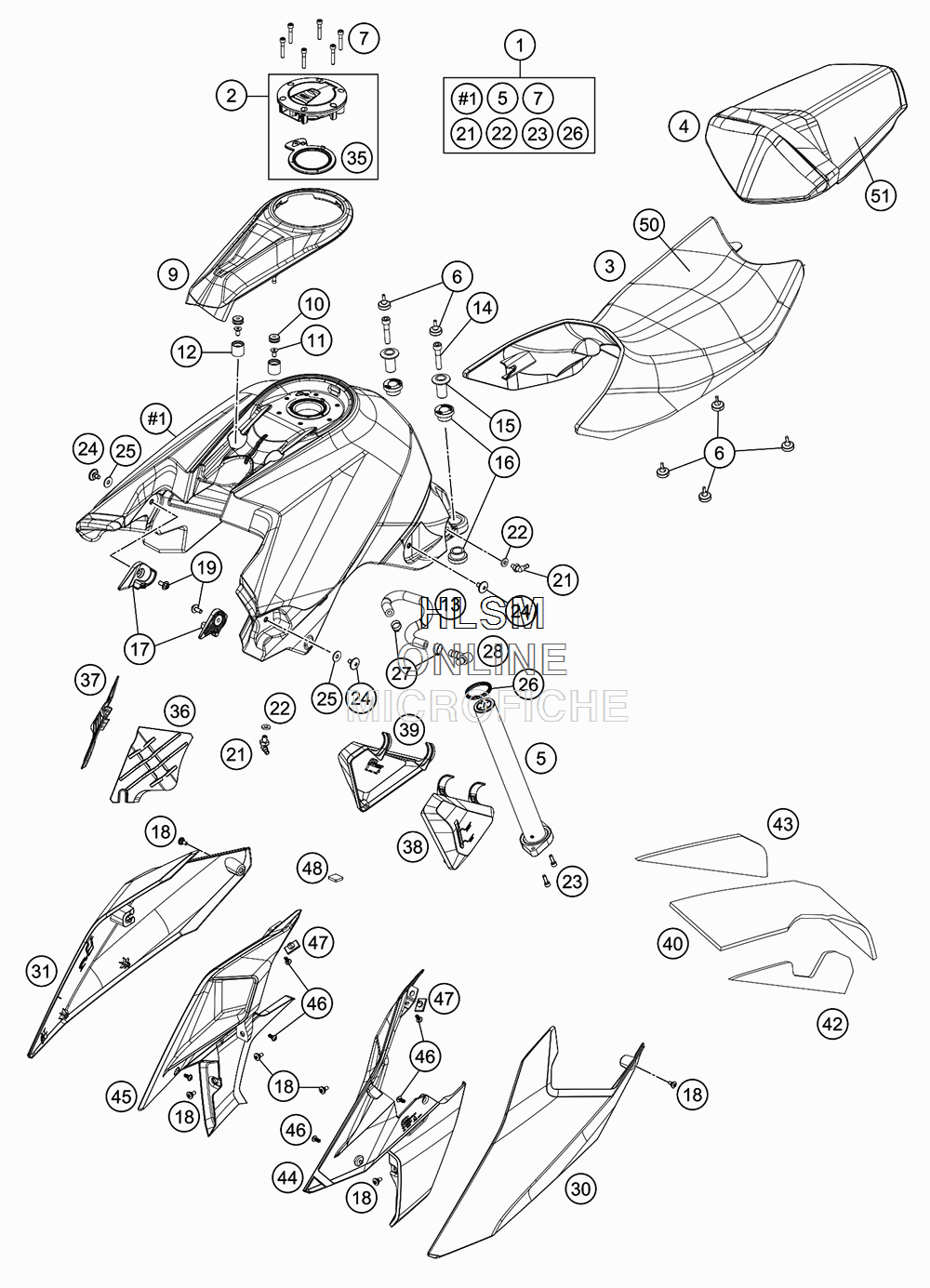

TANK - SEAT - COVER для Ktm 1290 SUPER DUKE BLACK - 2017 года выпуска
-
№АртикулНазвание
-
61307013044CBA FUEL TANK CPL. SD PITCH BLACKFUEL TANK CPL. SD PITCH BLACK
-
261607008000 FUEL TANK CAP KEYLESSFUEL TANK CAP KEYLESS
-
361607040000 SEAT RIDER COMPLETESEAT RIDER COMPLETE
-
461607047000 SEAT PASSENGER COMPLETESEAT PASSENGER COMPLETE
-
561307080000 GAS LEVEL SENSORGAS LEVEL SENSOR
-
660006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
70912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
961607058000 T ANK FAIRINGT ANK FAIRING
-
1076008052050 RUBBER SLEEVE 5X7.6X13MMRUBBER SLEEVE 5X7.6X13MM
-
110991060126 FLAT HEAD SCREW DIN7991-M 6X12FLAT HEAD SCREW DIN7991-M 6X12
-
1276008052000 BUSHING 13X20X18,5MMBUSHING 13X20X18,5MM
-
1361307017050 FUEL HOSE PUMPFUEL HOSE PUMP
-
140912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
1561007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
1661007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
1761307021044 TANK MOUNTING FRONT L/S & R/STANK MOUNTING FRONT L/S & R/S
-
1869008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
190024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
2160007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
2260007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
230912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
2458407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
250021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2660307080090 GASKET FUEL LEVEL SENSORGASKET FUEL LEVEL SENSOR
-
2700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
287720701000030 PLUG CPCPLUG CPC
-
3061608050000KCA FUEL TANK SPOILER DARK GALVANOFUEL TANK SPOILER DARK GALVANO
-
3161608051000KCA FUEL TANK SPOILER RIGHT DARK GALVANOFUEL TANK SPOILER RIGHT DARK GALVANO
-
3560307008190 GASKET TANK CAPGASKET TANK CAP
-
3661303085000 FRAME COVER L/SFRAME COVER L/S
-
3761303086000 FRAME COVER R/SFRAME COVER R/S
-
3861303091000 KNEE PAD L/SKNEE PAD L/S
-
3961303092000 KNEE PAD R/SKNEE PAD R/S
-
4061306095010 INSULATION MAT MIDDLEINSULATION MAT MIDDLE
-
4261306095020 INSULATION MAT L/SINSULATION MAT L/S
-
4361306095030 INSULATION MAT R/SINSULATION MAT R/S
-
4461608027000 INTERIOR FINISHING LEFTINTERIOR FINISHING LEFT
-
4561608026000 INTERIOR FINISHING RIGHTINTERIOR FINISHING RIGHT
-
460081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
4777307040041 ISOLATION PADISOLATION PAD
-
4861408015030 METAMOLL F. TAIL LIGHT COVERMETAMOLL F. TAIL LIGHT COVER
-
5061307040050 SEAT COVERSEAT COVER
-
5161307047050 SEAT COVERSEAT COVER
