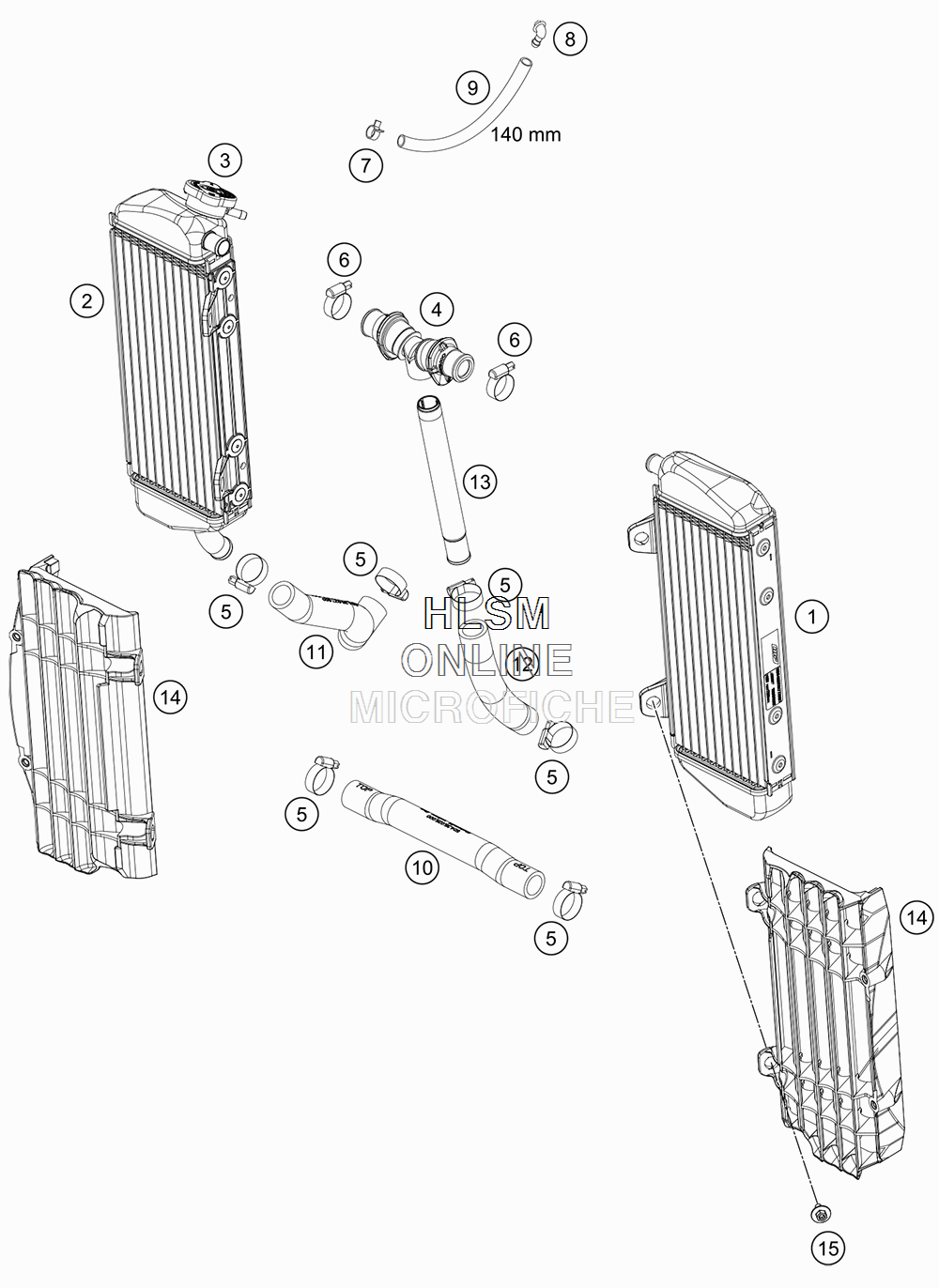

COOLING SYSTEM для Ktm 150 XC-W - 2017 года выпуска
-
№АртикулНазвание
-
150435007100 RADIATOR LEFTRADIATOR LEFT
-
250435008100 RADIATOR RIGHTRADIATOR RIGHT
-
379035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
479035071044 Y-PIECE CPL.Y-PIECE CPL.
-
510001020000 HOSE CLAMP GEMI 18-29HOSE CLAMP GEMI 18-29
-
642013037400 HOSE CLAMP NORMA 14/24HOSE CLAMP NORMA 14/24
-
759007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
850303089000 ANGLE PIECEANGLE PIECE
-
950335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
1050435025000 PREFORMED HOSE RADIATORPREFORMED HOSE RADIATOR
-
1150435027000 PREFORM.HOSE ENGINE/RAD. R/SPREFORM.HOSE ENGINE/RAD. R/S
-
1250335025142 RADIATOR HOSE 18X25X142RADIATOR HOSE 18X25X142
-
1350435073000 COOLING WATER PIPECOOLING WATER PIPE
-
147903503400030 RADIATOR PROTECTRADIATOR PROTECT
-
150024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
