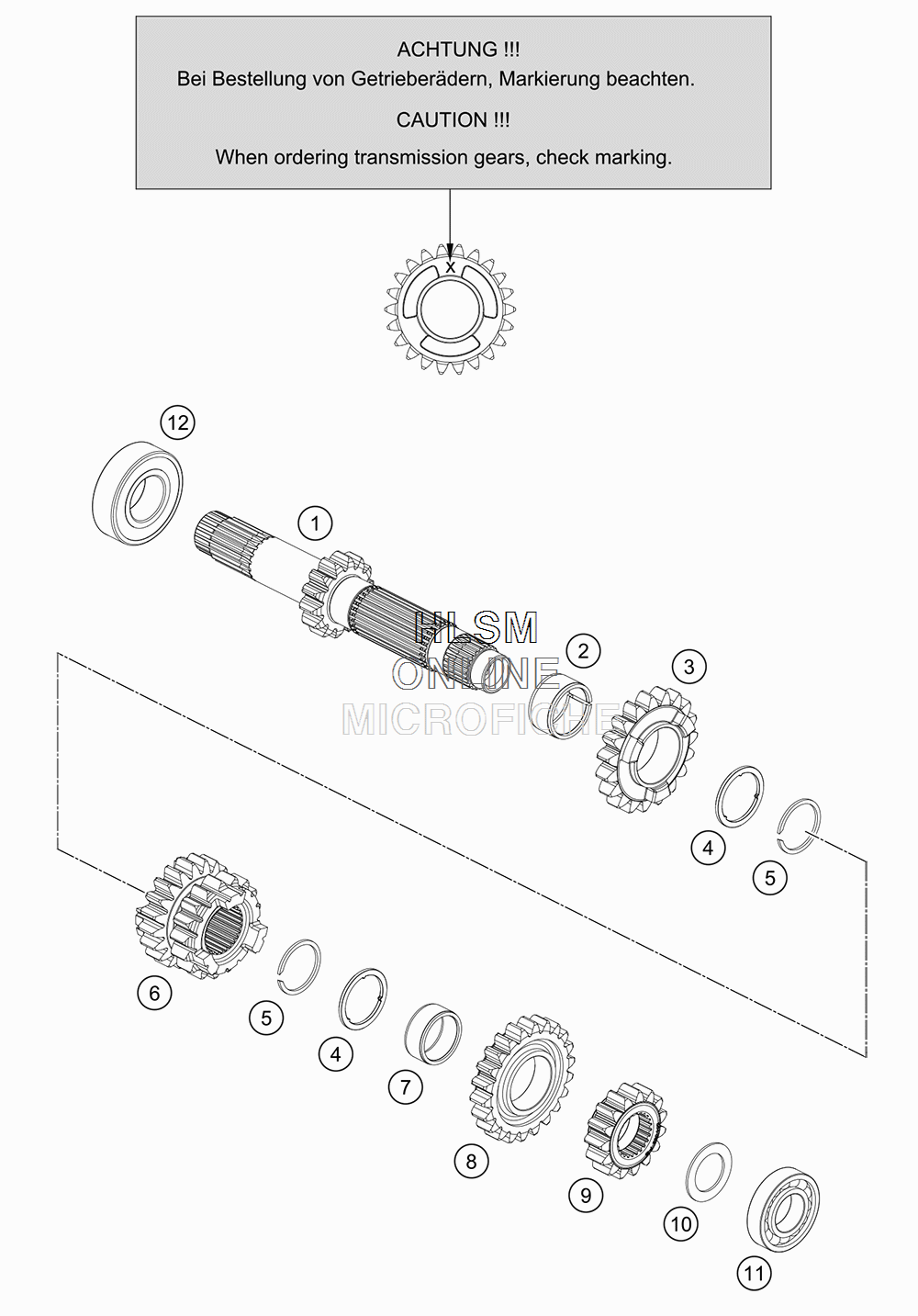

TRANSMISSION - MAIN SHAFT для Ktm 150 XC-W - 2017 года выпуска
-
№АртикулНазвание
-
150433101000 DRIVE SHAFT ASSY . NOT=12DRIVE SHAFT ASSY . NOT=12
-
20405212513 NEEDLE BEARING K21X25X13 SPLITNEEDLE BEARING K21X25X13 SPLIT
-
350433105100 IDLER 5TH GEAR NOT=21IDLER 5TH GEAR NOT=21
-
450433043000 STOP DISKSTOP DISK
-
550133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
650433103000 SLIDING GEAR 3RD/4TH GEARSLIDING GEAR 3RD/4TH GEAR
-
70405202410 NEEDLE BEARING K20X24X10NEEDLE BEARING K20X24X10
-
850433106000 IDLER 6TH GEAR NOT=20IDLER 6TH GEAR NOT=20
-
950433102000 FIXED GEAR 2ND GEAR NOT=15FIXED GEAR 2ND GEAR NOT=15
-
1050333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
110625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
120625060041 BALL BEARING 6004 TNH C3BALL BEARING 6004 TNH C3
