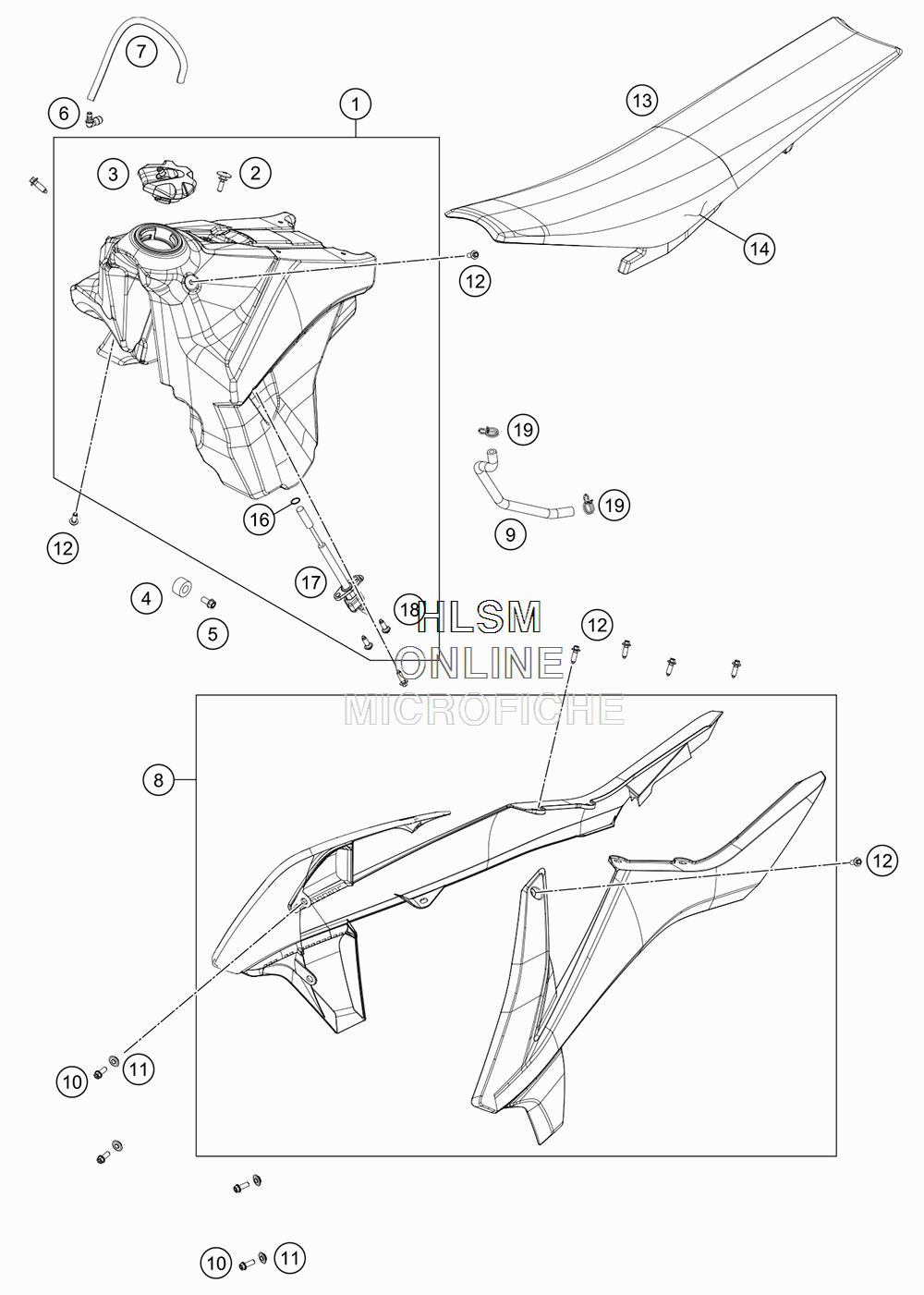

TANK- SEAT - COVER для Ktm 150 XC-W - 2017 года выпуска
-
№АртикулНазвание
-
15560701303399 FUEL TANK CPL.FUEL TANK CPL.
-
250307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
378107008044X4 TANK PLUG CPL.TANK PLUG CPL.
-
450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
50026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
-
651030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
87900805400030A SPOILER KIT W/ DECALSPOILER KIT W/ DECAL
-
950407016000 FUEL HOSE 6X2.5FUEL HOSE 6X2.5
-
100025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
1179608052000 BUSH 6X11X16X5 MMBUSH 6X11X16X5 MM
-
120017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1379007140000 SEATSEAT
-
1479007140050 SEAT COVERSEAT COVER
-
160770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
1754807004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
180017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
1958031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
