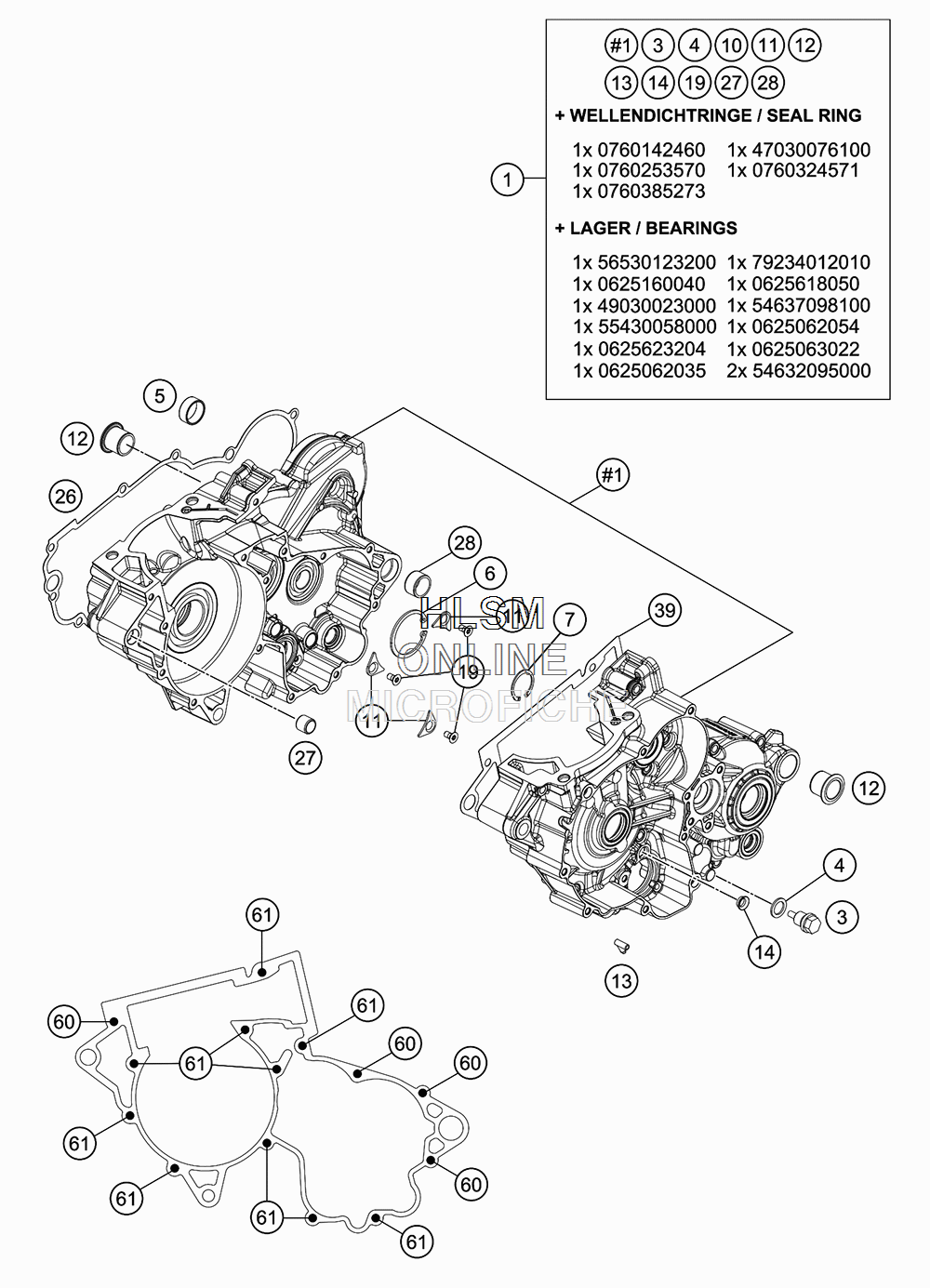

ENGINE CASE для Ktm 300 XC-WSD - 2017 года выпуска
-
№АртикулНазвание
-
155430200044 ENGINE CASE CPL.ENGINE CASE CPL.
-
358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
579433053050 CAROBRON ZE BUSHCAROBRON ZE BUSH
-
60472042175 CIRCLIP DIN0472-42X1,75CIRCLIP DIN0472-42X1,75
-
755430059100 CIRCLIP DIN0472-28X1 ,2CIRCLIP DIN0472-28X1 ,2
-
1175030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
1275030010100 CASE BUSHCASE BUSH
-
1345130022000 ANGLE PIECE 50CCM LCANGLE PIECE 50CCM LC
-
1455140030100 COLLAR BUSHINGCOLLAR BUSHING
-
190019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12DOWEL 21X12
-
3955430039000 ENGINE CASE GASKETENGINE CASE GASKET
-
600025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
610025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
