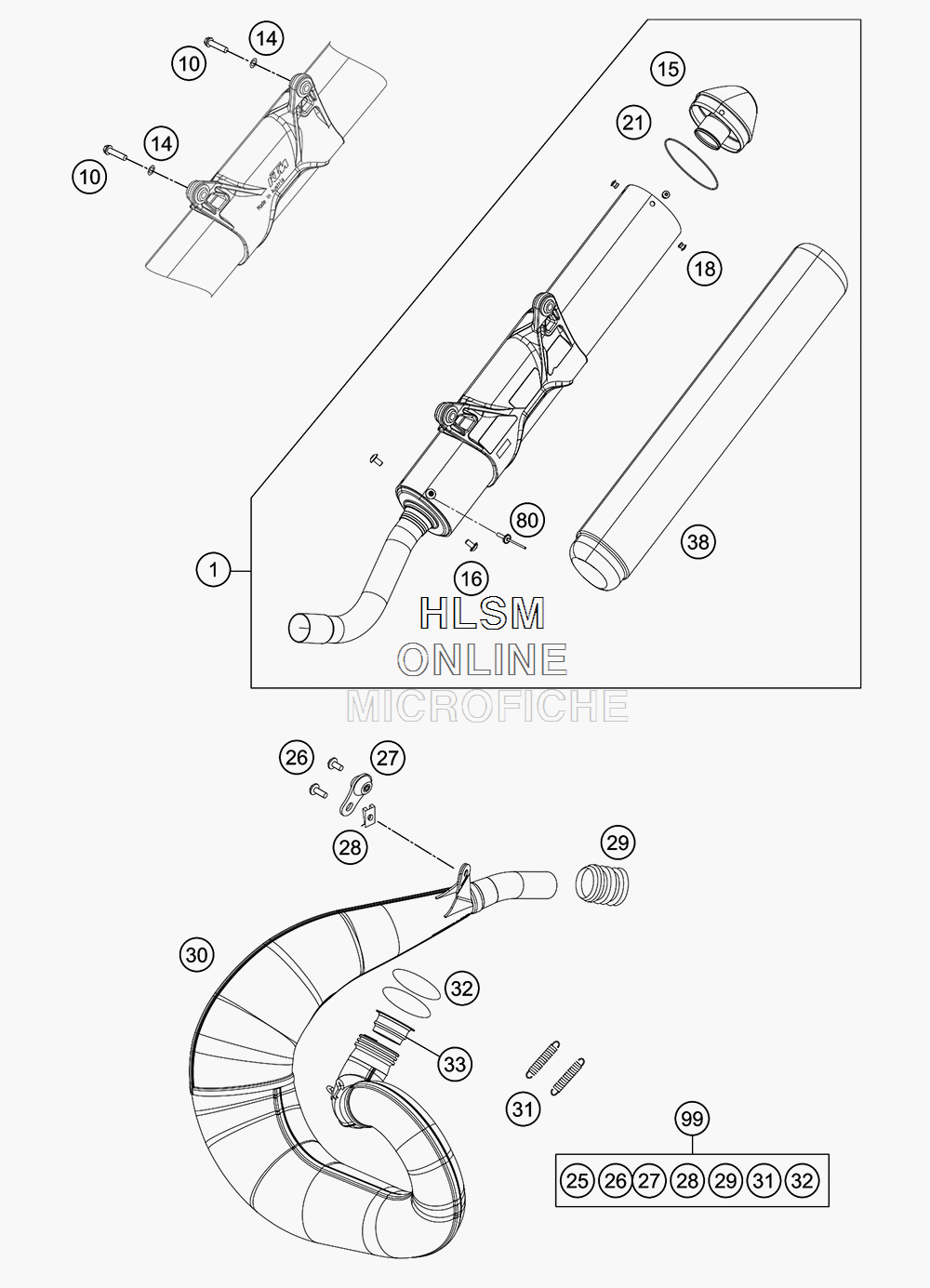

EXHAUST SYSTEM для Ktm 300 XC-WSD - 2017 года выпуска
-
№АртикулНазвание
-
1556050830005 9 SILENCER SIXDA YS9 SILENCER SIXDA YS
-
100025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
140137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1554805083260 ENDCAP CPL.ENDCAP CPL.
-
1678105081010 SCREW TORX M5X10SCREW TORX M5X10
-
180011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
210770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
260024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
2750305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
2854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2950205057000 SILICON SLEEVE D=29/31MMSILICON SLEEVE D=29/31MM
-
3055405007000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
3150305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
320770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
3354805009280 EXHAUST THROTTLE D=39.5EXHAUST THROTTLE D=39.5
-
3854805078315 ROCKWOOL 315GROCKWOOL 315G
-
800011401200 DUMMY RIVET 4,0X12 ALUDUMMY RIVET 4,0X12 ALU
-
9900050000811 EXHAUST HARDWARE KIT 11-14EXHAUST HARDWARE KIT 11-14
