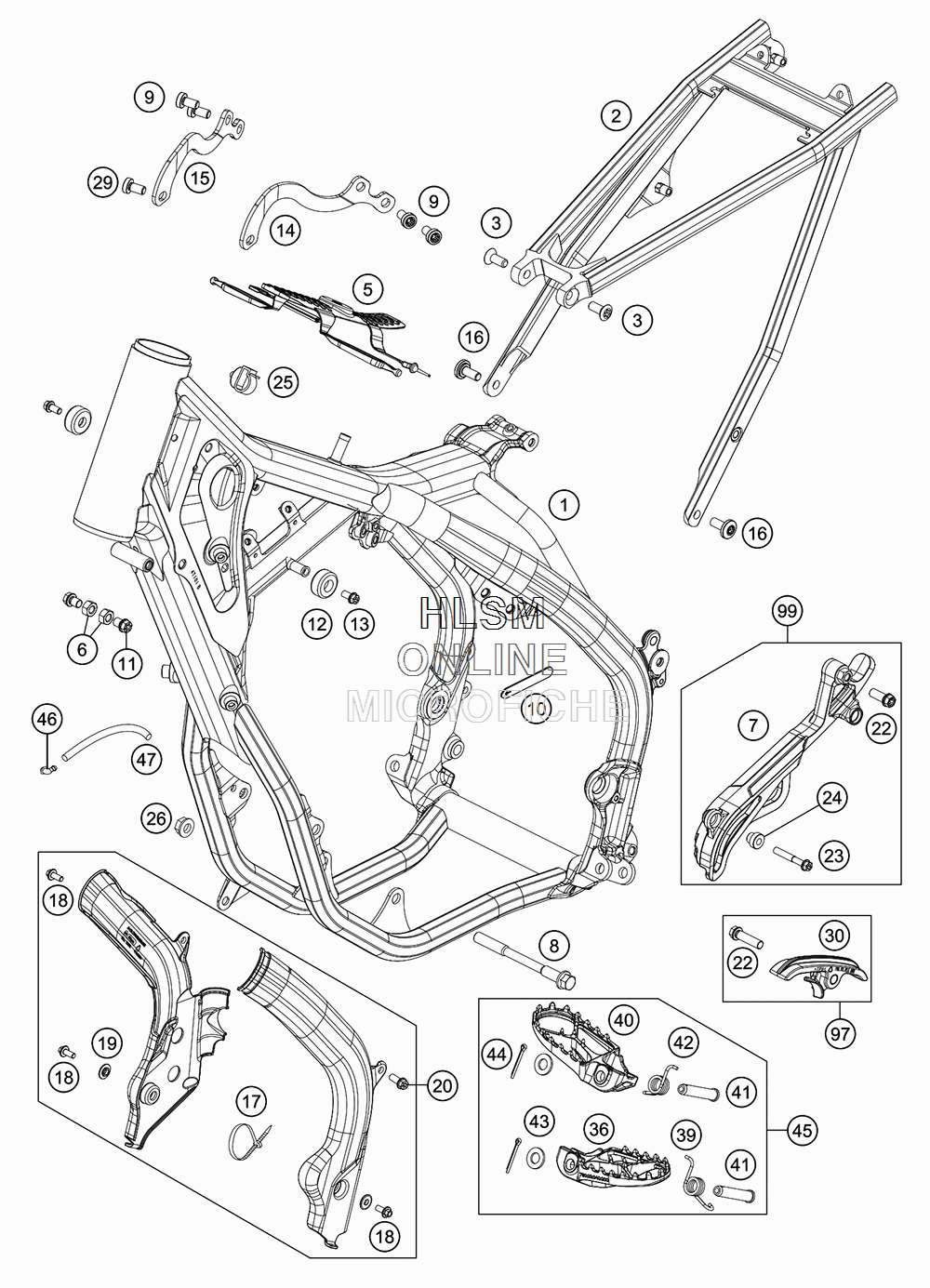

FRAME для Ktm 300 XC-WSD - 2017 года выпуска
-
№АртикулНазвание
-
155403101000E B FRAME "554 Q2" EL. ORANGEB FRAME "554 Q2" EL. ORANGE
-
279003002000 SUBFRAMESUBFRAME
-
30019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
579607012000 TANK REST RUBBERTANK REST RUBBER
-
60934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
755403096000 FRONT CHAIN GUARD 250/300FRONT CHAIN GUARD 250/300
-
854603013000 ENGINE BRAC.SCR. M10X105 WS=13ENGINE BRAC.SCR. M10X105 WS=13
-
90035080156S AH-COLLAR SCREW M8X15 TORX45AH-COLLAR SCREW M8X15 TORX45
-
1060011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
1159001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
1250307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
130026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
-
1455403113000 ENGINE BRACE LEFTENGINE BRACE LEFT
-
1555403114000 ENGINE BRACE RIGHTENGINE BRACE RIGHT
-
1679003003000 SPECIAL SCREW M8X18 TORX45 SSSPECIAL SCREW M8X18 TORX45 SS
-
1744011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
1744011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
180014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
1954803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
200025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
220025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
230025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
240125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2558111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
290035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
3079003053000 CHAIN SLIDER LOWER PART CPL.CHAIN SLIDER LOWER PART CPL.
-
3679603040000 FOOTREST L/S EXCFOOTREST L/S EXC
-
3979003045000 FOOTREST SPRING L/SFOOTREST SPRING L/S
-
4079603041000 FOOTREST R/S EXCFOOTREST R/S EXC
-
4154803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
4279003044000 FOOTREST SPRING R/SFOOTREST SPRING R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4579603040033 FOOTREST-SETFOOTREST-SET
-
4651030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
957900309400033 FRAME PROTECTION SET BLACKFRAME PROTECTION SET BLACK
-
9779003053010 CHAIN SLIDING KIT BELOW CPL.16CHAIN SLIDING KIT BELOW CPL.16
-
9950403096010 SPROCKET COVER KITSPROCKET COVER KIT
