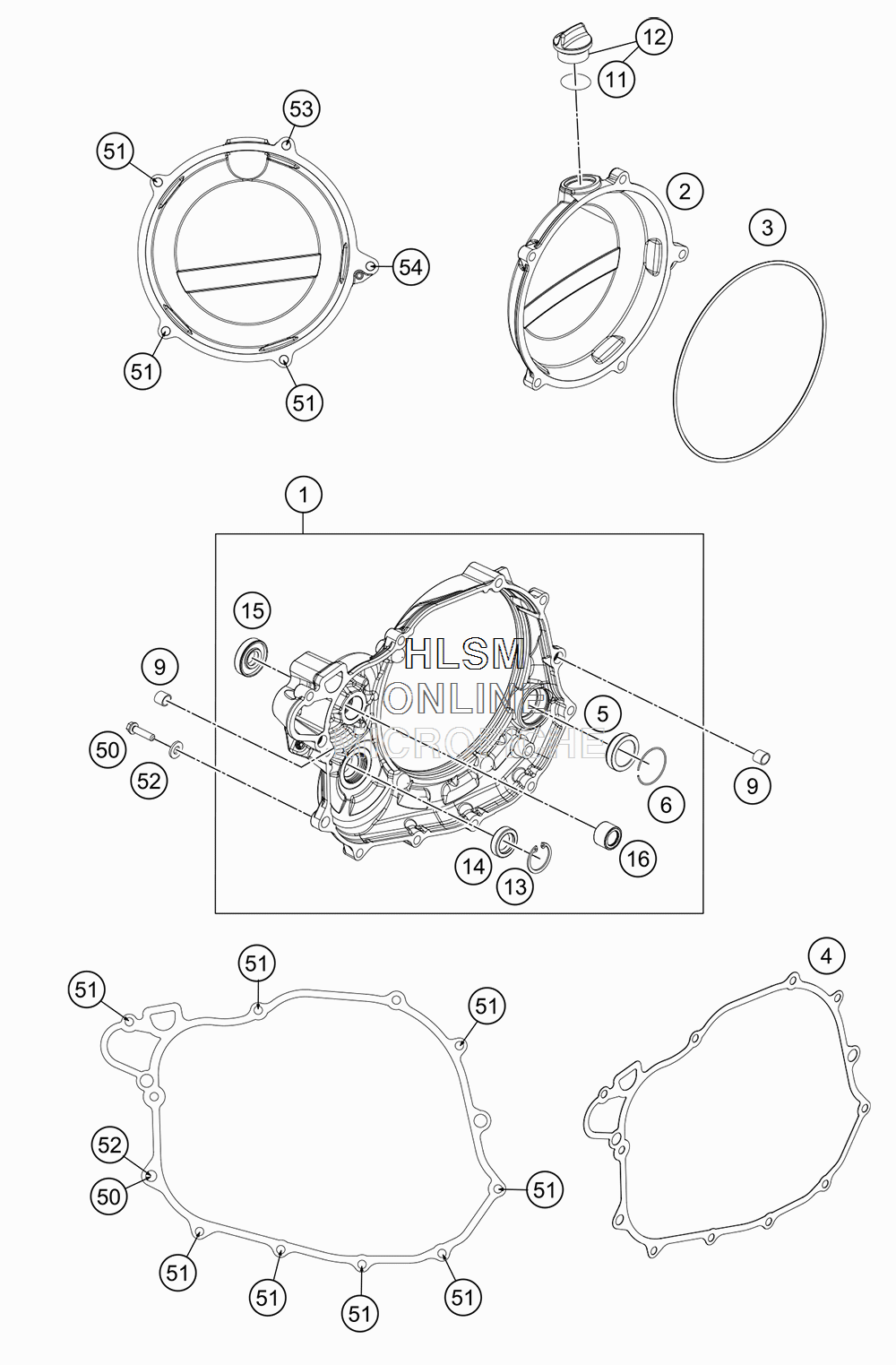

CLUTCH COVER для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
176430001044 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
27813002600015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
378130027000 GASKET - CLUTCH OUTER COVERGASKET - CLUTCH OUTER COVER
-
478130125000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
578030095100 OIL LEVEL GLASS VITONOIL LEVEL GLASS VITON
-
661030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
110770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
1258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
130472024120 CIRCLIP DIN0472-24X1.2CIRCLIP DIN0472-24X1.2
-
140760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
150760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
160618121912 NEEDLE BUSH NK1212NEEDLE BUSH NK1212
-
5078030080000 LOCATING SCREWLOCATING SCREW
-
510025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
5258030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
530025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
540025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
