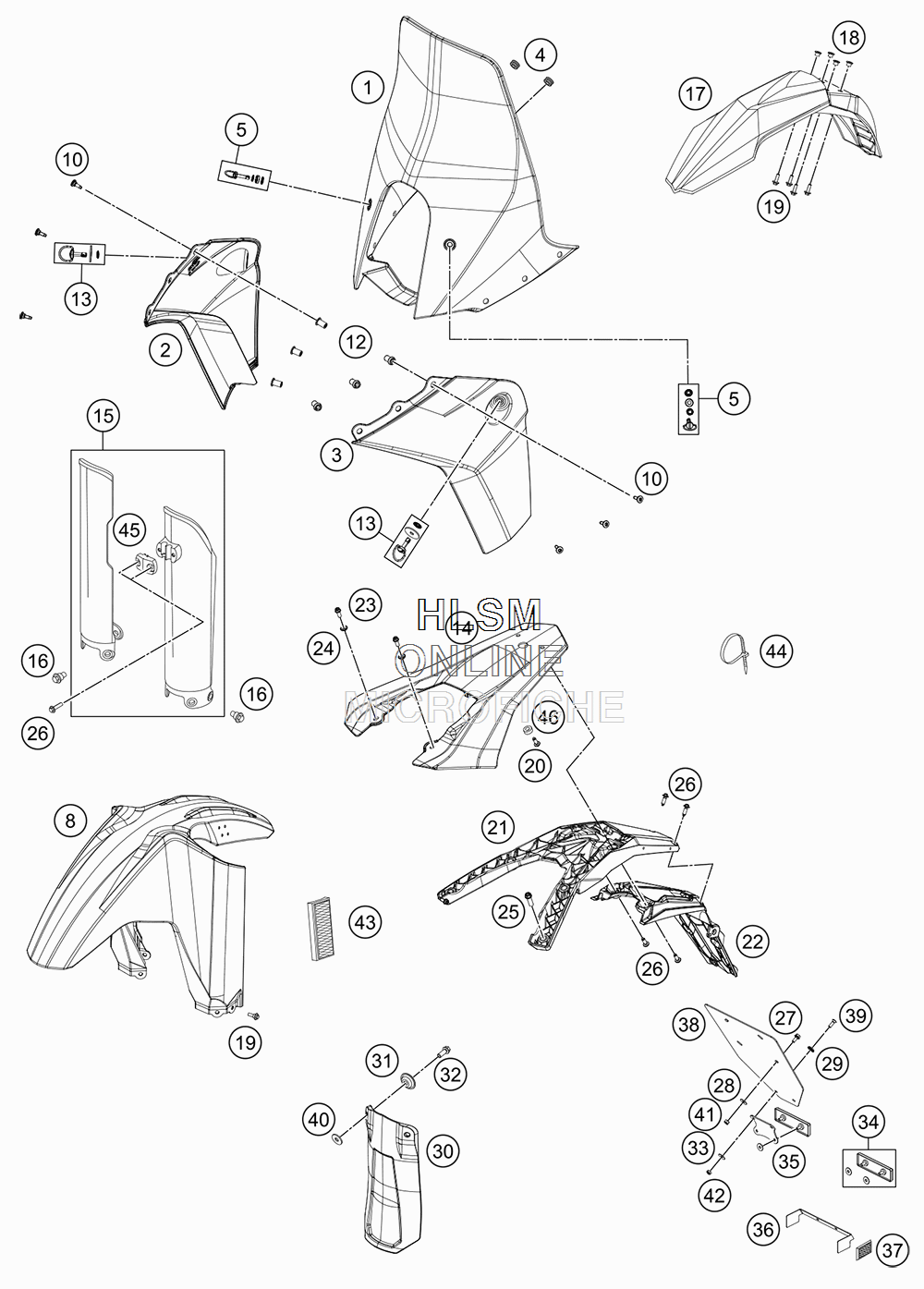

MASK- FENDERS для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
176408008000 WINDSHIELDWINDSHIELD
-
27640805100028A SPOILER R/S WHITESPOILER R/S WHITE
-
37640805000028A SPOILER L/S WHITESPOILER L/S WHITE
-
431008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
576408008030 QUICK RELEASE CONNECTOR CPL.QUICK RELEASE CONNECTOR CPL.
-
876408010000 FRONT FENDER CPL.FRONT FENDER CPL.
-
1069008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
1260008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
1376408008130 QUICK RELEASE CONNECTOR CPL.QUICK RELEASE CONNECTOR CPL.
-
147640801300028A REAR PART WHITEREAR PART WHITE
-
155900109410028 FORK PROTECT. L/S+R/S WHITEFORK PROTECT. L/S+R/S WHITE
-
1659001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
177730821000028 FRONT FENDER WHITEFRONT FENDER WHITE
-
1854808020000 SPACER BUSHINGSPACER BUSHING
-
190024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
200017060305 SPECIAL SCREW K60X30 WS=6SPECIAL SCREW K60X30 WS=6
-
2176408016000 NUMBER PLATE CARRIERNUMBER PLATE CARRIER
-
2276508016050 NUMBER PLATE LO. PARTNUMBER PLATE LO. PART
-
230025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
2476508043050 COLLAR BUSHINGCOLLAR BUSHING
-
250025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
260017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
270024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
280125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2940006006000 WASHER 6MMWASHER 6MM
-
3076506010100 SPLASH PROTECTORSPLASH PROTECTOR
-
3172210079000 BUCKETBUCKET
-
320025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
330125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
3458412080000 REFLECTOR REDREFLECTOR RED
-
3558412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
3662512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
3716512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
3860012081200 LICENCE FITTINGLICENCE FITTING
-
390966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
400021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
410985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
420985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
4358412080100 REFLECTOR YELLOWREFLECTOR YELLOW
-
4444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
4476311093200 CABLE TIE 200MMCABLE TIE 200MM
-
455900108510028 CLAMP F.SPEED.CABLE D=6MMCLAMP F.SPEED.CABLE D=6MM
-
4676408013010 SLEEVESLEEVE
