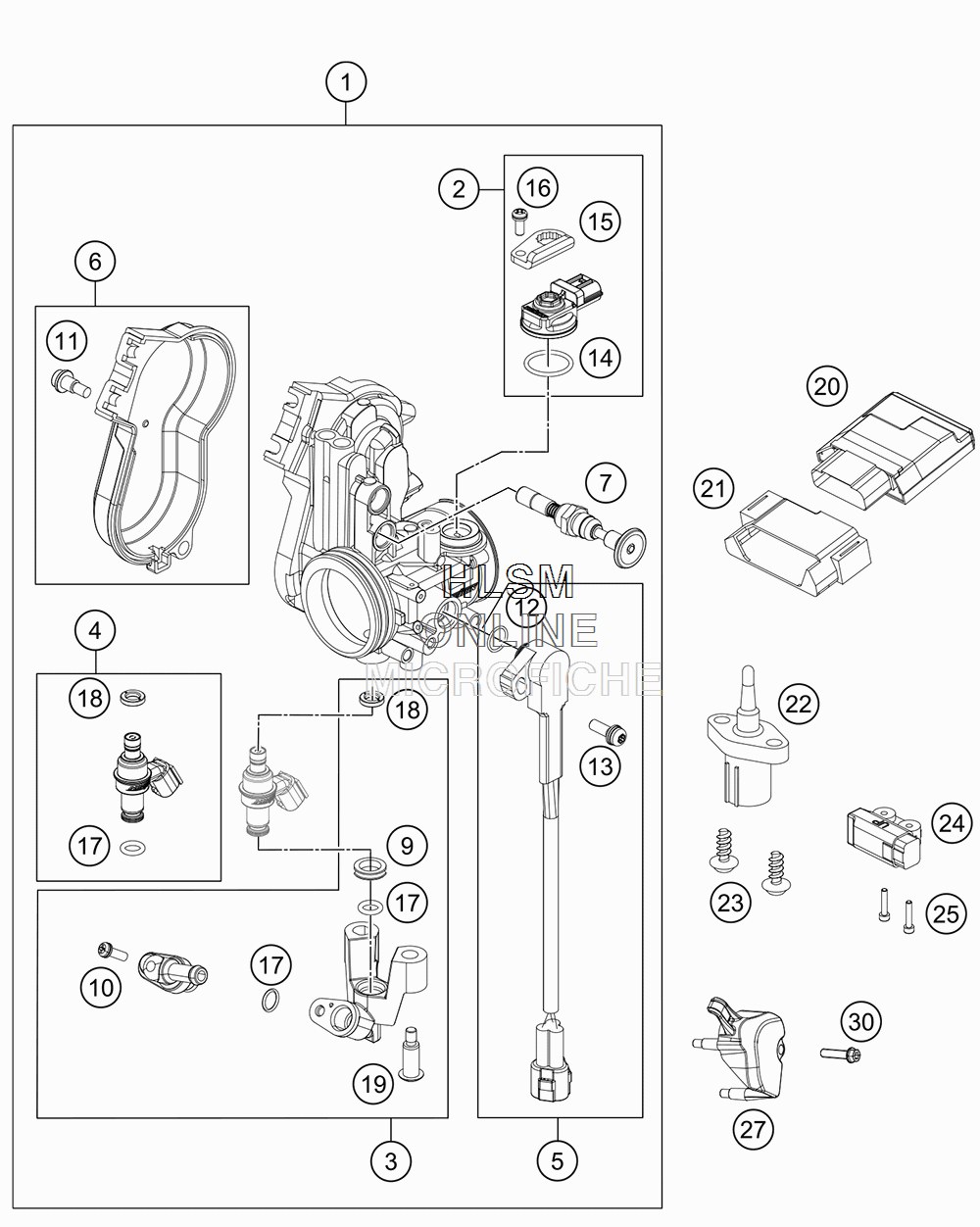

THROTTLE BODY для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
176441001000 THROTTLE BODYTHROTTLE BODY
-
275041085044 MAP SENSOR CPL.MAP SENSOR CPL.
-
377741013044 FUEL RAIL CPL.FUEL RAIL CPL.
-
477741023044 INJECTOR KIT CPL.INJECTOR KIT CPL.
-
577741077044 TPS CPL.TPS CPL.
-
681241056044 THROTTLE COVER CPL.THROTTLE COVER CPL.
-
781241060000 STARTER VALVE COMP.STARTER VALVE COMP.
-
977741023030 SEAL RINGSEAL RING
-
1075041013010 SCREW SHOULDERSCREW SHOULDER
-
1181241056020 SPECIAL SCREW AHSPECIAL SCREW AH
-
1261041077010 O-RING THROTTLE POS. SENSORO-RING THROTTLE POS. SENSOR
-
1381241077030 SPECIAL SCREWSPECIAL SCREW
-
1475041085010 O-RINGO-RING
-
1577741085020 PLATEPLATE
-
1681241085030 SPECIAL SCREWSPECIAL SCREW
-
1775041023020 O-RING 7,2X2,2O-RING 7,2X2,2
-
1875041023010 SEAL RINGSEAL RING
-
1975041013060 SCREW SHOULDERSCREW SHOULDER
-
2077741031000 ELECTRONIC CONTROL UNITELECTRONIC CONTROL UNIT
-
2177741031050 RUBBER BRACKET ECURUBBER BRACKET ECU
-
2261041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
230912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
2461041088000 ROLLOVER SENSORROLLOVER SENSOR
-
250025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2777741077050 PROTECTION CAP TPSPROTECTION CAP TPS
-
300025050256 HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
