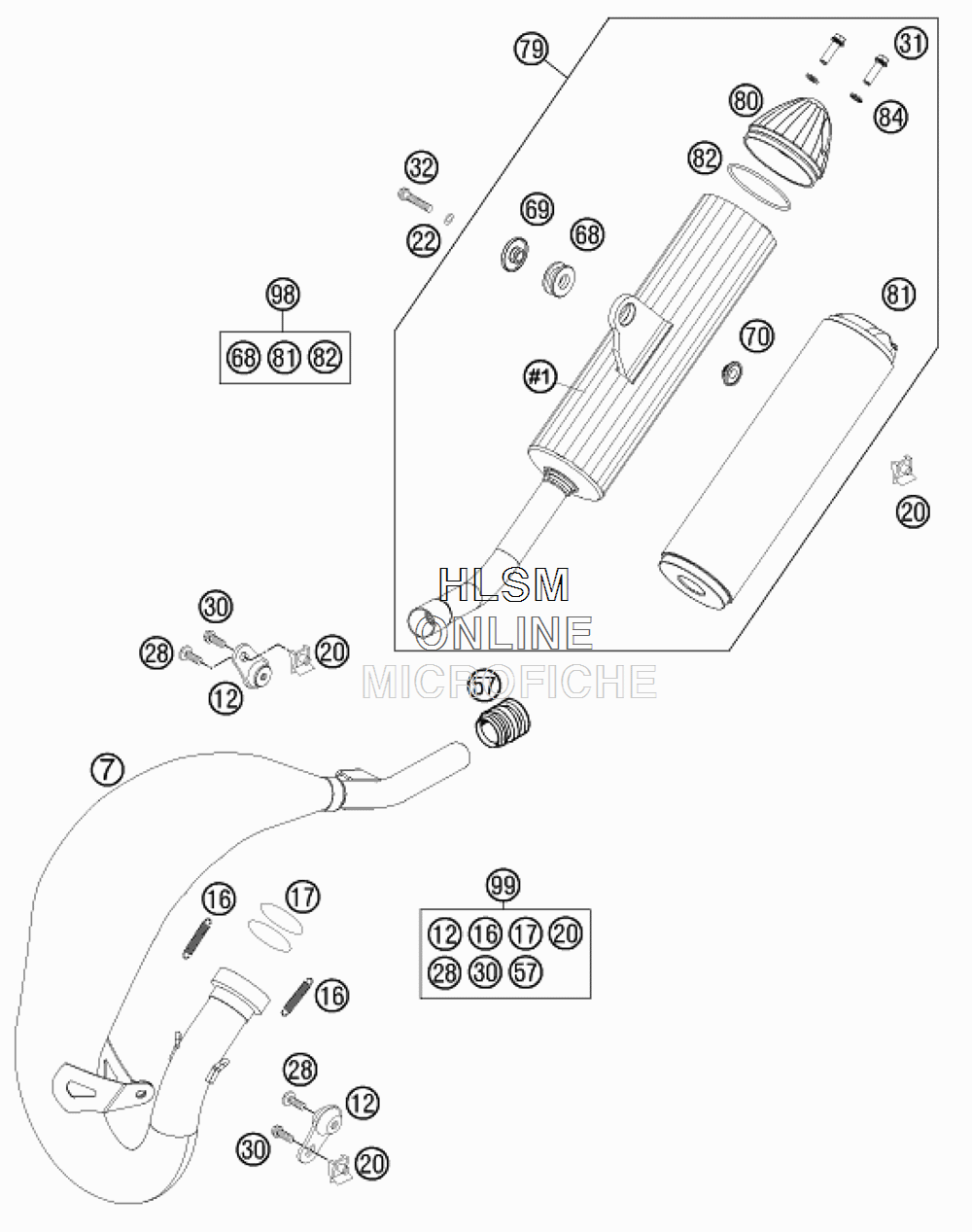

EXHAUST SYSTEM для Ktm 85 SX 17/14 - 2017 года выпуска
-
№АртикулНазвание
-
747005007100 EXHAUST PIPEEXHAUST PIPE
-
1250305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
1650305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
170770380030 O-RING 38,00X3,00 VITONO-RING 38,00X3,00 VITON
-
2054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
220137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
280024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
300025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
310025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
320025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
5754605057000 RUBBER SLEEVE D=21MM/23MM '93RUBBER SLEEVE D=21MM/23MM '93
-
6877205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
6946205169000 BUSHING 7.5X12X28X7.6BUSHING 7.5X12X28X7.6
-
7077205069000 BUSHING 7.5X12X20X8.2BUSHING 7.5X12X20X8.2
-
7947005079100 SILENCERSILENCER
-
8050305079169 SILENCER ENDCAP SX REARSILENCER ENDCAP SX REAR
-
8150305079160 STUFFING YARN 160 GRAMSTUFFING YARN 160 GRAM
-
820770055020 O-RING 55,00X2,00 NBR70O-RING 55,00X2,00 NBR70
-
8450233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
9800050000804 SILENCER REP . KIT 160 GRAMSILENCER REP . KIT 160 GRAM
-
9900050000812 EXHAUST HARDWARE KIT MINIEXHAUST HARDWARE KIT MINI
