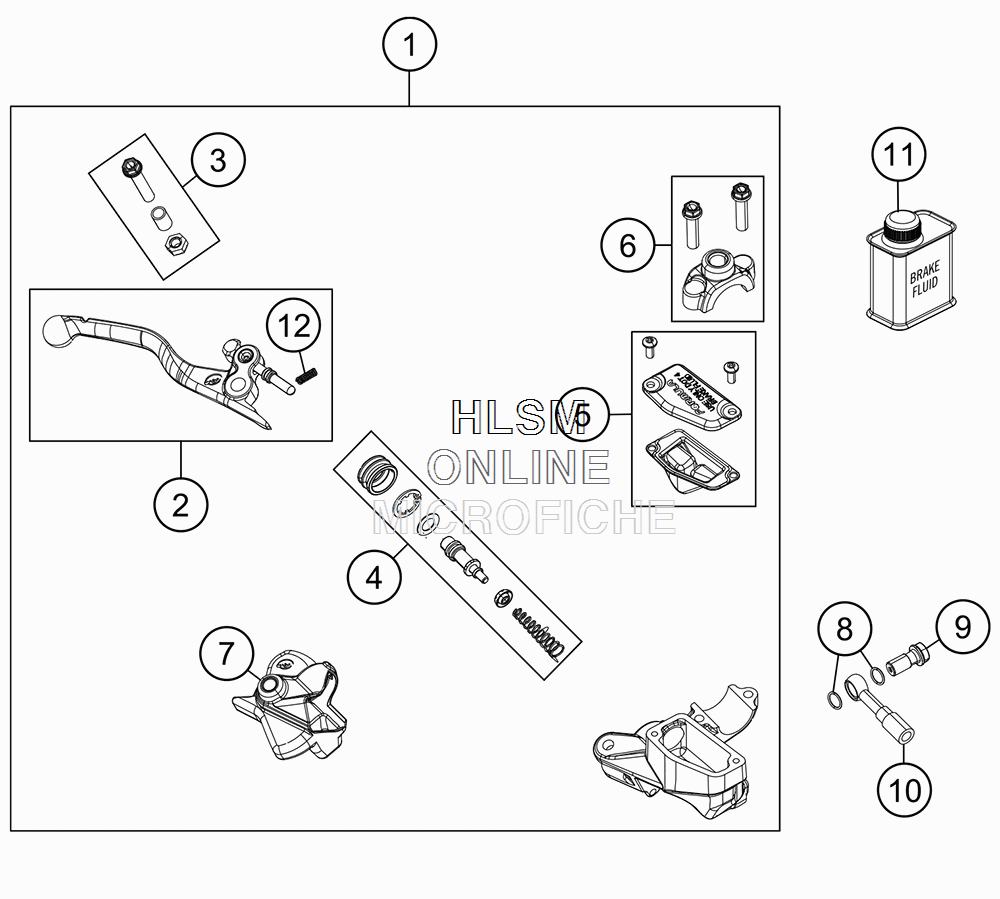

HAND BRAKE CYLINDER для Ktm 85 SX 17/14 - 2017 года выпуска
-
№АртикулНазвание
-
147113001100 HAND BRAKE CYLINDER CPL. 10 MMHAND BRAKE CYLINDER CPL. 10 MM
-
272013002000 LEVER CPL.LEVER CPL.
-
370002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
472002032000 REP. KIT PISTON 10MMREP. KIT PISTON 10MM
-
570013003000 COVER HAND BRAKE CYLINDER CPL.COVER HAND BRAKE CYLINDER CPL.
-
672013005000 CLAMPCLAMP
-
770013004000 MUDCOVER HANDBRAKE LEVERMUDCOVER HANDBRAKE LEVER
-
80770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
947013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
1070013010100 BRAKE HOSE FRONT 1065MMBRAKE HOSE FRONT 1065MM
-
1100062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
1272002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
