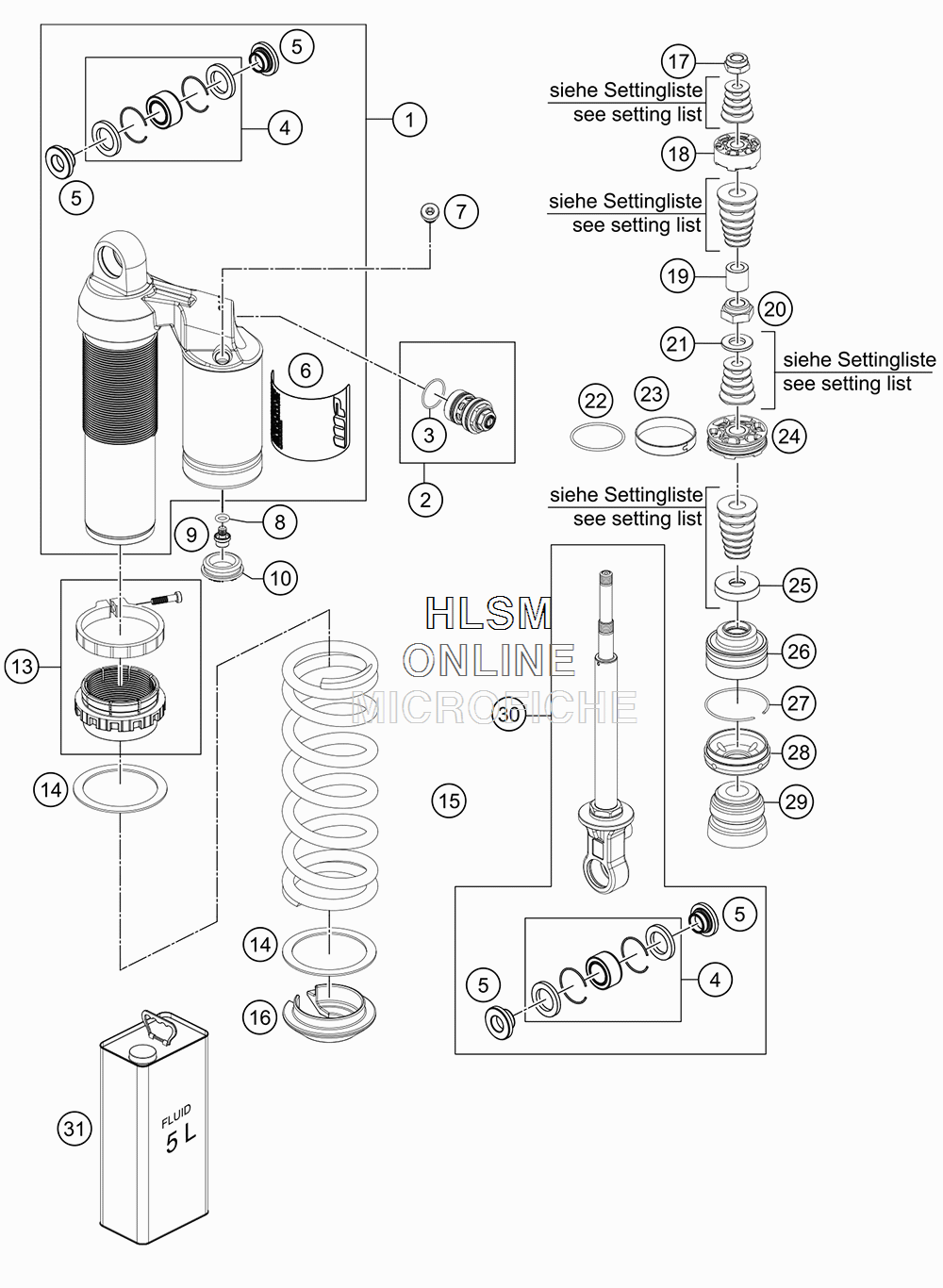

SHOCK ABSORBER DISSASSEMBLED для Ktm 85 SX 17/14 - 2017 года выпуска
-
№АртикулНазвание
-
146181019S2 MONOSHOCK CASE CPL.MONOSHOCK CASE CPL.
-
250181101S10 DCC SX85 2017 CPL.DCC SX85 2017 CPL.
-
350180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
546180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
652000087 STICKER WP MONOSHOCKSTICKER WP MONOSHOCK
-
750180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
846810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
936120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1046811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1346181013S ADJUSTING NUT PLASTIC CPL.ADJUSTING NUT PLASTIC CPL.
-
1450180410 INTERM.RING D=58INTERM.RING D=58
-
1591010161S SPRING (59) 215 40 N/MM D=9,5SPRING (59) 215 40 N/MM D=9,5
-
1591010240S SPRING (59) 215 35 N/MM D=9,25SPRING (59) 215 35 N/MM D=9,25
-
1591010271S SPRING (59) 215 30 N/MMSPRING (59) 215 30 N/MM
-
1646180349 SPRING WASHER H=15 D=28SPRING WASHER H=15 D=28
-
1746180356 PISTON ROD NUT M10X1PISTON ROD NUT M10X1
-
1846180744 PISTON D35,4 PDS 2PISTON D35,4 PDS 2
-
1946181025 SANDWIC H BUSH 10X17X17SANDWIC H BUSH 10X17X17
-
2046810474 PISTON ROD NUTPISTON ROD NUT
-
2146811258 RING 12X24X2,5RING 12X24X2,5
-
2246810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
2346811206 PISTON RING 8X46PISTON RING 8X46
-
2446810560 PISTON 6+6D7PISTON 6+6D7
-
2546180337 REBOUND DISC H=4REBOUND DISC H=4
-
2646180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
2746810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
2846180338 CAP D=46 H=9,5CAP D=46 H=9,5
-
2950180276 BUMP RUBBER WP60 D=18-26BUMP RUBBER WP60 D=18-26
-
3046180520S5 MONOSHOCK LOWER PARTMONOSHOCK LOWER PART
-
3150180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
