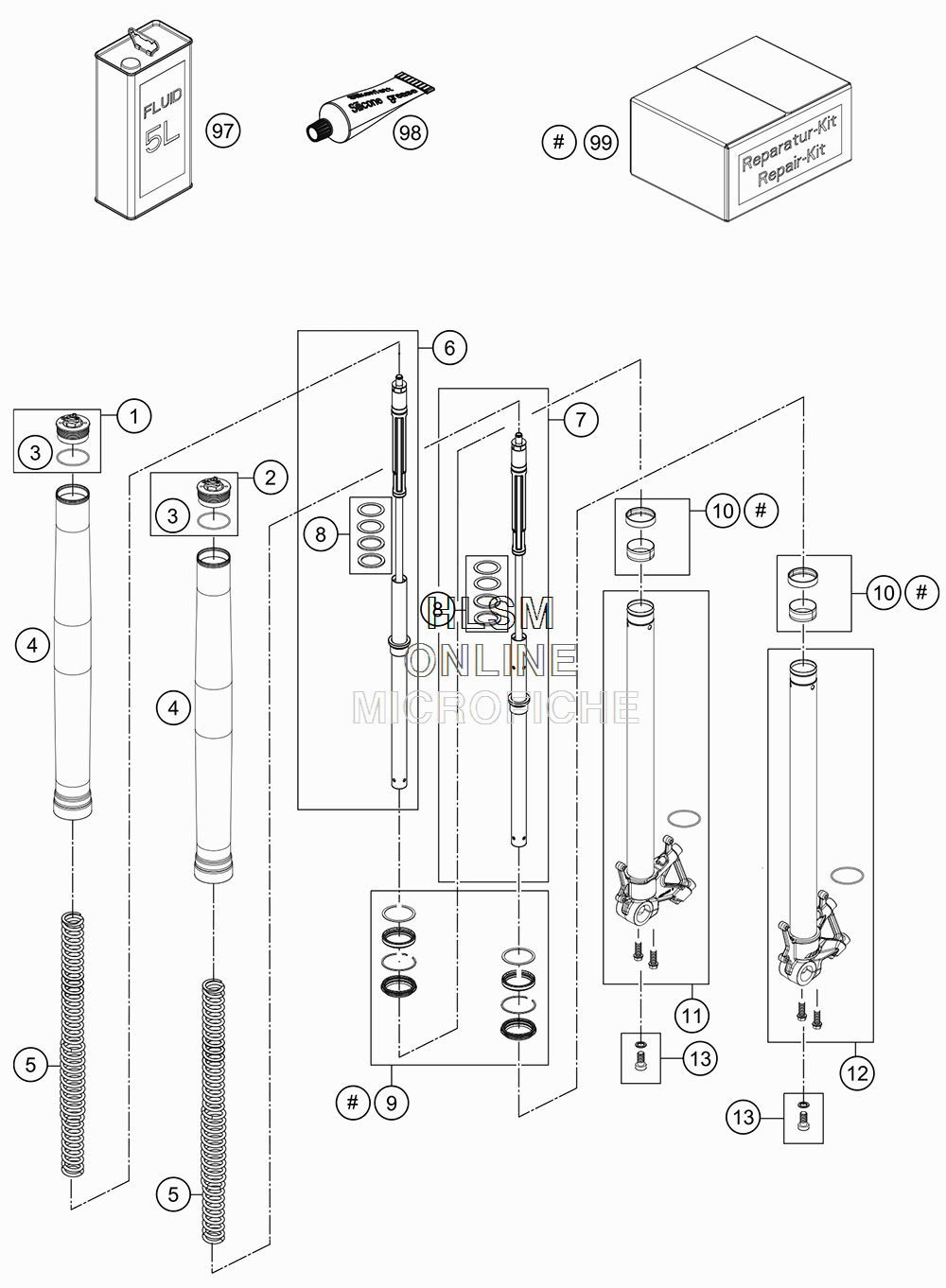

FRONT FORK DISASSEMBLED для Ktm 1090 ADVENTURE R - 2018 года выпуска
-
№АртикулНазвание
-
148600431E3 SCREW CAP M51X1.5 REBSCREW CAP M51X1.5 REB
-
248600431E4 SCREW CAP M51X1,5 COMSCREW CAP M51X1,5 COM
-
346810340 O-RING NBR 45X2O-RING NBR 45X2
-
448601174 OUTER TUBE L=600 D54/D60 2LOUTER TUBE L=600 D54/D60 2L
-
595010082 SPRING D38 L555 6.5 N/MM SETSPRING D38 L555 6.5 N/MM SET
-
648601728S1 INSERT RIGHT CPL.INSERT RIGHT CPL.
-
748601729S1 INSERT LEFT CPL.INSERT LEFT CPL.
-
8R14054 REP . KIT SP ACERREP . KIT SP ACER
-
9R14040 GASKET KIT CPL.GASKET KIT CPL.
-
10R14047 REP. KIT GUIDE BUSHINGSREP. KIT GUIDE BUSHINGS
-
1148601305S1 AXLE CLAMP WITH INNER TUBEAXLE CLAMP WITH INNER TUBE
-
1248601304S1 AXLE CLAMP WITH INNER TUBEAXLE CLAMP WITH INNER TUBE
-
1300501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T14034 FUCHS GREASE IPR (250G)FUCHS GREASE IPR (250G)
-
99R14063 FORK REP. KIT 48MM OFFROADFORK REP. KIT 48MM OFFROAD
