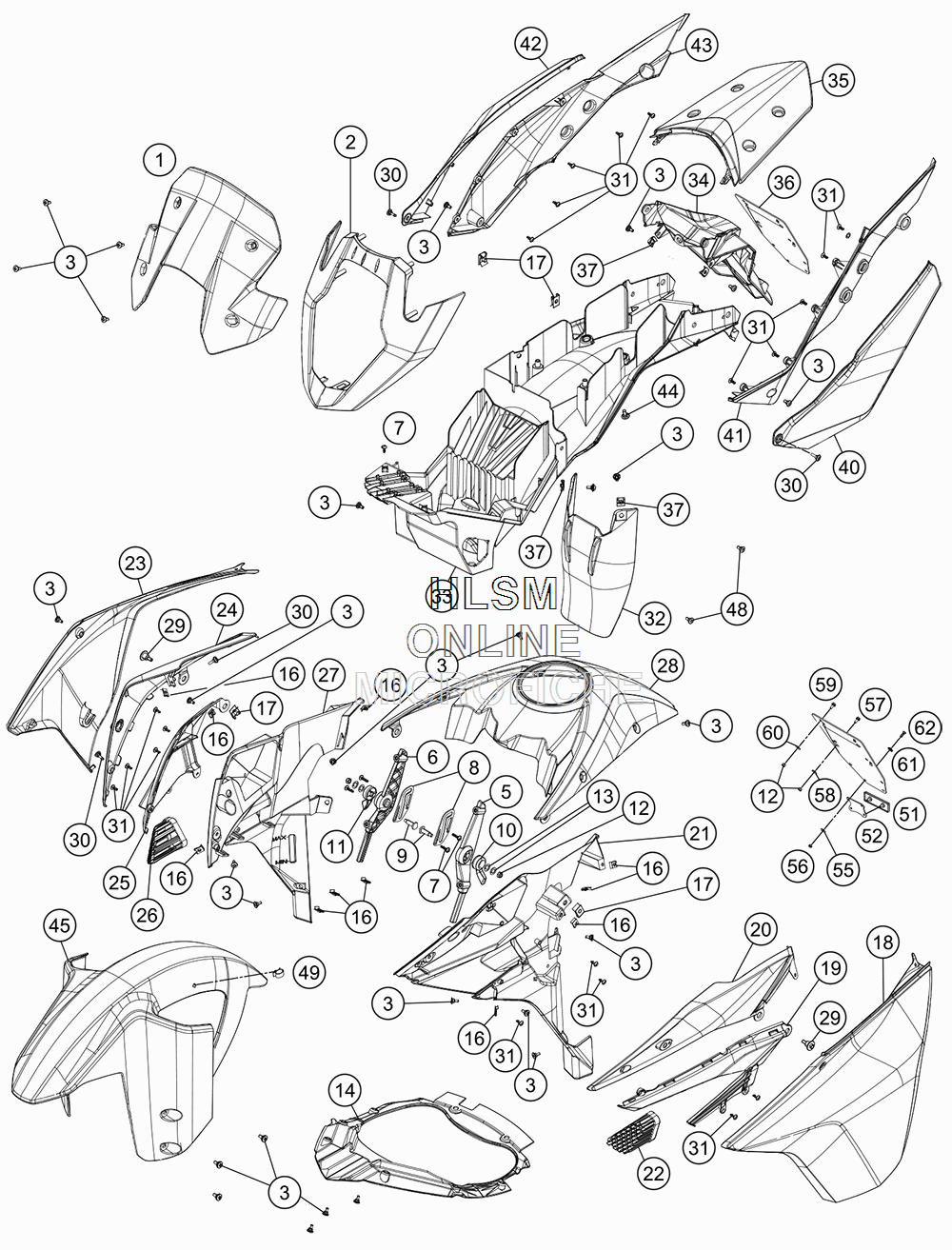

MASK- FENDER для Ktm 1090 ADVENTURE R - 2018 года выпуска
-
№АртикулНазвание
-
160308108500 WIND SHIELD SHORT USAWIND SHIELD SHORT USA
-
26030800100033 HEADLIGHT MASKHEADLIGHT MASK
-
369008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
560308008050 WIND SHIELD SUPPORT L/SWIND SHIELD SUPPORT L/S
-
660308008051 WIND SHIELD SUPPORT R/SWIND SHIELD SUPPORT R/S
-
70081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
860308008055 SLIDING SHEET WIND SHIELDSLIDING SHEET WIND SHIELD
-
960308008056 TENSION BOLTTENSION BOLT
-
1060308008052 TENSION LEVER L/STENSION LEVER L/S
-
1160308008053 TENSION LEVER R/STENSION LEVER R/S
-
120985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
130093081508 BELLEVILLE SPRING 8,2X15X0,8BELLEVILLE SPRING 8,2X15X0,8
-
1460308005000 COCKPIT COVER LOWER SIDECOCKPIT COVER LOWER SIDE
-
1669008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
1754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
186030805000028 TANK SPOILER LEFTTANK SPOILER LEFT
-
196030800205033 AIR INTAKE L/SAIR INTAKE L/S
-
206030800200028 FAIRING LEFTFAIRING LEFT
-
2160308025100 INNER LINING LEFTINNER LINING LEFT
-
2260308021050 COVERING GRID AIR INTAKE L/SCOVERING GRID AIR INTAKE L/S
-
236030805100028 TANKSPOILER RIGHTTANKSPOILER RIGHT
-
246030800300028 FAIRING RIGHTFAIRING RIGHT
-
256030800305033 AIR INTAKE R/SAIR INTAKE R/S
-
2660308031050 COVERING GRID AIR INTAKE RIGHTCOVERING GRID AIR INTAKE RIGHT
-
2760308026100 INNER LINING RIGHTINNER LINING RIGHT
-
286030803000030 TANK COVER BLACK 17TANK COVER BLACK 17
-
2960035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
3069008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
310081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
3260304050000 SPLASH PROTECTIONSPLASH PROTECTION
-
3360308019200 TAIL END LOWER PARTTAIL END LOWER PART
-
3460308015000 NUMBER PLATE SUPPORTNUMBER PLATE SUPPORT
-
356030801300033 REAR FENDERREAR FENDER
-
3660012081200 LICENCE FITTINGLICENCE FITTING
-
3754603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
406030804100028 TAIL SPOILER LEFT WHITETAIL SPOILER LEFT WHITE
-
416030804300033 REAR SIDE COVER LEFTREAR SIDE COVER LEFT
-
426030804200028 TAIL SPOILER RIGHT WHITETAIL SPOILER RIGHT WHITE
-
436030804400033 REAR SIDE COVER RIGHTREAR SIDE COVER RIGHT
-
4483008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
456030801000033 FRONT FENDERFRONT FENDER
-
480025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
4958111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5158412080400 REAR REFLECTOR REDREAR REFLECTOR RED
-
5258412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
550125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
560985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
570024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
580021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
590024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
600125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
6140006006000 WASHER 6MMWASHER 6MM
-
620966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
