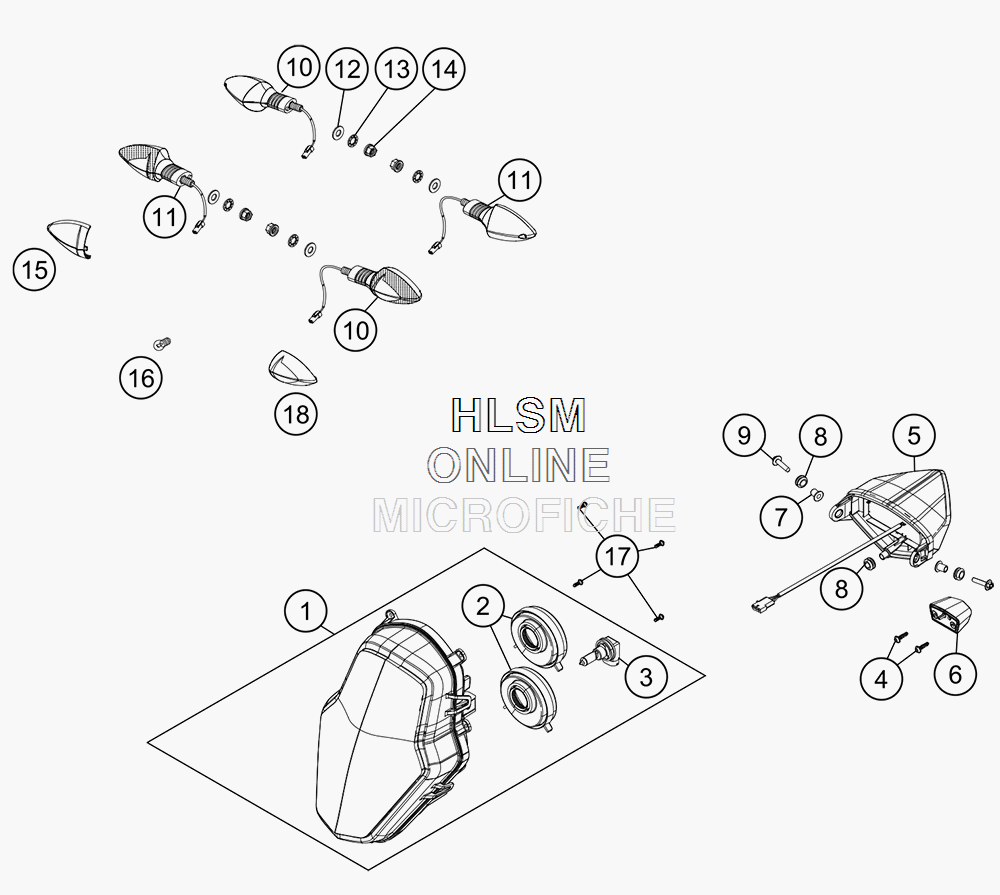

LIGHTING SYSTEM для Ktm 1090 ADVENTURE R - 2018 года выпуска
-
№АртикулНазвание
-
160314001100 HEAD LIGHT TFLHEAD LIGHT TFL
-
260314001050 CAP H11CAP H11
-
360314003000 LAMP H11 12V 55WLAMP H11 12V 55W
-
40081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
560314040100 REAR LIGHTREAR LIGHT
-
660314047000 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
760308006000 COLLAR BUSHING 6,2X9,2X15X12,5COLLAR BUSHING 6,2X9,2X15X12,5
-
860006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
90024060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1078114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
1178114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
120433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
130797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
1458414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
1578114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
1660114027000 BULB 12V ORANGEBULB 12V ORANGE
-
170081045121 SCREW FOR PLASTIC K45X12SCREW FOR PLASTIC K45X12
-
1878114027000 FLASHER LENS FRO.L/S-REAR R/SFLASHER LENS FRO.L/S-REAR R/S
