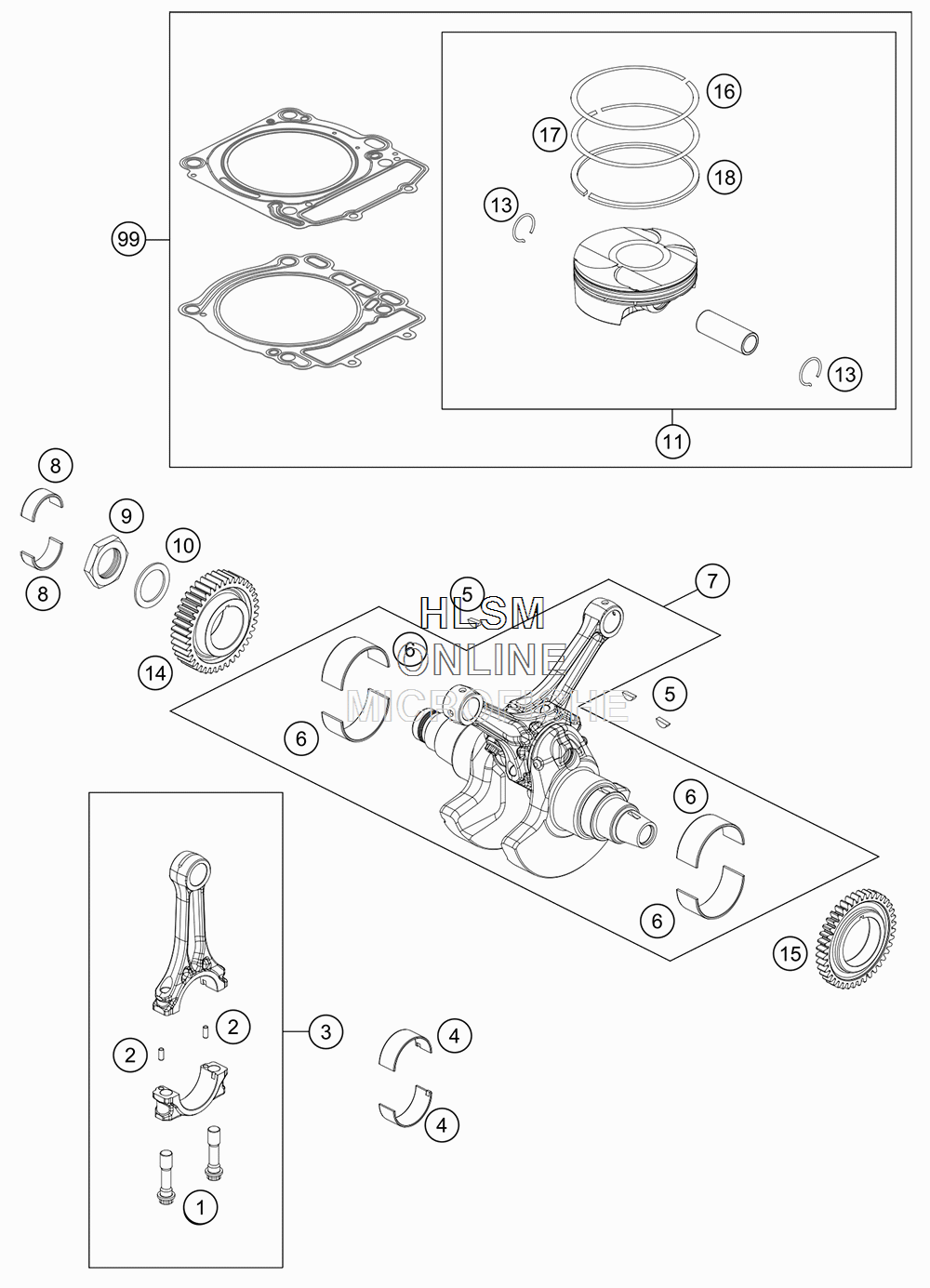

CRANKSHAFT- PISTON для Ktm 1290 SUPER DUKE GT BLACK - 2018 года выпуска
-
№АртикулНазвание
-
161230015100 CONNECTING ROD SCREW MJ10X1CONNECTING ROD SCREW MJ10X1
-
20402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
361430015000 CON RODCON ROD
-
4612300151101 SPLIT BEAR. BUSH REDSPLIT BEAR. BUSH RED
-
4612300151102 SPLIT BEAR. BUSH BLUESPLIT BEAR. BUSH BLUE
-
4612300151103 SPLIT BEAR. BUSH YELLOWSPLIT BEAR. BUSH YELLOW
-
50888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
6612300820001 SPLIT BEAR. BUSH REDSPLIT BEAR. BUSH RED
-
6612300820002 SPLIT BEAR. BUSH BLUESPLIT BEAR. BUSH BLUE
-
6612300820003 SPLIT BEAR. BUSH YELLOWSPLIT BEAR. BUSH YELLOW
-
761430018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
860030026010 BUSHING BOWL 28X32X13BUSHING BOWL 28X32X13
-
960032009050 HH-NUT M33X1,5 L/S WS46HH-NUT M33X1,5 L/S WS46
-
1060032009040 WASHER 33,2X46X2WASHER 33,2X46X2
-
1161430007000 PISTON CPL. SIZE IPISTON CPL. SIZE I
-
1161430007000 PISTON CPL. SIZE IIPISTON CPL. SIZE II
-
1375030074000 CIRCLIP LC4CIRCLIP LC4
-
1461230055000 PRIMARY GEARPRIMARY GEAR
-
1561230056000 DRIVE WHEEL BALANCER SHAFTDRIVE WHEEL BALANCER SHAFT
-
1661330030000 RECTANGULAR RINGRECTANGULAR RING
-
1761330031000 TAPERED COMP. PISTON RINGTAPERED COMP. PISTON RING
-
1861330032100 OIL SCRAPER RING D108OIL SCRAPER RING D108
-
9961430007010 PISTON KIT SIZE IPISTON KIT SIZE I
-
9961430007010 PISTON KIT SIZE IIPISTON KIT SIZE II
