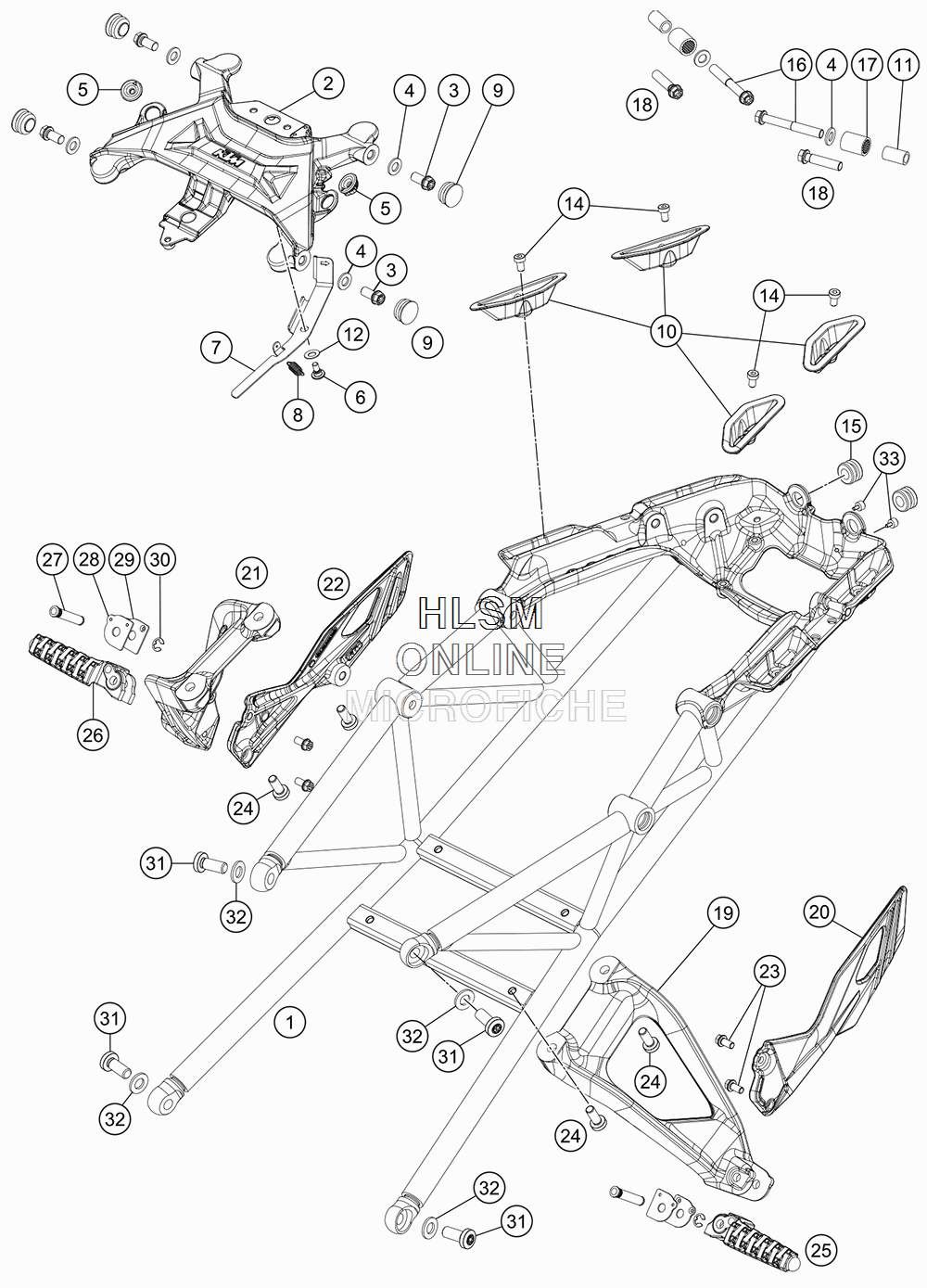

SUBFRAME для Ktm 1290 SUPER DUKE GT BLACK - 2018 года выпуска
-
№АртикулНазвание
-
16140300210033 TAILBOOM BLACKTAILBOOM BLACK
-
26140300213091 CROSS STIFFENER BACKCROSS STIFFENER BACK
-
30025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
40125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
547106003160 QUICK CONNECTOR CLUTCHQUICK CONNECTOR CLUTCH
-
669013099050 SCREW F. EXPANSION TANKSCREW F. EXPANSION TANK
-
761407050050 SEAT LOCK PLATESEAT LOCK PLATE
-
869008025080 SPRING F. REAR SEAT LOCKSPRING F. REAR SEAT LOCK
-
961303088000 PLUG SFL 22X0,8-3,0PLUG SFL 22X0,8-3,0
-
1061403002055 SHELL KIT SIDECASESHELL KIT SIDECASE
-
1161407049000 BUSHING 8.4X12X21.5BUSHING 8.4X12X21.5
-
1261403002032 WAVE SPRINGWAVE SPRING
-
140984060103 AH SCREW DIN7984-M 6X10AH SCREW DIN7984-M 6X10
-
1561013013000 RUBBER BUSHRUBBER BUSH
-
160025080606 HH COLLAR SCREW M8X60HH COLLAR SCREW M8X60
-
1760307048000 RUBBER SEAT-CONTACT SURFACERUBBER SEAT-CONTACT SURFACE
-
180025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
196140304800033S LEFT PILLION STEP HOLDERLEFT PILLION STEP HOLDER
-
206140304805033S LEFT PILLION HEEL GUARDLEFT PILLION HEEL GUARD
-
216140304900033S RIGHT PILLION STEP HOLDERRIGHT PILLION STEP HOLDER
-
226140304905033S RIGHT PILLION HEEL GUARDRIGHT PILLION HEEL GUARD
-
230025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
240035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
256900305003333S FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
266900305103333S FOOTREST REAR R/S CPL.FOOTREST REAR R/S CPL.
-
2760003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
2860003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
2960003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
300799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
310035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
320125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
3361414040010 RUBBER MOUNTINGRUBBER MOUNTING
