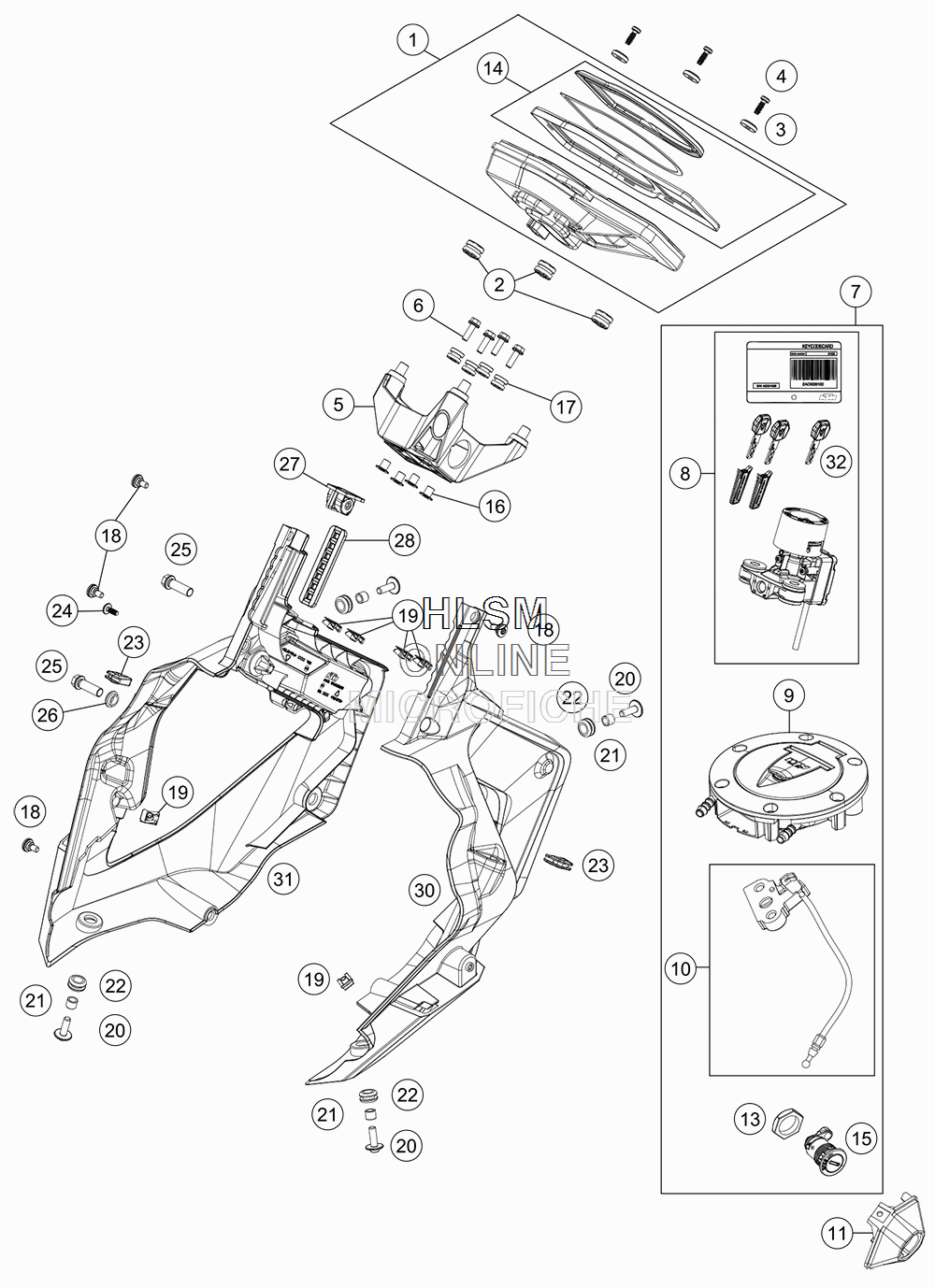

INSTRUMENTS/LOCK SYSTEM для Ktm 1290 SUPER DUKE GT BLACK - 2018 года выпуска
-
№АртикулНазвание
-
160414069000 SPEEDOMETERSPEEDOMETER
-
261314069051 DAMP. COMPONENT SPEEDOMETERDAMP. COMPONENT SPEEDOMETER
-
360308045000 SPECIAL WASHER 4.5X16SPECIAL WASHER 4.5X16
-
40081250141 SCREW FOR PLASTIC PT K50X14T25SCREW FOR PLASTIC PT K50X14T25
-
561414062000 INSTRUMENT HOLDERINSTRUMENT HOLDER
-
60025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
761411066044 LOCK SET CPL.LOCK SET CPL.
-
861311066100 IGNITION LOCKIGNITION LOCK
-
961407008000 TANK CAPTANK CAP
-
1061307050000 SEAT LOCK MECHANISM CPL.SEAT LOCK MECHANISM CPL.
-
1161307055000 SOPPORT SEAT LOCKSOPPORT SEAT LOCK
-
1369007050050 NUT SEAT LOCK M22X1,5NUT SEAT LOCK M22X1,5
-
1460314069050 SPEEDOMETER FRAME CPL.SPEEDOMETER FRAME CPL.
-
1561307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
-
1661414062010 BUSHING 7X5,5X9,3BUSHING 7X5,5X9,3
-
1760035069100 RUBBER GROMMET 6,5X9X13MMRUBBER GROMMET 6,5X9X13MM
-
1869008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1969008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2069014017000 SPECIAL SCREW M6X18 ISA30SPECIAL SCREW M6X18 ISA30
-
2169014014000 BUSHING 6,1X9,2X7,5BUSHING 6,1X9,2X7,5
-
2260006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
2360308008057 RUBBER SLEEVERUBBER SLEEVE
-
240081045121 SCREW FOR PLASTIC K45X12SCREW FOR PLASTIC K45X12
-
250025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
2661414011040 BUSHING 8.2/11/4.75BUSHING 8.2/11/4.75
-
2761414011020 CAP FOR MASK CARRIERCAP FOR MASK CARRIER
-
2861408008060 LOCKING RAILLOCKING RAIL
-
3061414010000 MASK CARRIER LEFTMASK CARRIER LEFT
-
3161414011000 MASK CARRIER RIGHTMASK CARRIER RIGHT
-
3260411067000 IGNITION KEY KTMIGNITION KEY KTM
