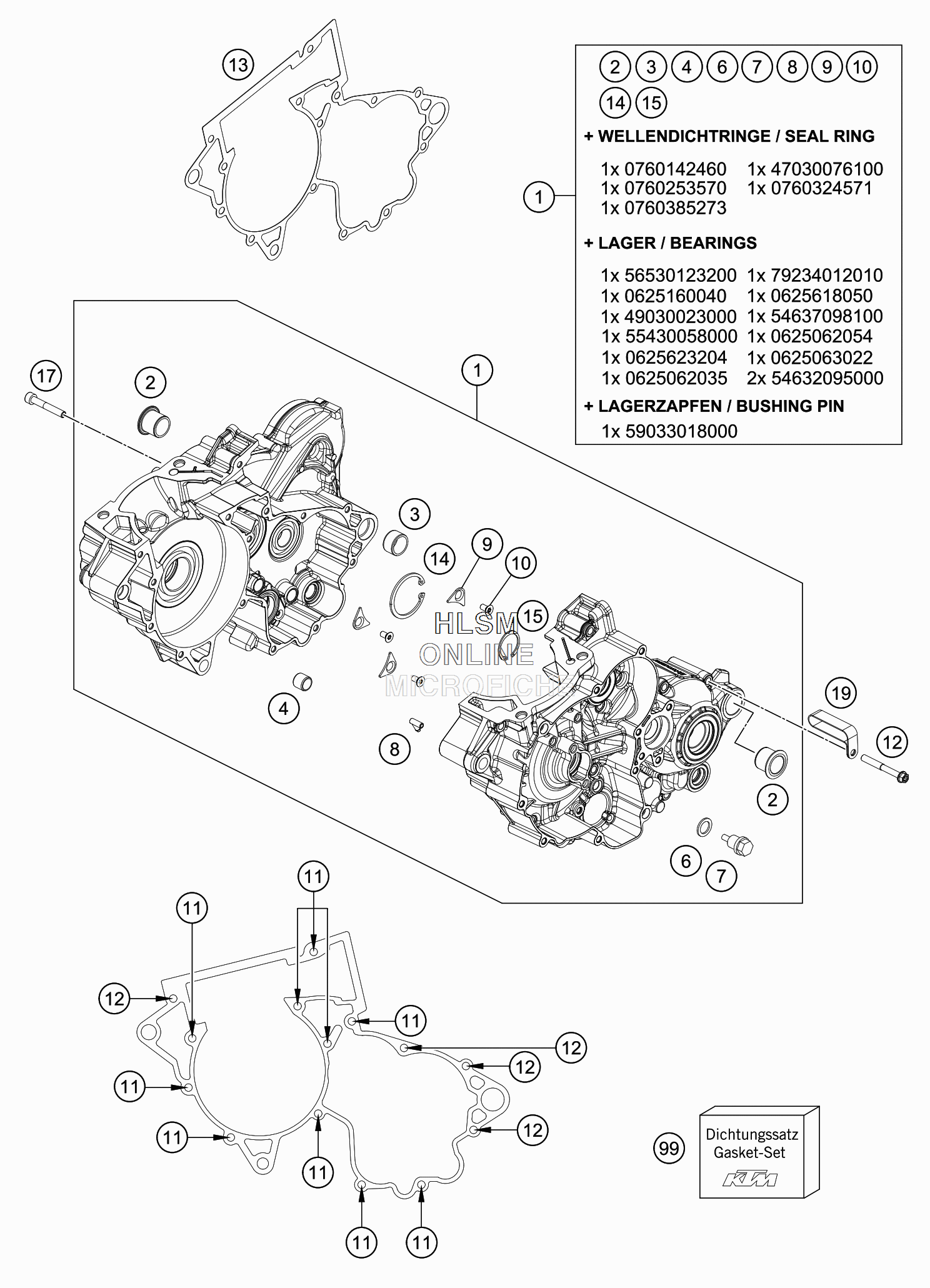

ENGINE CASE для Ktm 250 SX - 2018 года выпуска
-
№АртикулНазвание
-
155430000133 ENGINE CASE CPL.ENGINE CASE CPL.
-
275030010100 CASE BUSHCASE BUSH
-
354830027000 DOWEL 21X12DOWEL 21X12
-
454630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
658038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
758030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
845130022000 ANGLE PIECE 50CCM LCANGLE PIECE 50CCM LC
-
975030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
100019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
110025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
120025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
1355430039000 ENGINE CASE GASKETENGINE CASE GASKET
-
140472042175 CIRCLIP DIN0472-42X1,75CIRCLIP DIN0472-42X1,75
-
1555430059100 CIRCLIP DIN0472-28X1,2CIRCLIP DIN0472-28X1,2
-
170912060406 AH SCREW DIN0912 M 6X40AH SCREW DIN0912 M 6X40
-
1955430090000 BRACKET FOR BLEEDING TUBEBRACKET FOR BLEEDING TUBE
-
9955430199000 GASKET SETGASKET SET
