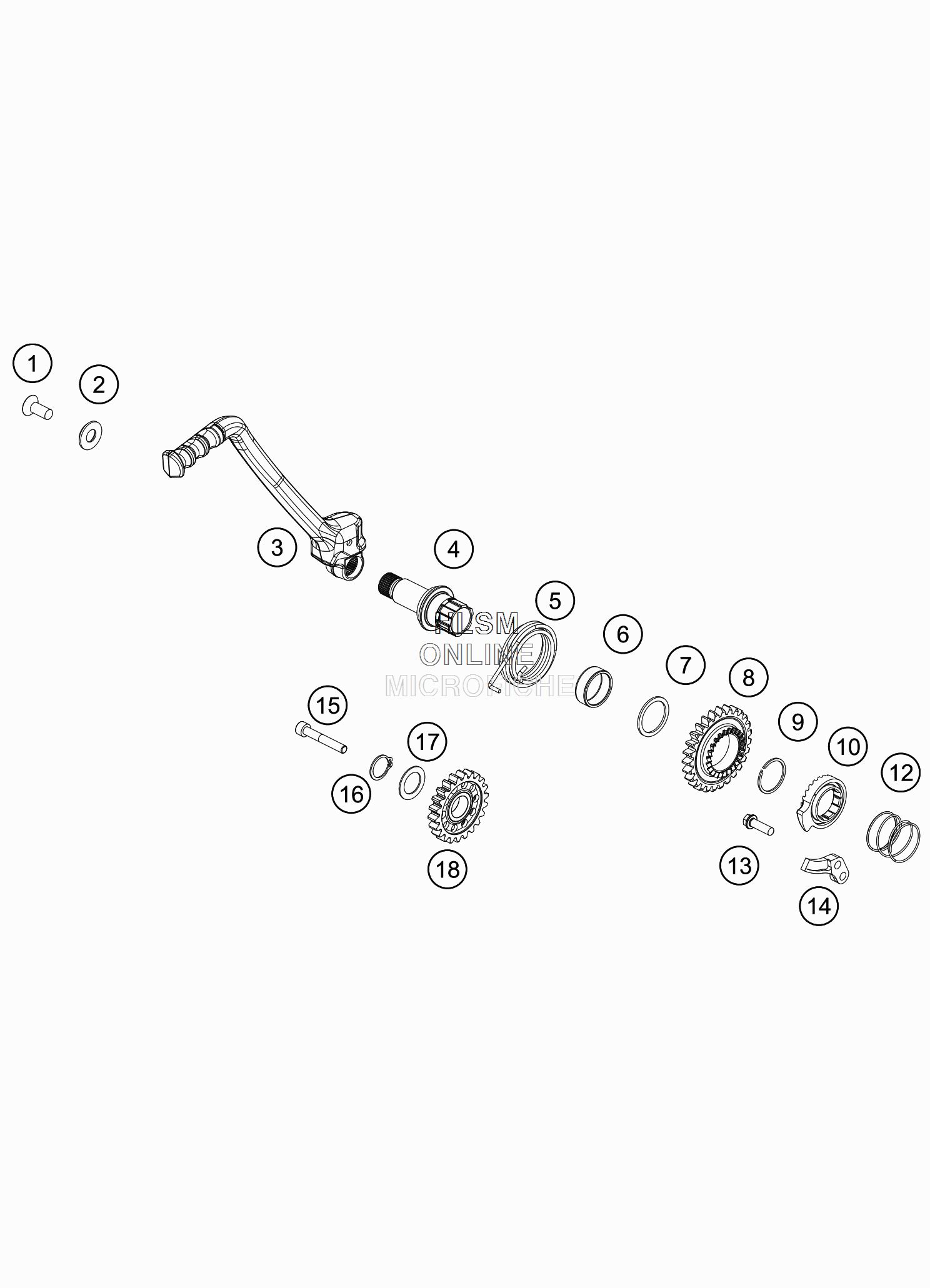

KICK STARTER для Ktm 250 SX - 2018 года выпуска
-
№АртикулНазвание
-
10019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
254633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
379233070044 KICK ST AR TER CPL.KICK ST AR TER CPL.
-
479233050000 KICK STARTER SHAFTKICK STARTER SHAFT
-
550433054100 KICK ST AR TER SPRINGKICK ST AR TER SPRING
-
60405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
754833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
879233051027 KICK ST AR TER WHEEL 27ZKICK ST AR TER WHEEL 27Z
-
90417025000 CIRCLIP SW25CIRCLIP SW25
-
1050433052000 KICK STARTER RATCHETKICK STARTER RATCHET
-
1258033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
130025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1459033069000 BUMP PARTBUMP PART
-
150912060406 AH SCREW DIN0912 M 6X40AH SCREW DIN0912 M 6X40
-
160471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
1750333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
1879233053000 KICKSTART IDLER CPL.KICKSTART IDLER CPL.
