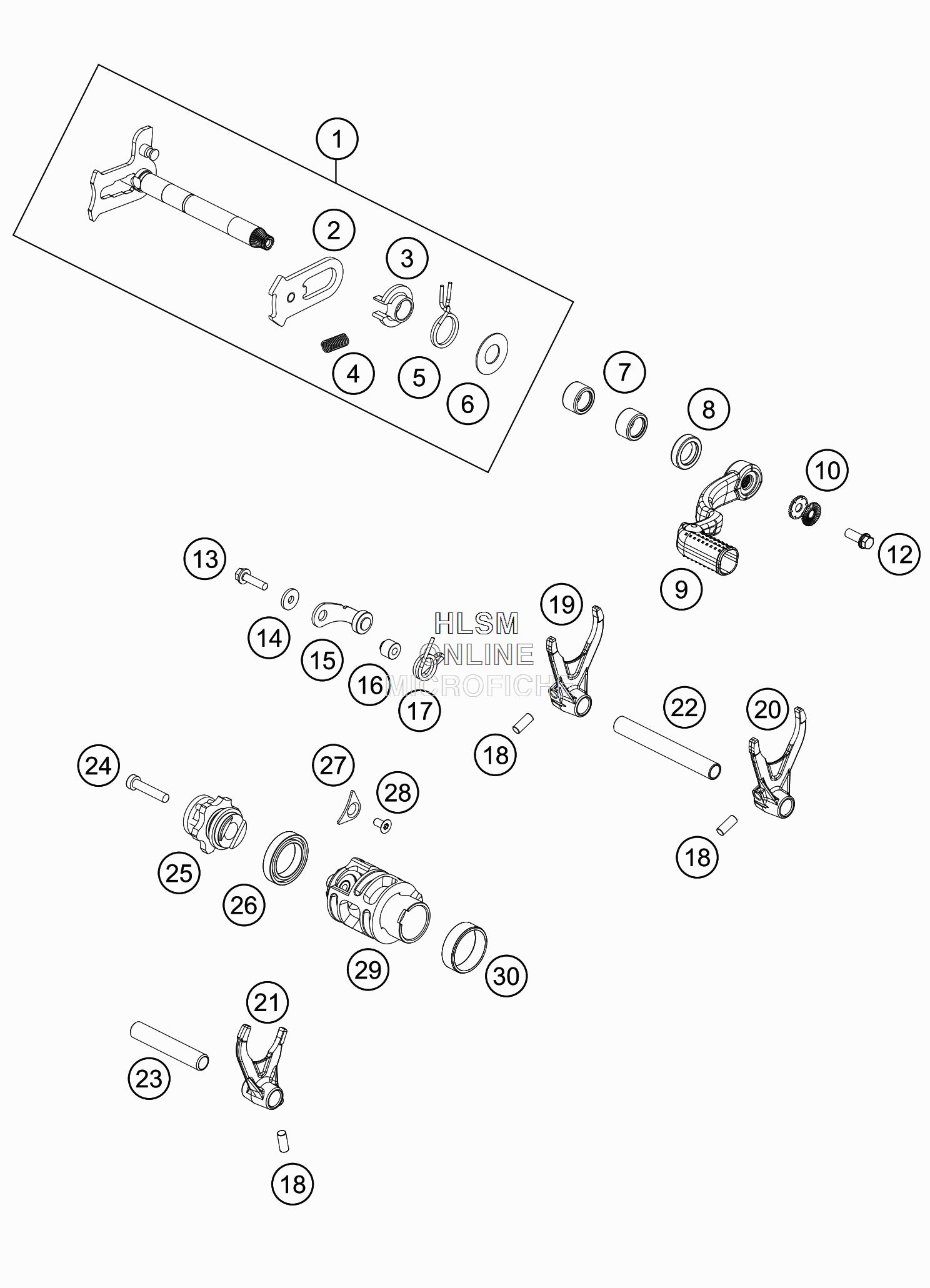

SHIFTING MECHANISM для Ktm 250 SX - 2018 года выпуска
-
№АртикулНазвание
-
155434005133 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
279234008144 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
354634020000 SPRING GUIDESPRING GUIDE
-
456534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
554834014000 RETURN SPRINGRETURN SPRING
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
80760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
955434031000 SHIFTING LEVER CPL.SHIFTING LEVER CPL.
-
1050233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
120024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
-
130025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
140349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
1555434024000 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1654634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
1755434023100 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
180402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
1979234003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
2079234002000 SHIFTING FORK 2ND GEARSHIFTING FORK 2ND GEAR
-
2179234001000 SHIFTING FORK 4TH/5TH GEARSHIFTING FORK 4TH/5TH GEAR
-
2277034019000 SHIFTING MAIN L=93MMSHIFTING MAIN L=93MM
-
2354834019000 SHIFT. RAIL MAIN SHAFT 250/300SHIFT. RAIL MAIN SHAFT 250/300
-
240984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
2555434015000 GEARSHIFT CPL.GEARSHIFT CPL.
-
260625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
280019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
2979234012000 SHIFT ROLLER 5GSHIFT ROLLER 5G
-
3079234012010 FRICTION BEARING CONTROLLERFRICTION BEARING CONTROLLER
