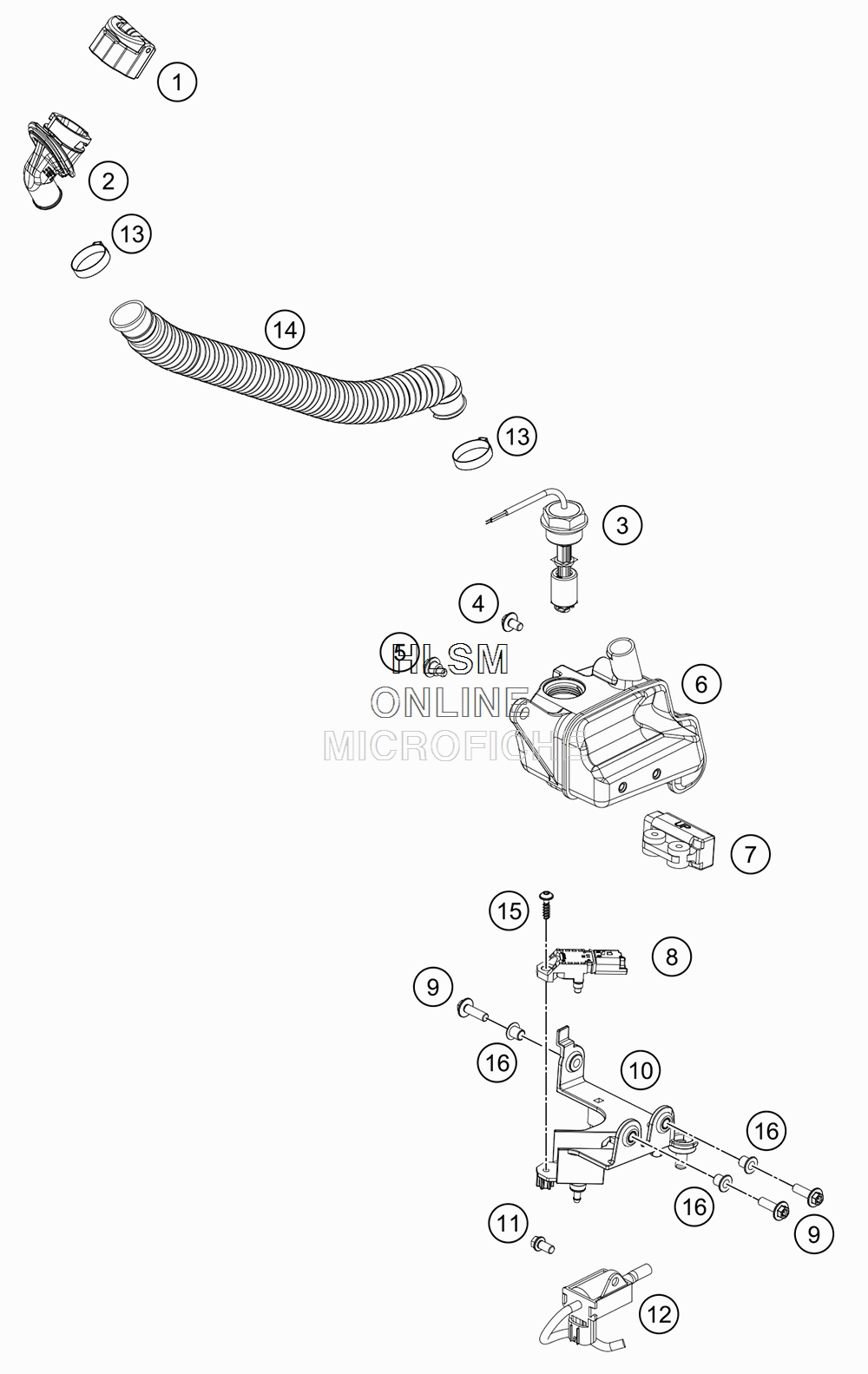

LUBRICATING SYSTEM для Ktm 250 XCWTPI - 2018 года выпуска
-
№АртикулНазвание
-
155638070033 OILFILLERCAP CPL.OILFILLERCAP CPL.
-
255638061020 FILLER PLUG OIL TANKFILLER PLUG OIL TANK
-
355638062000 OIL LEVEL SENSOROIL LEVEL SENSOR
-
40024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
559001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
655638061100 OIL TANKOIL TANK
-
761041088000 ROLLOVER SENSORROLLOVER SENSOR
-
855641075000 CRANKCASE PRESURE SENSOR CCPCRANKCASE PRESURE SENSOR CCP
-
90024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1055638061040 OIL PUMP SUPPORTOIL PUMP SUPPORT
-
110025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1255638064000 OIL PUMPOIL PUMP
-
1300050271708 VARIABLE ONE-EAR CLAMP 27,1MMVARIABLE ONE-EAR CLAMP 27,1MM
-
1300050271708 VARIABLE ONE-EAR CLAMP 27,1MMVARIABLE ONE-EAR CLAMP 27,1MM
-
150081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
1658314060050 SPACER BUSH. F. SPEEDOMET.B.SPACER BUSH. F. SPEEDOMET.B.
-
1755538087000 CLAMP 2CLAMP 2
-
1855538086000 CLAMP 1CLAMP 1
-
1955538083044 TUBE SET, OIL TANKTUBE SET, OIL TANK
