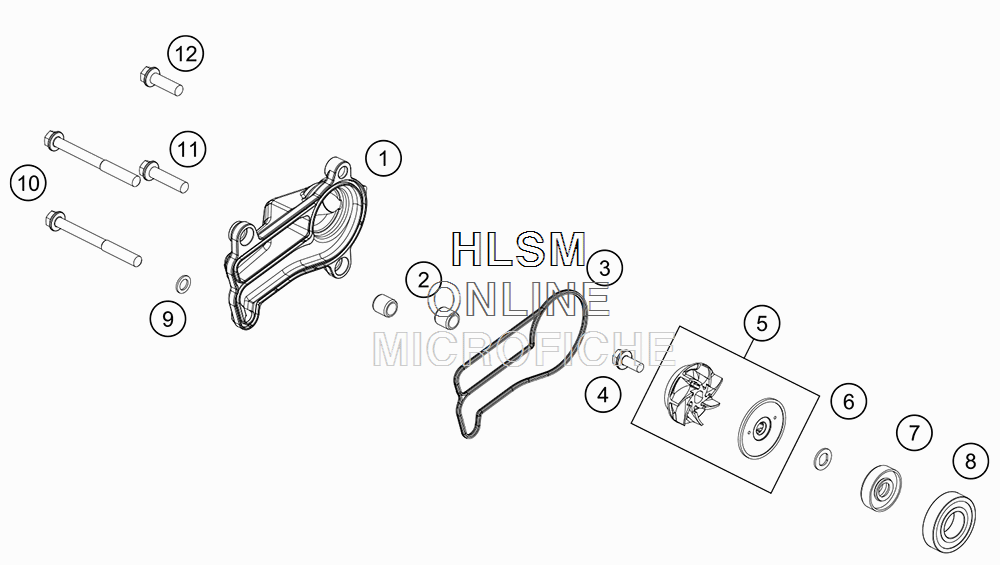

WATER PUMP для Ktm 250 XCWTPI - 2018 года выпуска
-
№АртикулНазвание
-
155435052000 WATER PUMP COVERWATER PUMP COVER
-
249030090100 DOWEL 9,8 X7X10DOWEL 9,8 X7X10
-
355435053000 GASKET W A TER PUMP COVERGASKET W A TER PUMP COVER
-
40014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
579235055044 WATER PUMP WHEEL CPL.WATER PUMP WHEEL CPL.
-
650435049000 PREFORMED WASHERPREFORMED WASHER
-
70760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
80625160020 BALL BEARING 16002 C3BALL BEARING 16002 C3
-
90603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
100025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
110025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
120025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
