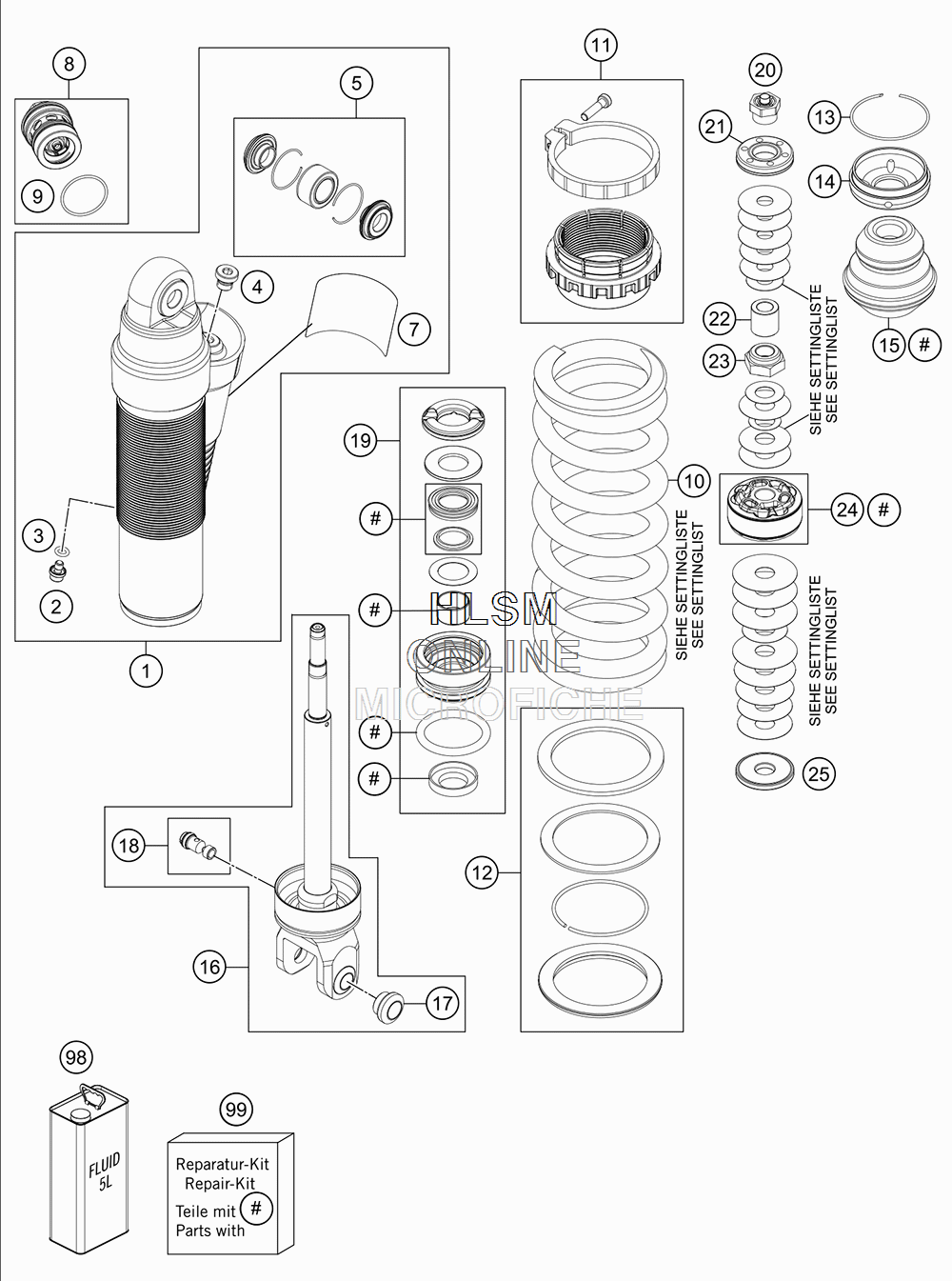

SHOCK ABSORBER DISASSEMBLED для Ktm 250 XCWTPI - 2018 года выпуска
-
№АртикулНазвание
-
146181242S1 MONOSHOCK CASE M53X1 INC PIPEMONOSHOCK CASE M53X1 INC PIPE
-
236120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
346810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
5RP10011 BEARING KIT KGW D12BEARING KIT KGW D12
-
752000143 STICKER WP W ARNING 65X40STICKER WP W ARNING 65X40
-
850181101S5 DCC PDS 2017 CPL.DCC PDS 2017 CPL.
-
950180217 O-RING 27X1,5 VITONO-RING 27X1,5 VITON
-
1091010348 SPRING 57-60-63 225MM WHITESPRING 57-60-63 225MM WHITE
-
1091010349 SPRING 60-63-66 225MM WHITESPRING 60-63-66 225MM WHITE
-
1091010350 SHOCK SPRING L= 225 63-66-69 N/MM WHITESHOCK SPRING L= 225 63-66-69 N/MM WHITE
-
1091010351 SPRING 66-69-72 225MM WHITESPRING 66-69-72 225MM WHITE
-
1091010353 SPRING 54-57-60 225MM WHITESPRING 54-57-60 225MM WHITE
-
1146181228S SPRING SUPPOR T PLASTIC 46 CPL.SPRING SUPPOR T PLASTIC 46 CPL.
-
12RP10005 SPRING CUP SET PDS 17SPRING CUP SET PDS 17
-
1346810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
1446180338 CAP D=46 H=9,5CAP D=46 H=9,5
-
1546181237 BUMP RUBBER Ш58 Ш17 H55 PDSBUMP RUBBER Ш58 Ш17 H55 PDS
-
1646181236S1 MONOSHOCK LOWER PART CPL.MONOSHOCK LOWER PART CPL.
-
1750180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
1850181094S ADJUSTING SCREW M8X0,5 CPL.ADJUSTING SCREW M8X0,5 CPL.
-
1946180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
2046181183S NUT M10X1 PDSNUT M10X1 PDS
-
2146181184 PISTON Ш35,5 PDSPISTON Ш35,5 PDS
-
2246181025 SANDWICH BUSH 10X17X17SANDWICH BUSH 10X17X17
-
2346810474 PISTON ROD NUTPISTON ROD NUT
-
2446181153ES PISTON CPL. Ш12 Ш42 BLEED HOLEPISTON CPL. Ш12 Ш42 BLEED HOLE
-
2546181194 REBOUND W ASHER 12X36 T4 H0REBOUND W ASHER 12X36 T4 H0
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99RP10004 REVISION KIT MONOSHOCK MINIREVISION KIT MONOSHOCK MINI
