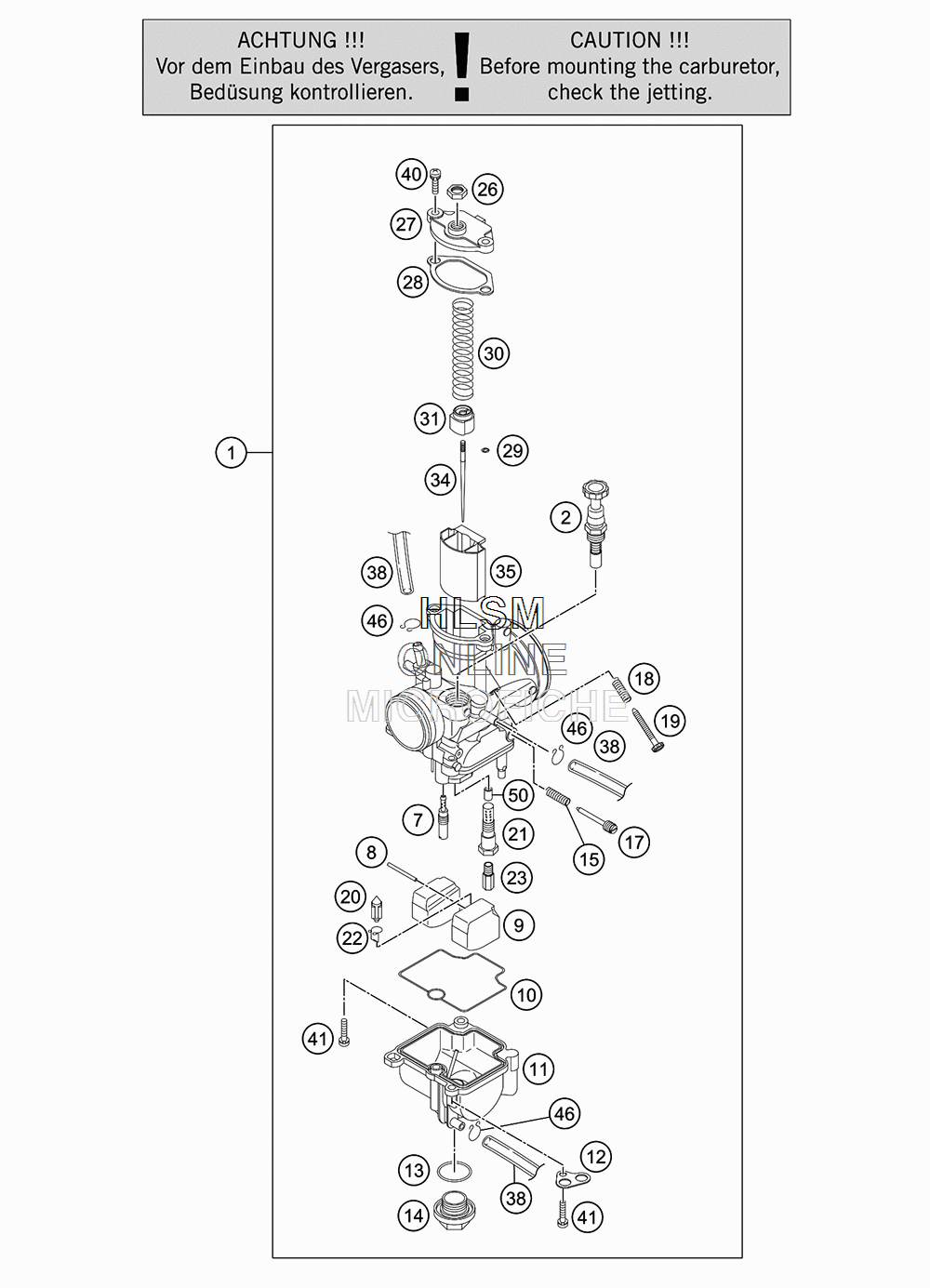

CARBURETOR для Ktm 85 SX - 2018 года выпуска
-
№АртикулНазвание
-
147231001044 CARBURETOR KEIHIN PWK 28 18CARBURETOR KEIHIN PWK 28 18
-
254631245000 STARTER PISTON CPL.STARTER PISTON CPL.
-
754531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
754531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
754531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
754531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
754531607050 IDLE JET 50 KEIHINIDLE JET 50 KEIHIN
-
754531607052 IDLE JET 52 KEIHINIDLE JET 52 KEIHIN
-
857331008000 ARM PIN FLOATARM PIN FLOAT
-
947031009000 FLOAT CPL. PWK28FLOAT CPL. PWK28
-
1047031010000 FLOAT CHAMBER GASKETFLOAT CHAMBER GASKET
-
1172531011000 FLOAT CHAMBER COMP.FLOAT CHAMBER COMP.
-
1254531612100 RETAINING PLATE FOR BLEEDERRETAINING PLATE FOR BLEEDER
-
130770180230 O-RING 18,00X2,30 NBR 70O-RING 18,00X2,30 NBR 70
-
1454531699000 PLUG M 18X1PLUG M 18X1
-
1554531615000 SPRING FOR ADJUSTMENT SCREWSPRING FOR ADJUSTMENT SCREW
-
1754531617000 ADJUSTMENT SCREWADJUSTMENT SCREW
-
1854631118000 SPRINGSPRING
-
1954631219100 ADJUSTMENT SCREW M 5ADJUSTMENT SCREW M 5
-
2047031020000 FLOAT NEEDLE CPL.FLOAT NEEDLE CPL.
-
2172531022000 NEEDLE JET HOLDERNEEDLE JET HOLDER
-
2254531621000 CLAMPCLAMP
-
2354531623138 MAIN JET 138 KEIHINMAIN JET 138 KEIHIN
-
2354531623140 MAIN JET GR 140MAIN JET GR 140
-
2354531623142 MAIN JET 142 KEIHINMAIN JET 142 KEIHIN
-
2354531623145 MAIN JET 145 KEIHINMAIN JET 145 KEIHIN
-
2354531623148 MAIN JET 148 KEIHINMAIN JET 148 KEIHIN
-
2354531623150 MAIN JET 150 KEIHINMAIN JET 150 KEIHIN
-
2354531623152 MAIN JET 152 KEIHINMAIN JET 152 KEIHIN
-
2652031126000 HEXAGON NUT M 6X0,75 DIN0439HEXAGON NUT M 6X0,75 DIN0439
-
2747031027000 CARBURETOR COVER PWK28CARBURETOR COVER PWK28
-
2847031028000 CARBURETOR COVER GASKET PWK28CARBURETOR COVER GASKET PWK28
-
2954531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
3047031030000 THROTTLE VALVE SPRINGTHROTTLE VALVE SPRING
-
3147031031000 SPRING CAPSPRING CAP
-
3447231034000 JET NEEDLE KEIHIN NRKAJET NEEDLE KEIHIN NRKA
-
3447231034100 JET NEEDLE KEIHIN NRKBJET NEEDLE KEIHIN NRKB
-
3447231034200 JET NEEDLE KEIHIN NRKCJET NEEDLE KEIHIN NRKC
-
3447231034300 JET NEEDLE KEIHIN NRKDJET NEEDLE KEIHIN NRKD
-
3447231034400 JET NEEDLE KEIHIN NRKEJET NEEDLE KEIHIN NRKE
-
3447231134000 JET NEEDLE KEIHIN NRJAJET NEEDLE KEIHIN NRJA
-
3447231134100 JET NEEDLE KEIHIN NRJBJET NEEDLE KEIHIN NRJB
-
3447231134200 JET NEEDLE KEIHIN NRJCJET NEEDLE KEIHIN NRJC
-
3447231134300 JET NEEDLE KEIHIN NRJDJET NEEDLE KEIHIN NRJD
-
3447231134400 JET NEEDLE KEIHIN NRJEJET NEEDLE KEIHIN NRJE
-
3454531636012 JET NEEDLE KEIHIN NRJCJET NEEDLE KEIHIN NRJC
-
3547231035000 THROTTLE V ALVE "3.0" KEIHINTHROTTLE V ALVE "3.0" KEIHIN
-
3831007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
400016040163 HH COLLAR SCREW M 4X16 WS=6HH COLLAR SCREW M 4X16 WS=6
-
410985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
4654531696000 CLAMP 6 MMCLAMP 6 MM
-
5047231021000 NEEDLE JETNEEDLE JET
