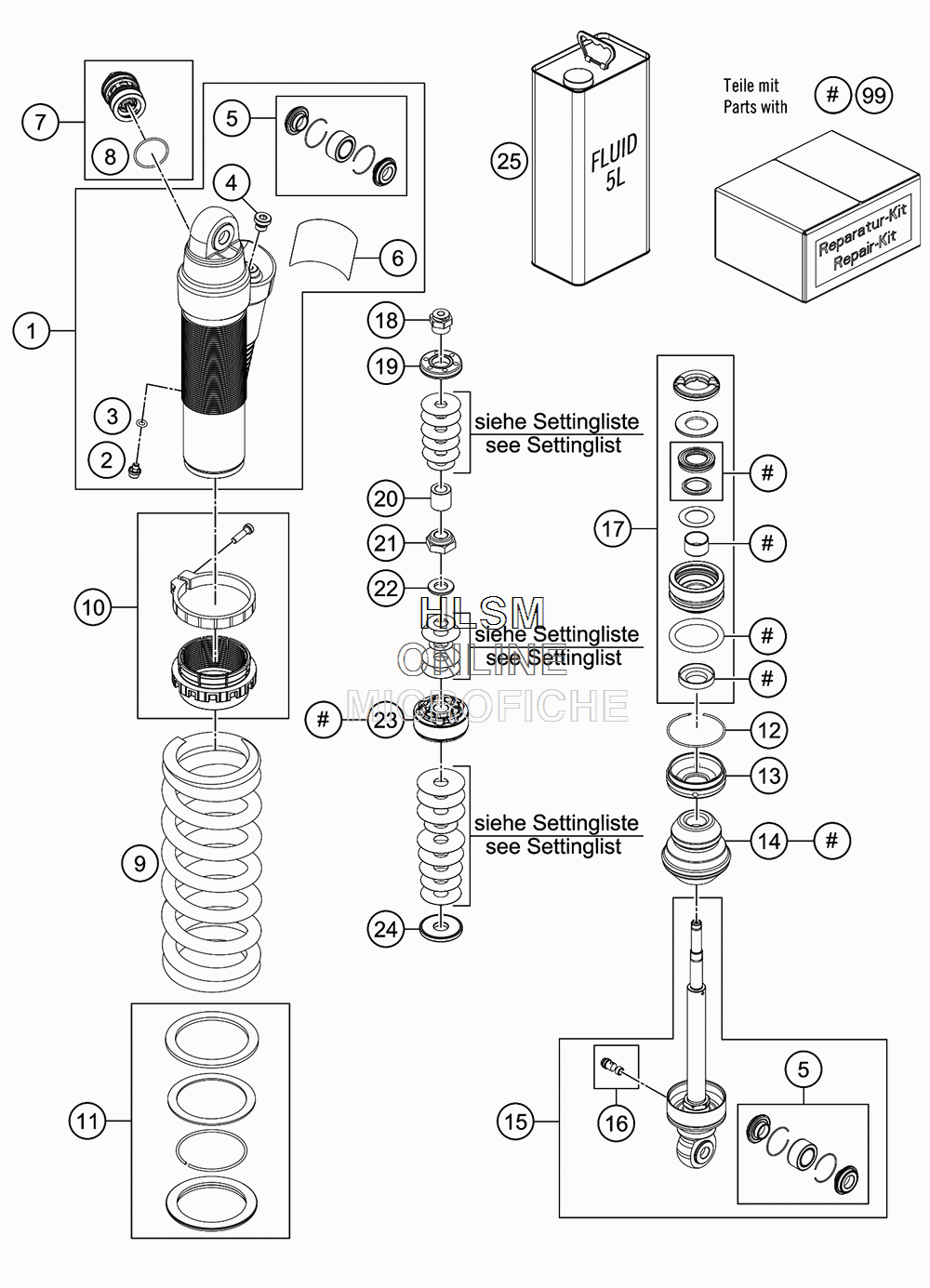

SHOCK ABSORBER DISASSEMBLED для Ktm 85 SX - 2018 года выпуска
-
№АртикулНазвание
-
146181242S3 MONOSHOCK CASE M53X1 WITH PIPE CPL.MONOSHOCK CASE M53X1 WITH PIPE CPL.
-
236120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
346810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
5RP10011 BEARING KIT KGW D12BEARING KIT KGW D12
-
652000143 STICKER WP WARNING 65X40STICKER WP WARNING 65X40
-
750181101S22 DCC CPL.DCC CPL.
-
850180217 O-RING 27X1,5 VITONO-RING 27X1,5 VITON
-
991010271S SPRING (59) 215 30 N/MMSPRING (59) 215 30 N/MM
-
991010240S SPRING (59) 215 35 N/MM D=9,25SPRING (59) 215 35 N/MM D=9,25
-
991010161S SPRING (59) 215 40 N/MM D=9,5SPRING (59) 215 40 N/MM D=9,5
-
991010201 SPRING (59) 215 45 N/MM D=10SPRING (59) 215 45 N/MM D=10
-
991010080 SPRING L215MM 50N/MM INSIDE Ш59MMSPRING L215MM 50N/MM INSIDE Ш59MM
-
1046181228S SPRING SUPPOR T PLASTIC 46 CPL.SPRING SUPPOR T PLASTIC 46 CPL.
-
11RP10005 SPRING CUP SET PDSSPRING CUP SET PDS
-
1246810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
1346180338 CAP D=46 H=9,5CAP D=46 H=9,5
-
1446181237 BUMP RUBBER Ш58 Ш17 H55 PDSBUMP RUBBER Ш58 Ш17 H55 PDS
-
1546181301S1 SHOCK ABSORBER BOT. CPL.SHOCK ABSORBER BOT. CPL.
-
1650181094S ADJUSTING SCREW M8X0,5 CPL.ADJUSTING SCREW M8X0,5 CPL.
-
1746180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
1846181183S NUT M10X1 PDSNUT M10X1 PDS
-
1946181184 PISTON Ш35,5 PDSPISTON Ш35,5 PDS
-
2046181249 COMPOSITE BUSH 10X17X23COMPOSITE BUSH 10X17X23
-
2146810474 PISTON ROD NUTPISTON ROD NUT
-
2246811258 RING 12X24X2,5RING 12X24X2,5
-
2346181153ES PISTON CPL. Ш12 Ш42 BLEED HOLEPISTON CPL. Ш12 Ш42 BLEED HOLE
-
2446181194 REBOUND W ASHER 12X36 T4 H0REBOUND W ASHER 12X36 T4 H0
-
2550180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99RP10004 REVISION KIT MONOSHOCKREVISION KIT MONOSHOCK
