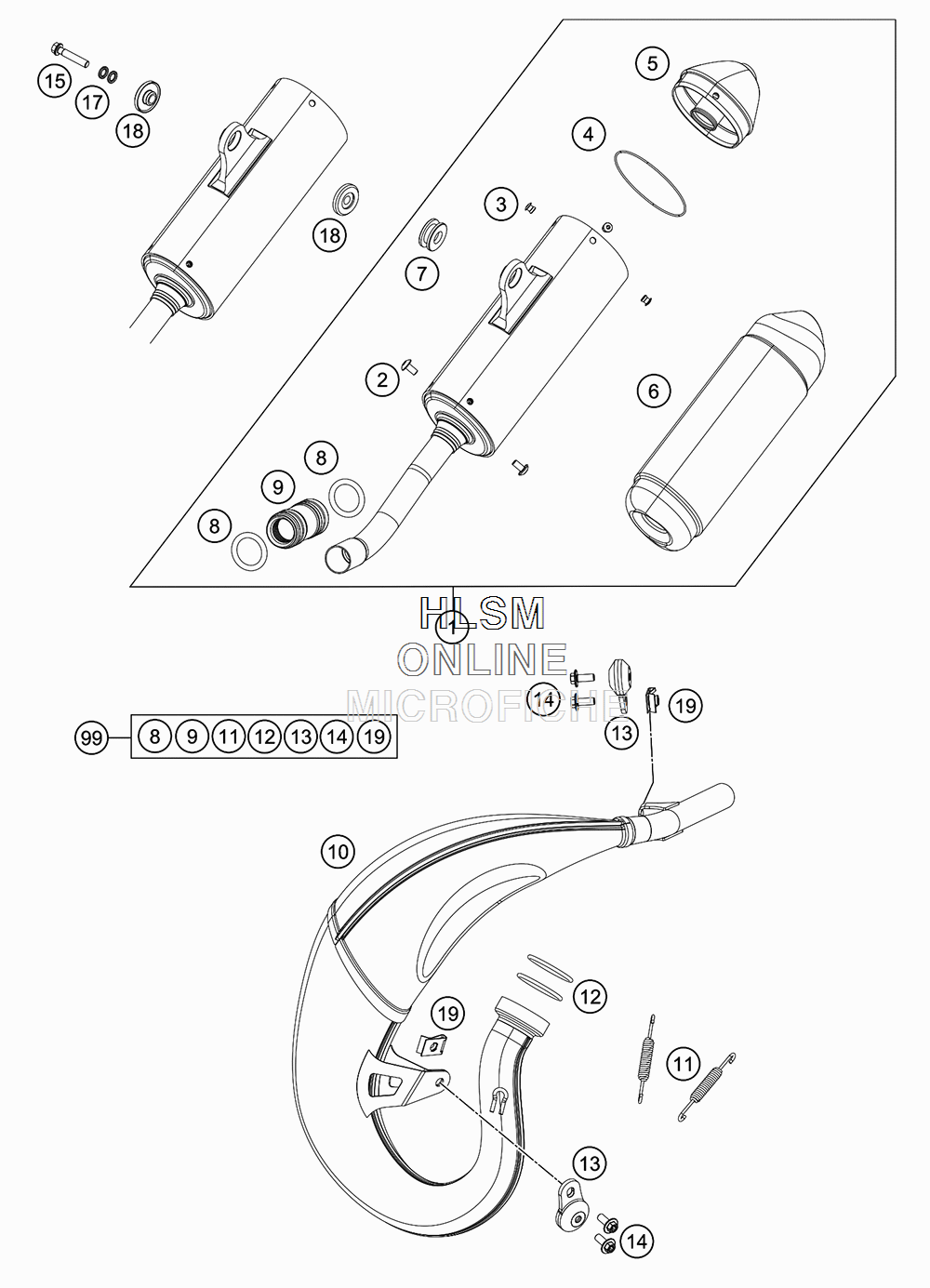

EXHAUST SYSTEM для Ktm 85 SX - 2018 года выпуска
-
№АртикулНазвание
-
147205079000 SILENCERSILENCER
-
278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
30011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
40770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
547205079060 ENDCAP CPL.ENDCAP CPL.
-
647205078165 STUFFING YARN PACKAGE 165GSTUFFING YARN PACKAGE 165G
-
777205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
847205058000 HOSE SPRINGHOSE SPRING
-
947205057000 HOSEHOSE
-
1150305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
120770380030 O-RING 38,00X3,00 VITONO-RING 38,00X3,00 VITON
-
1350305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
140024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
150025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1750233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
1877205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
1954603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
9900050000812 EXHAUST HARDWARE KITEXHAUST HARDWARE KIT
