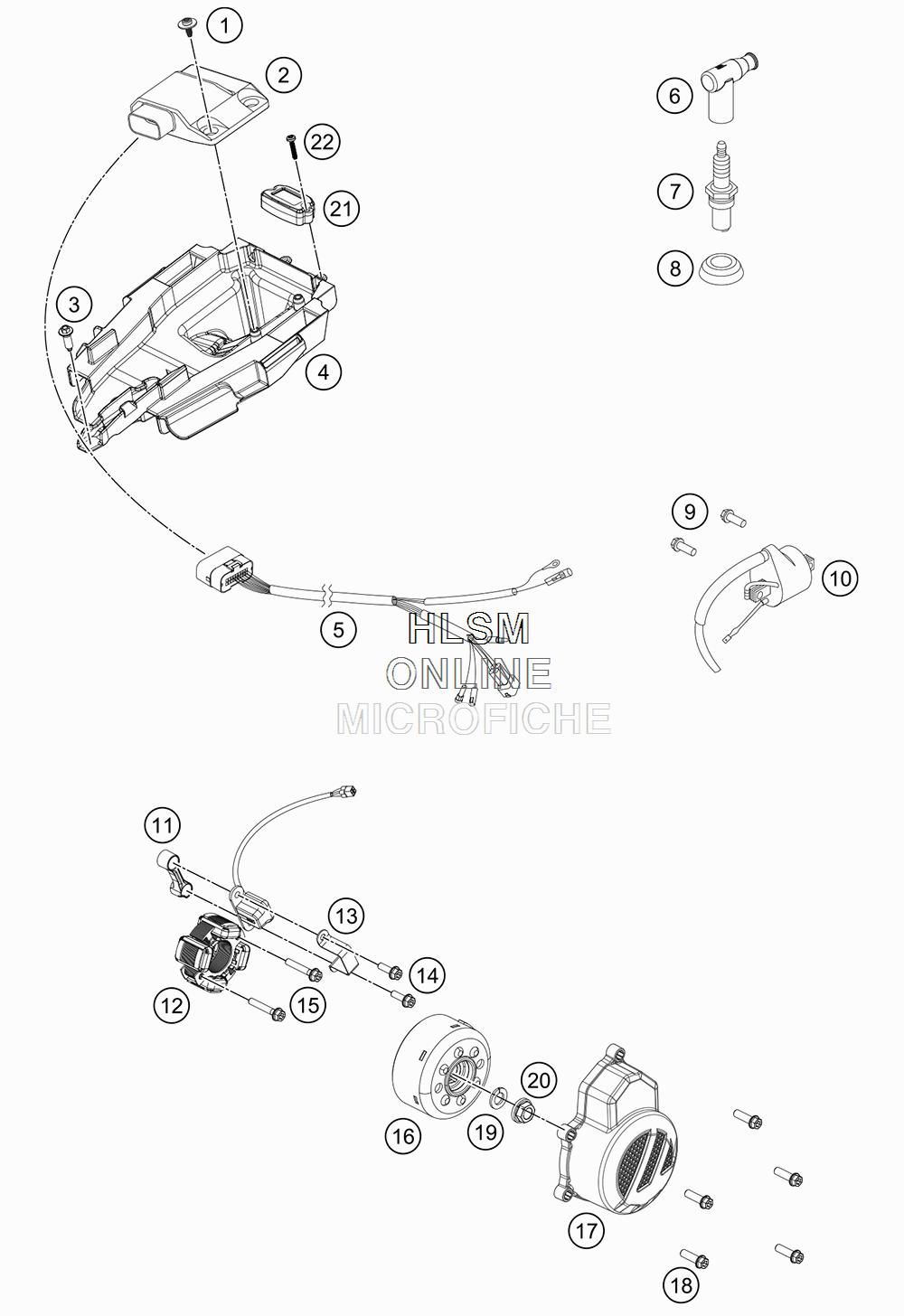

IGNITION SYSTEM для Ktm 85SX 1714 - 2019 года выпуска
-
№АртикулНазвание
-
10081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
247239031000 DASH BOARD BOX 85 SXDASH BOARD BOX 85 SX
-
30017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
447211094000 ELECTRIC COMPARTMENTELECTRIC COMPARTMENT
-
554839032200 WIRING HARNESS FOR CDI 2-ST.07WIRING HARNESS FOR CDI 2-ST.07
-
647039090000 SPARK PLUG CAP NGK REINFORC.04SPARK PLUG CAP NGK REINFORC.04
-
751539093000 SPARK PLUG BR9ECMVXSPARK PLUG BR9ECMVX
-
850439091000 SEALING SLEEVESEALING SLEEVE
-
90026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
1059039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
1150439013000 DISTANCE UNITDISTANCE UNIT
-
1250439004000 STATORSTATOR
-
1350439004010 PICKUP BRACKETPICKUP BRACKET
-
140014050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
150912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
1650439005000 ROTORROTOR
-
1747230002000 IGNITION COVERIGNITION COVER
-
180025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1950230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2049030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
2178112020050 HOUR METERHOUR METER
-
220081035183 EJOT DELTA PT SCREW 35X18EJOT DELTA PT SCREW 35X18
