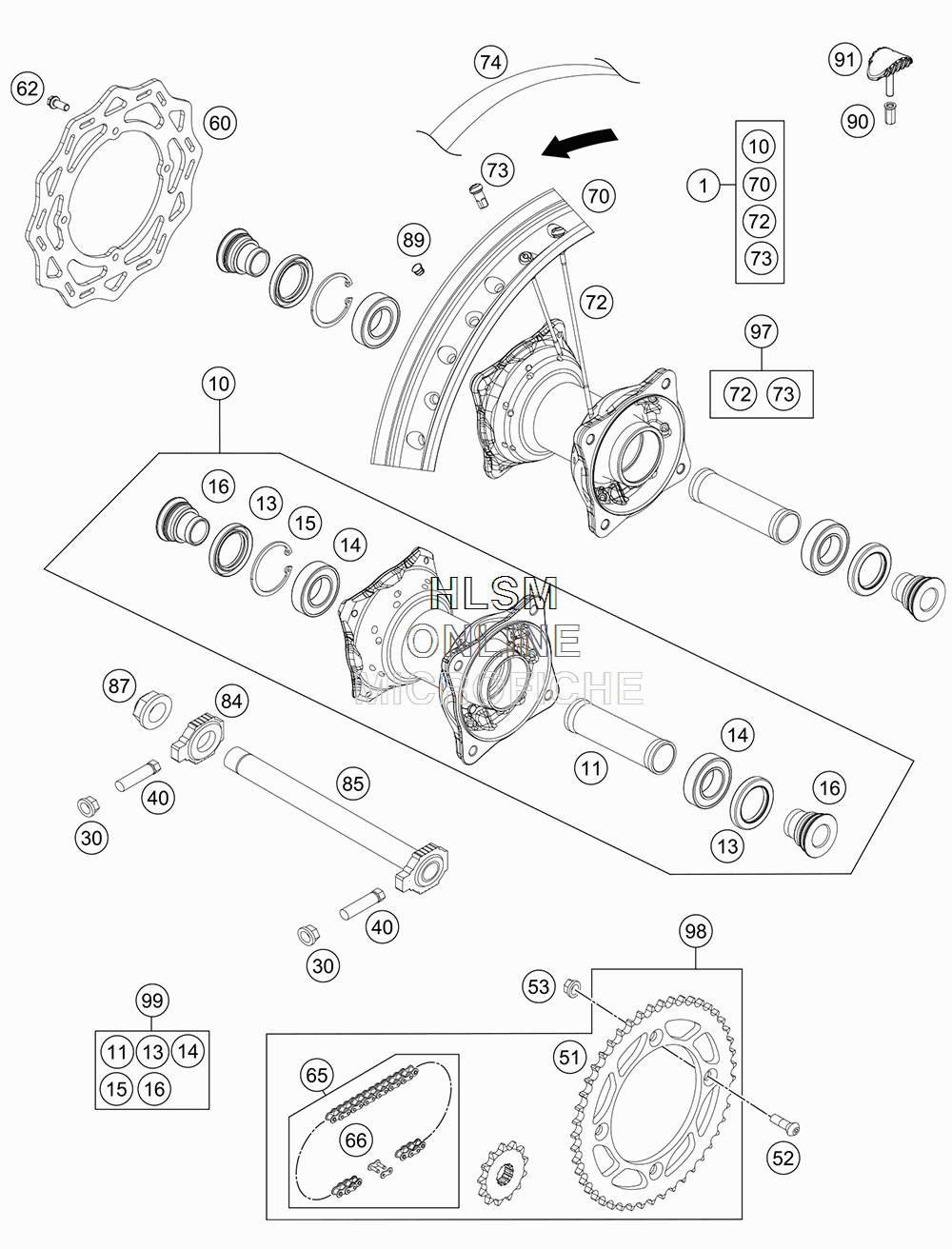

REAR WHEEL для Ktm 85SX 1714 - 2019 года выпуска
-
№АртикулНазвание
-
14711000184430 REAR WHEEL CMPL. 14" KTM 2019"REAR WHEEL CMPL. 14" KTM 2019"
-
1070010010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
1170010011000 BEAR.SPACER TUBE ґ12BEAR.SPACER TUBE ґ12
-
130760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
140625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
150472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
1678010016000 BUSHING FOR HUBBUSHING FOR HUB
-
3046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
4050203030090 HH SCREW M8X40HH SCREW M8X40
-
5147210051044 SPROCKET 44-TSPROCKET 44-T
-
5147210051045 SPROCKET 45-TSPROCKET 45-T
-
5147210051046 SPROCKET 46-TSPROCKET 46-T
-
5147210051047 SPROCKET 47-TSPROCKET 47-T
-
5147210051048 SPROCKET 48-TSPROCKET 48-T
-
5147210051049 SPROCKET 49-TSPROCKET 49-T
-
5147210051050 SPROCKET 50-TSPROCKET 50-T
-
5147210051051 SPROCKET 51-TSPROCKET 51-T
-
520019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
5306923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
6023610060000 REAR DISC D=210MMREAR DISC D=210MM
-
6259009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
6547010165124 CHAIN 124 ROLLS 85 SXCHAIN 124 ROLLS 85 SX
-
6647010166000 CONNECTING LINK 85 SXCONNECTING LINK 85 SX
-
702351007040030 RIM BACK 14X1.60RIM BACK 14X1.60
-
724711007114730 SPOKE M4,5X147-14" BLACKSPOKE M4,5X147-14" BLACK
-
7379109072000 SPOKE NIPPLE M4.5SPOKE NIPPLE M4.5
-
7447010073000 RIM BAND 85 SX 14"RIM BAND 85 SX 14"
-
8470010084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
8570010085044 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
8750310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9077110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9178109090000 RIM LOCK 1,60"RIM LOCK 1,60"
-
9700050000966 SPOKE KIT REAR ''14'' 85 SX 13SPOKE KIT REAR ''14'' 85 SX 13
-
9800050002091 DRIVETRAIN KIT 13T/46TDRIVETRAIN KIT 13T/46T
-
9970010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
