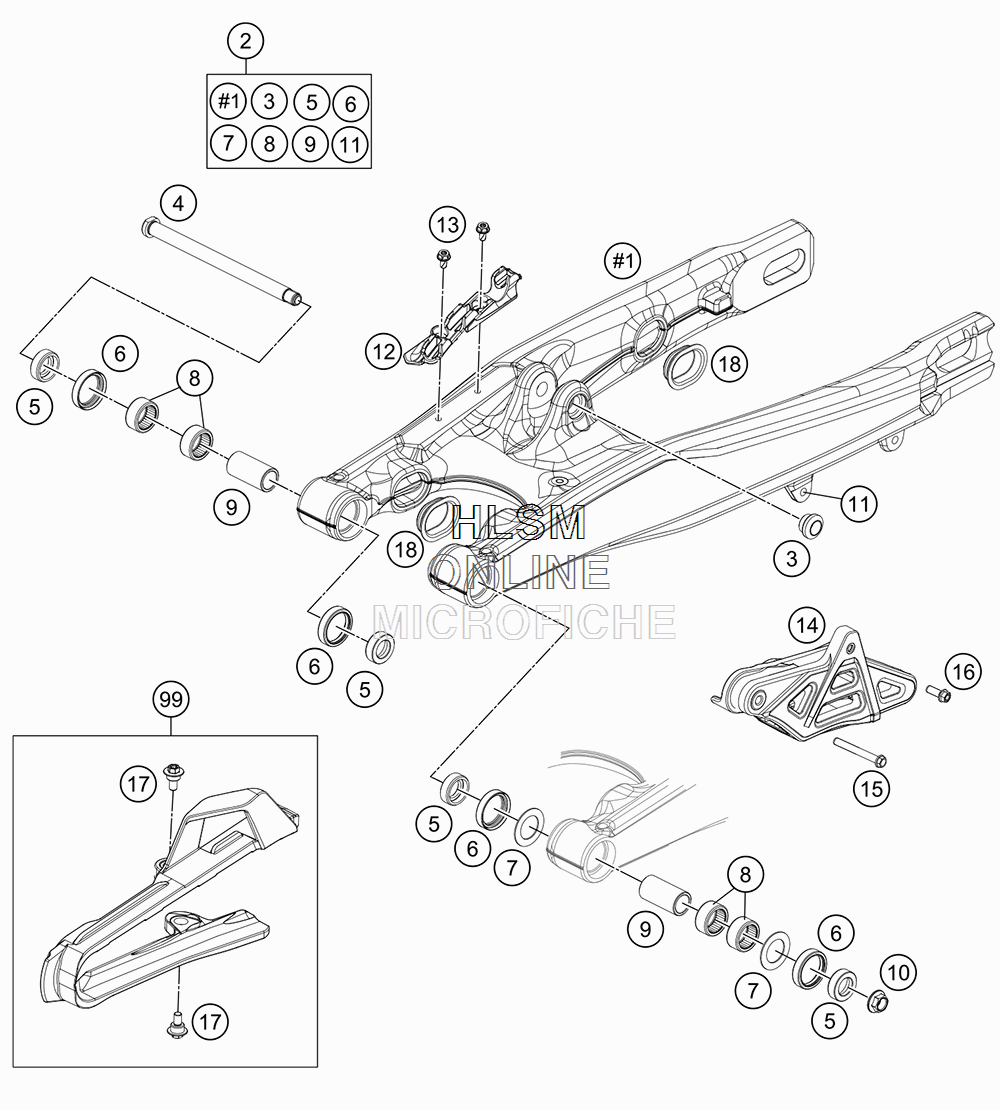

SWING ARM для Ktm 85SX 1714 - 2019 года выпуска
-
№АртикулНазвание
-
247104030144 SWING ARM CPL.SWING ARM CPL.
-
350180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
447104037000 SWING ARM BOLTSWING ARM BOLT
-
554603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
60760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
759033080000 SHIM 20X32X1SHIM 20X32X1
-
850203097000 NEEDLE BUSH HKNEEDLE BUSH HK
-
950203081700 BUSHING SLEEVE 15X20X38,75BUSHING SLEEVE 15X20X38,75
-
1077204087000 HEX NUT M14X1.5 SW17HEX NUT M14X1.5 SW17
-
1154603055051 PRESS IN NUT M6 STEEL ZINCPRESS IN NUT M6 STEEL ZINC
-
1247113047000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
130009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
1478104070100 CHAIN GUIDE EXCCHAIN GUIDE EXC
-
150025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
160025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1783008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
1877204041000 CLOSING COVERCLOSING COVER
-
9947104066010 CHAIN GUARD KITCHAIN GUARD KIT
