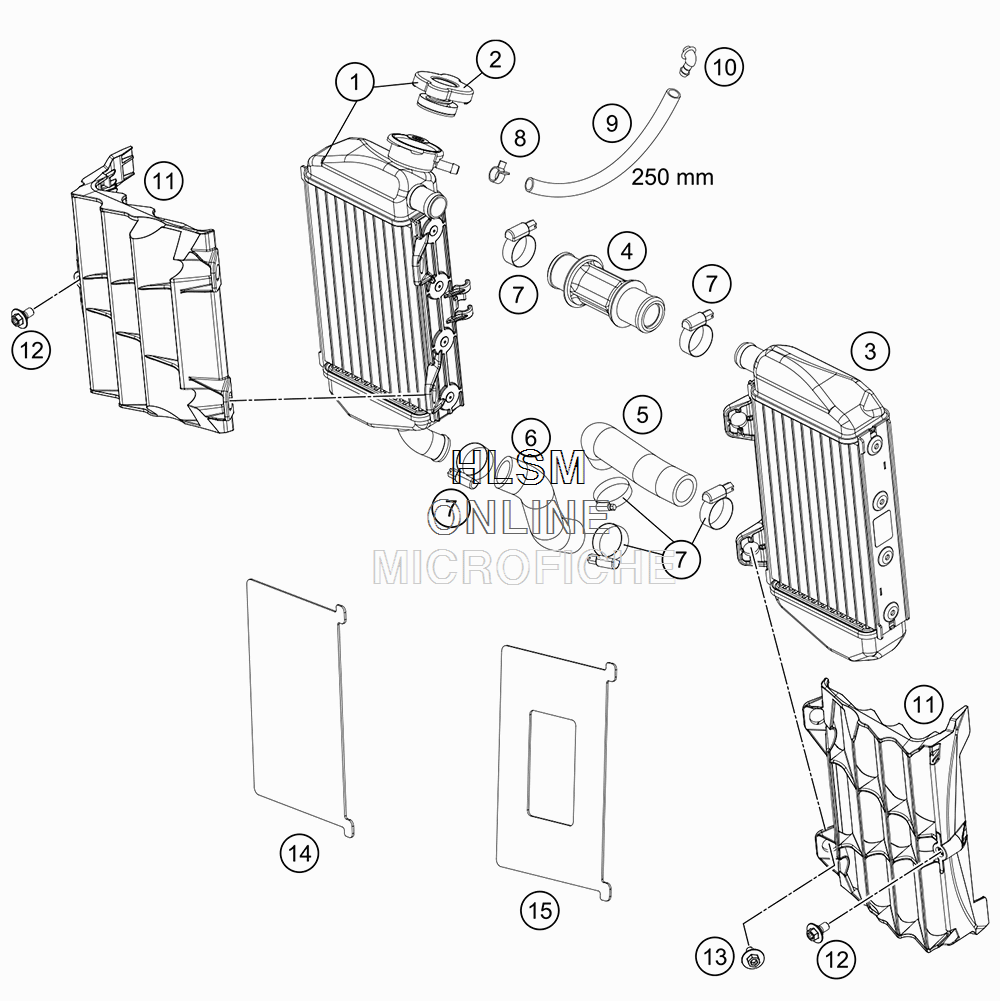

COOLING SYSTEM для Ktm 85SX 1916 - 2019 года выпуска
-
№АртикулНазвание
-
147235008000 RADIATOR RIGHTRADIATOR RIGHT
-
279035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
347235007000 RADIATOR LEFTRADIATOR LEFT
-
447235025000 RADIATOR CONNECTOR TOPRADIATOR CONNECTOR TOP
-
547235026000 PREFORMED HOSE ENGINEPREFORMED HOSE ENGINE
-
647235027000 PREFORMED HOSE WATER PUMPPREFORMED HOSE WATER PUMP
-
710001020300 HOSE CLAMP 18-29HOSE CLAMP 18-29
-
859007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
950335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
1051030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
1147235034000 RADIATOR PROTECTIONRADIATOR PROTECTION
-
120024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
130024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
1447235033000 RADIATOR COVER FULLRADIATOR COVER FULL
-
1547235033100 RADIATOR COVER HALFRADIATOR COVER HALF
